Cam gear bolt: 27
Rocker arm shaft pedestal bolts: 16
Rocker arm shaft end camp bolts(not needed but just in case you loosend them): 9
These number are in foot pounds!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| D16A6 Cam Install | ||||||||||||||||||
| Torque it on! | ||||||||||||||||||
|
||||||||||||||||||

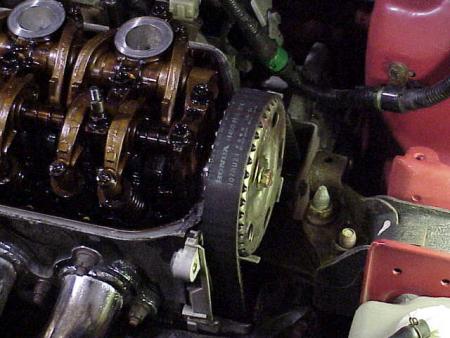

| Next I put the timing belt back on the EXACT place I took it off, this is crucial so mark a line on the belt and gear before you take it off! Tighten the bolt, but dont' torque it. | ||||||||||||||||||

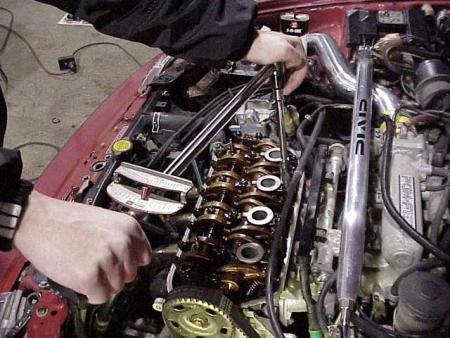

| Now it's time to torque all the bolts down to Honda specifications. The specifications are: Cam gear bolt: 27 Rocker arm shaft pedestal bolts: 16 Rocker arm shaft end camp bolts(not needed but just in case you loosend them): 9 These number are in foot pounds! |
||||||||||||||||||
|
||||||||||||||||||
| Using a torque wrench to tighten them correctly. | ||||||||||||||||||
| Next, we will finish it off with the lengthiest part of the whole thing, valve lash. | ||||||||||||||||||
