Cut two pieces of aluminum tubing to length that allows camera to sit in middle of seats and at about eye level.
Match drill the long piece of aluminum tubing to the Seat headrest bars, the holes should be as tight as possible to prevent wiggling of mount.
Cut a gusset and a strip of aluminum for attaching the shorter vertical bar to the longer horizontal bar. Trim gusset and bend strip to 90 degrees.
Clamp up parts and drill 1/8 rivet holes, making sure parts are aligned and square.
De-burr all parts, clamp parts together and install the rivets.
Attach the mini tripod with the hose clamps.
Use the Scotchbrite pad to scuff aluminum surface and give a nice finish.

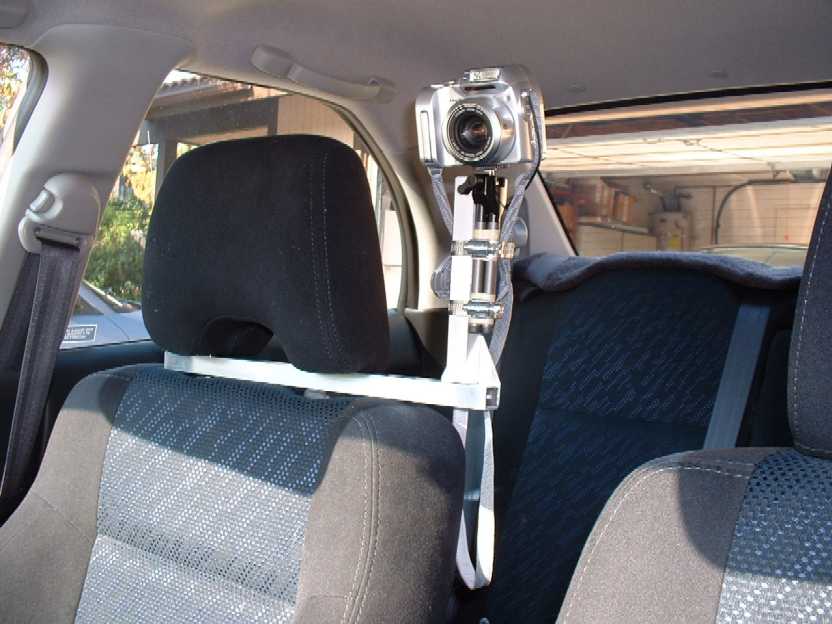

Install the camera mount on the Seat headrest bars, install the headrest, and mount your camera.
Next step, go racing��������.

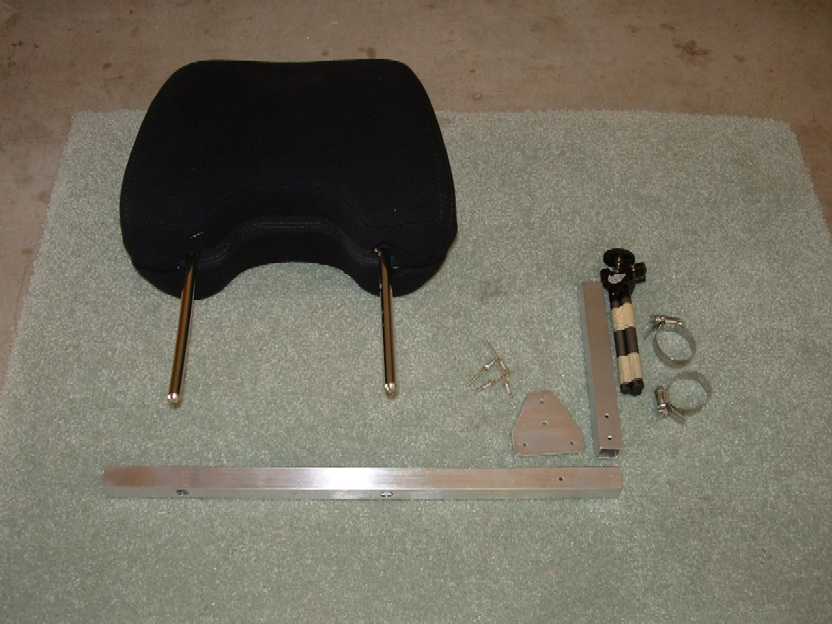

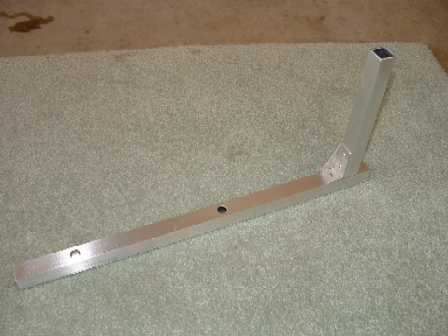

(Note: the 90 degree angle was added later because of camera bounce, so you wont see it in the original picture that shows all the parts).
This mount is not strong enough if there is significant possibility of a crash.
