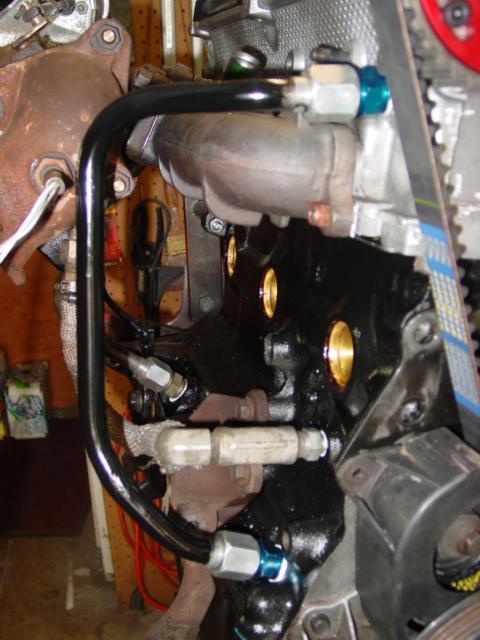

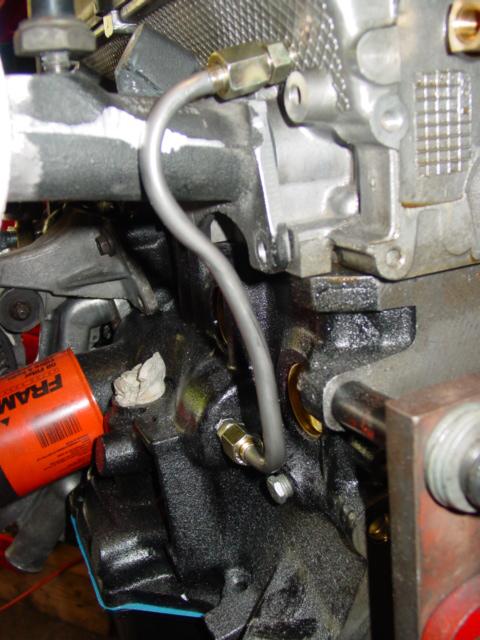

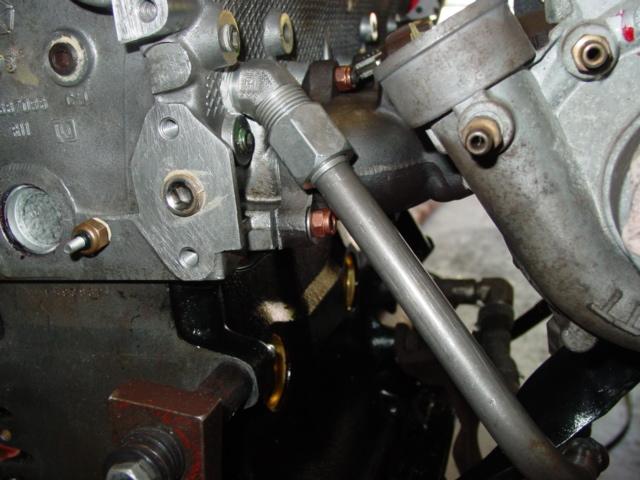

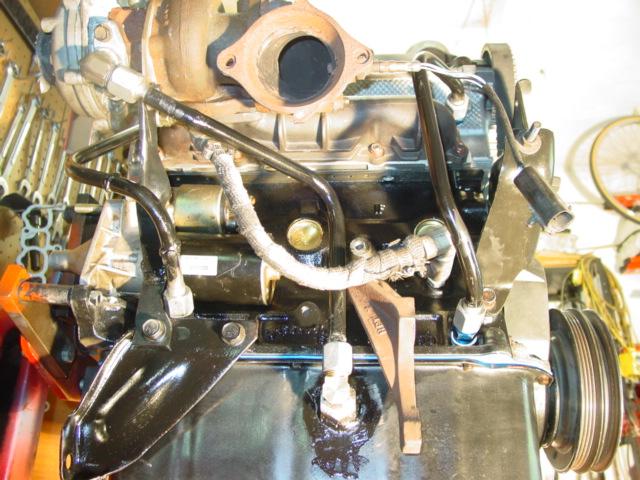

I chose a different route for draining the head. Instead of hoses I went with steel tubing with 37 degree flared fittings. Picture 1 is the tube on the front of the head. TheZF power steering pump is removed. And the engine is not tilted like it will be in the car. Picture 2 is the tube on the rear of the engine. This tubing now uses the original turbo drain port. Picture 3 is a shot of all 3 tubes. The third one being the drain from the turbo which now goes in the oil pan. Picture 4 is a pressure balance line I added to the front of the block. It is above the oil level in both the head and block.

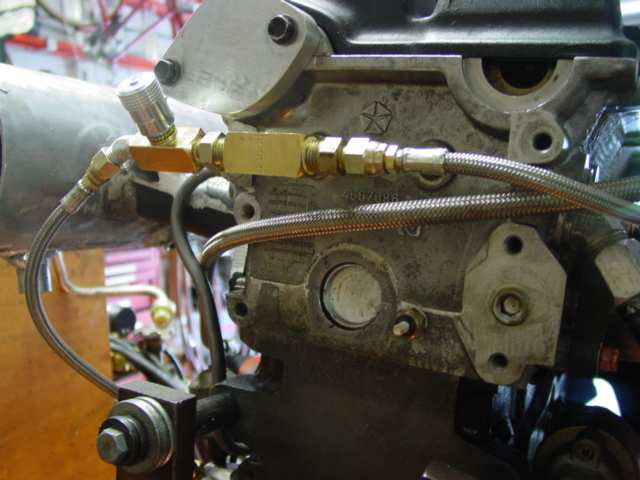

		Here is a shot of the oil supply to the head. I installed a Parker needle valve N200B in front of the tee. I can control the amount of oil to the head and turbo. The other stainless line in the picture is the coolant return from the turbo. After starting the engine I found that a larger needle valve was needed, so I went with a 1/4" N400B.
