Cylinder Head |
|
|
|
 |
|
|
|

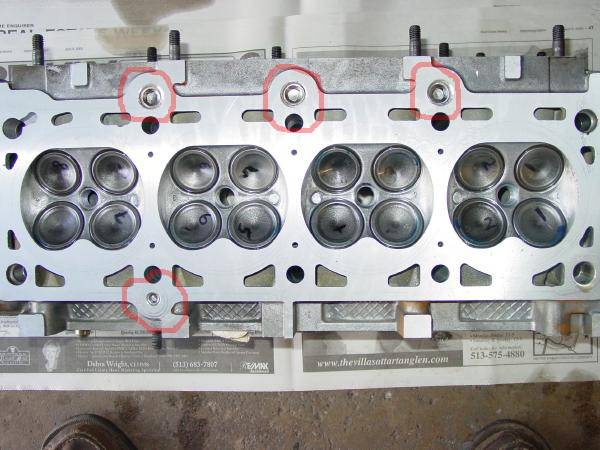

This pic shows the 4 holes that are plugged. The three in the top are 3/8" NPT and the lower one is 1/8" NPT. |
|
|
|
|
|
 |
|
|
|

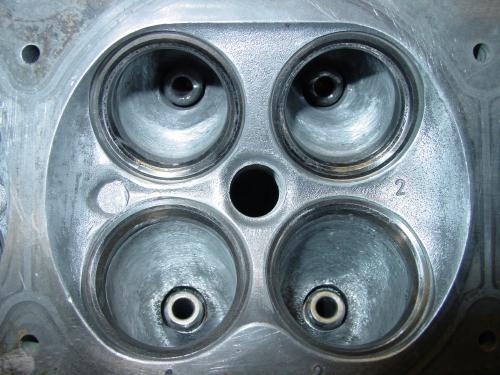

Here is the combustion chamber after a little cleaning up in the ports. |
|
|
|
|
|
 |
|
|
|

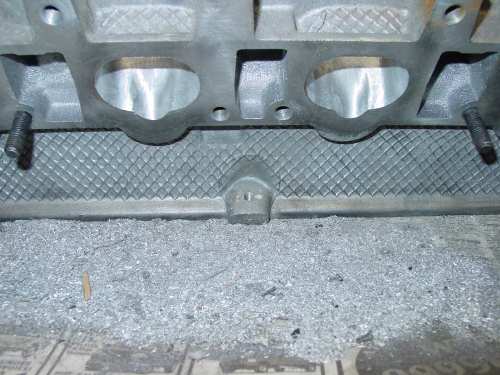

Hogging out the intake a little |
|
|
|
|
|
 |
|
|
|
Smoooooth exhaust side |
|
|
|
|
|
 |
|
|
|

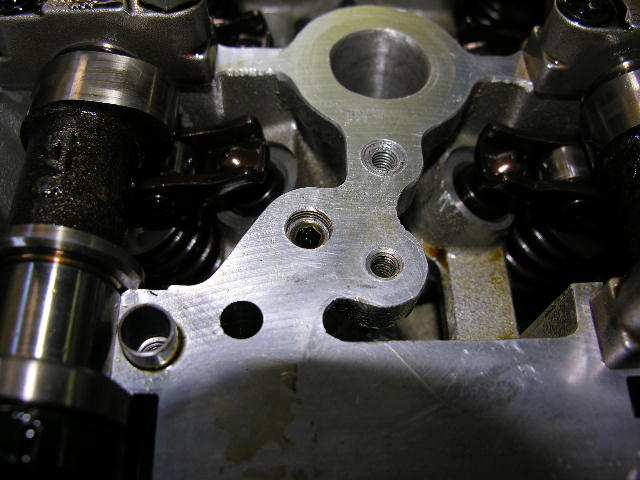

This is where I plugged the oil passage which brings oil to the oil galleys from the head bolt. I didn't want oil going back down to the head bolt and gasket. So the 1/8 NPT plug stops this. You could also plug the other port(located at 7:00oclock from the plug) which would keep oil from reaching the two small oil squiters. I used JB weld for blocking these. |
|
|
|
|
|
|
|
