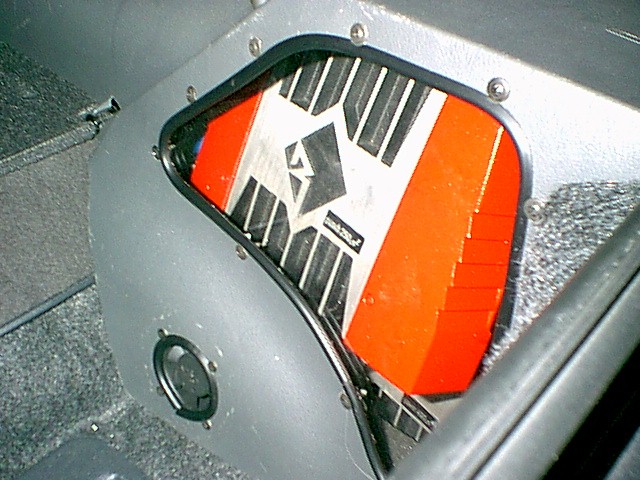

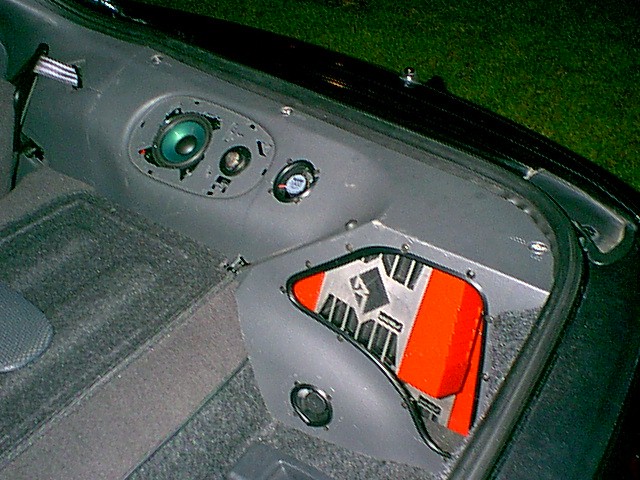

| This page contains pictures and diagrams of my car audio system in my 1998 Trans Am. I used various products for this particular install. Check out some of the manufacturers websites by clicking the icons above. |
| Headunit: Factory Monsoon CD w/EQ Amplifiers: RF Punch Power 400a4 RF Punch 250a2 Front Doors: Infinity 60.2cs Components Sail Panels: Infinity 62.1i 2-way Coaxials Rear Hatch Panels: Infinty 40.2cs Components Subwoofer: RF HE2 10" Dual Voice Coil Power: Lightning Audio 1 Farad Digital Top Capacitor LA 4 Gauge Power and ground LA 100 Amp Waffle Fuse and Holder LA Fuse Block Misc.: LA OEM to RCA Adapter LA 10 Guage Speaker Wire RF RCA Cables Streetglow Red Neon Accent Tubes 8" (2) Check Out The Wiring Diagram For Set-up |
 |
 |
 |
 |

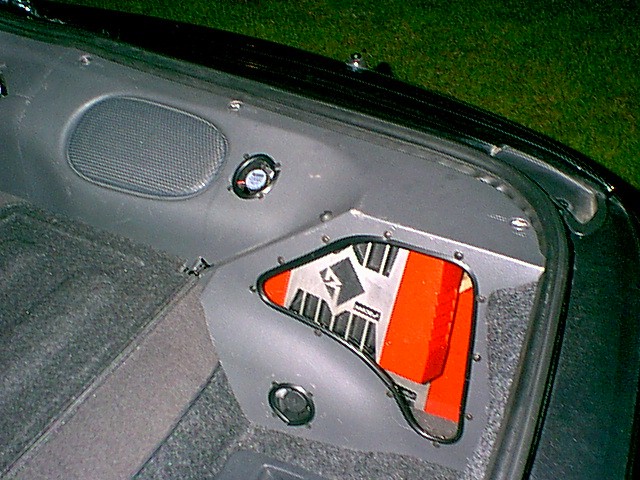

| I decided on this set-up for 2 reasons. One, I wanted to leave the hatch space open for practicle use and, two, I wanted a stealth appearance. With the well cover back, you can't see anything from inside the car. Turn up the volumn, and you can sure feel it though. The fact that I wanted to maintain my steering wheel controls also went in to deciding to stick with the factory headunit. I plan on upgrading eventually, but have yet to find one that I like. |
 |
 |
|
|
 |
 |
 |
