Vehicles of the Wehrmacht 1939-1945



Schwere Panzerspähwagen Sd.Kfz.231 8-Rad
Schwerer Panzerspähwagen (Fu) Sd.Kfz.232 8-Rad

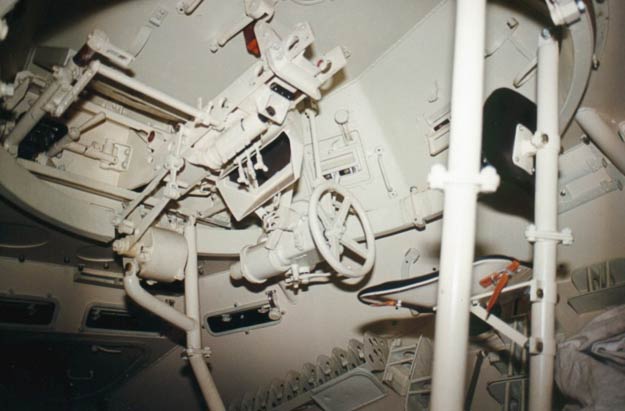

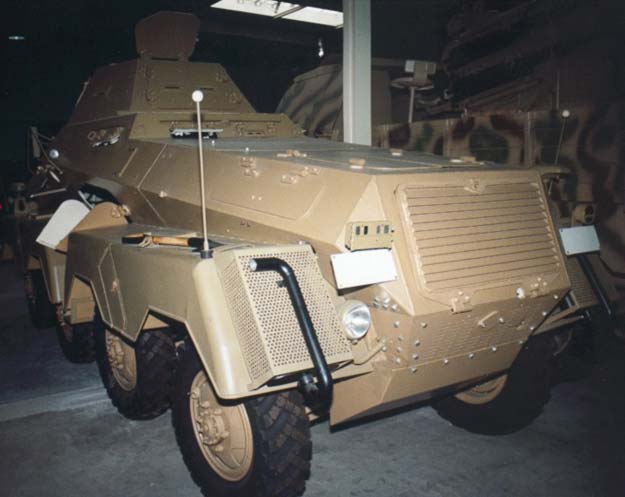

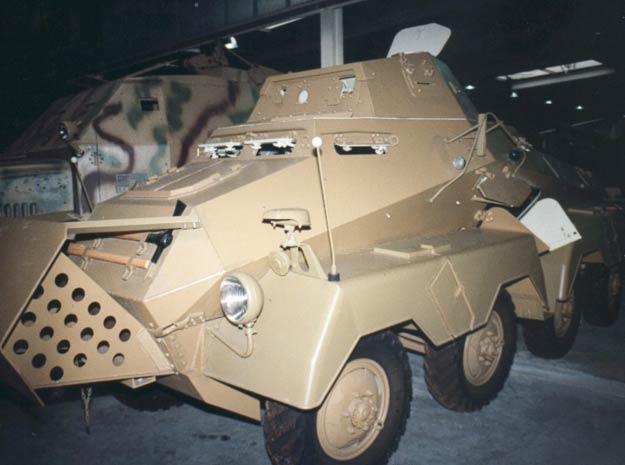

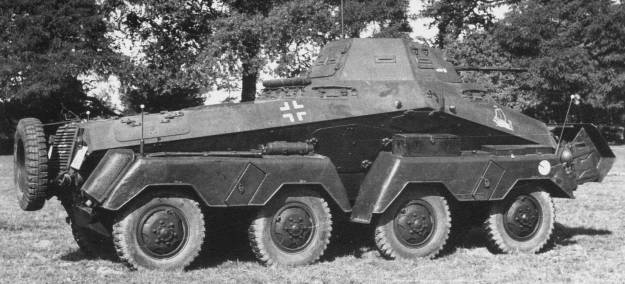

Sd.Kfz.231

Sd.Kfz.231

Sd.Kfz.231

Sd.Kfz.231

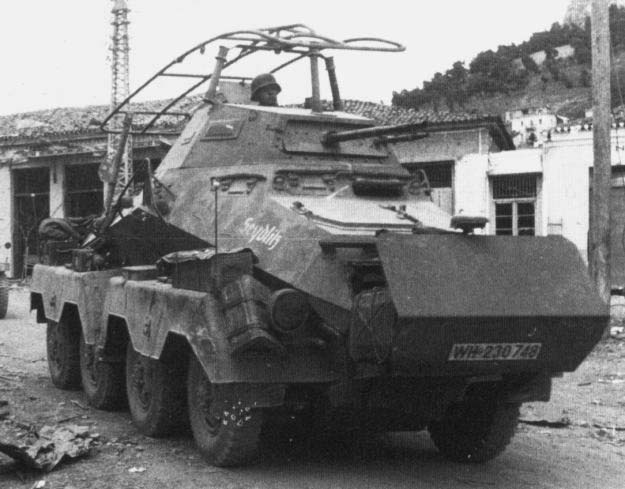

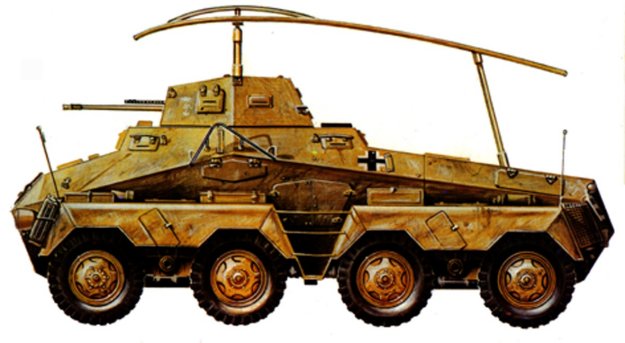

Sd.Kfz.232

Sd.Kfz.232


Specifications

Weight:8300kg
Crew:4 men
Engine: Bussing-NAG L8V / 8-cylinder / 150hp
Speed:Road: 85km/h
Cross-Country: --km/h
Range:Road: 300km
Cross-Country: ---km
Fuel Capacity:--- litres
Lenght:5.85m
Width:2.20m
Height:2.35m
Armament: 20mm KwK 30/38 L/55 & 7.92mm MG34
Ammo:20mm - 180 rounds
7.92mm - 1050 rounds (Sd.Kfz.232) / 2100 rounds (Sd.Kfz.231)
Armor:5-18mm



Color photographs were provided and are property of Geoffrey Zimmer.
