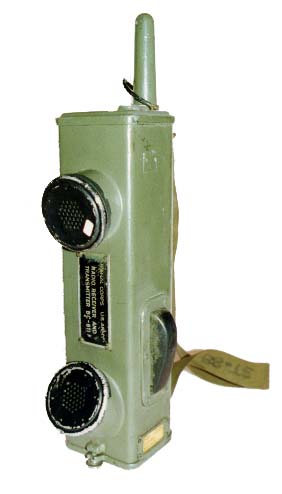

Signal Corps US Army BC611 Transceiver

• Produced: USA in 1952.
• Obtained: bought at a flea market in Luxembourg city for 2500 LuF (~$70) in 1996.
• Features:
  • Portable transceiver with 5 tubes.
  • 1 speaker, 1 mike.
  • telecopic antenna built-in.
  • uses one 1.5 V and one 103.5 V battery.
  • military rugged.
• Bands:
  • only one SW channel at 3885 Khz.
• Condition:
  • Good shape.
• Tubes:
  • VT174/3S4/DL92 (RF preamp/TX output)
  • VT171/1R5/DK91 (RF conv/TX osc)
  • VT173/1T4/DF91 (IF)
  • VT172/1S5/DAF91 (det+AF)
  • VT174/3S4/DL92 (AF output/AM modulator)

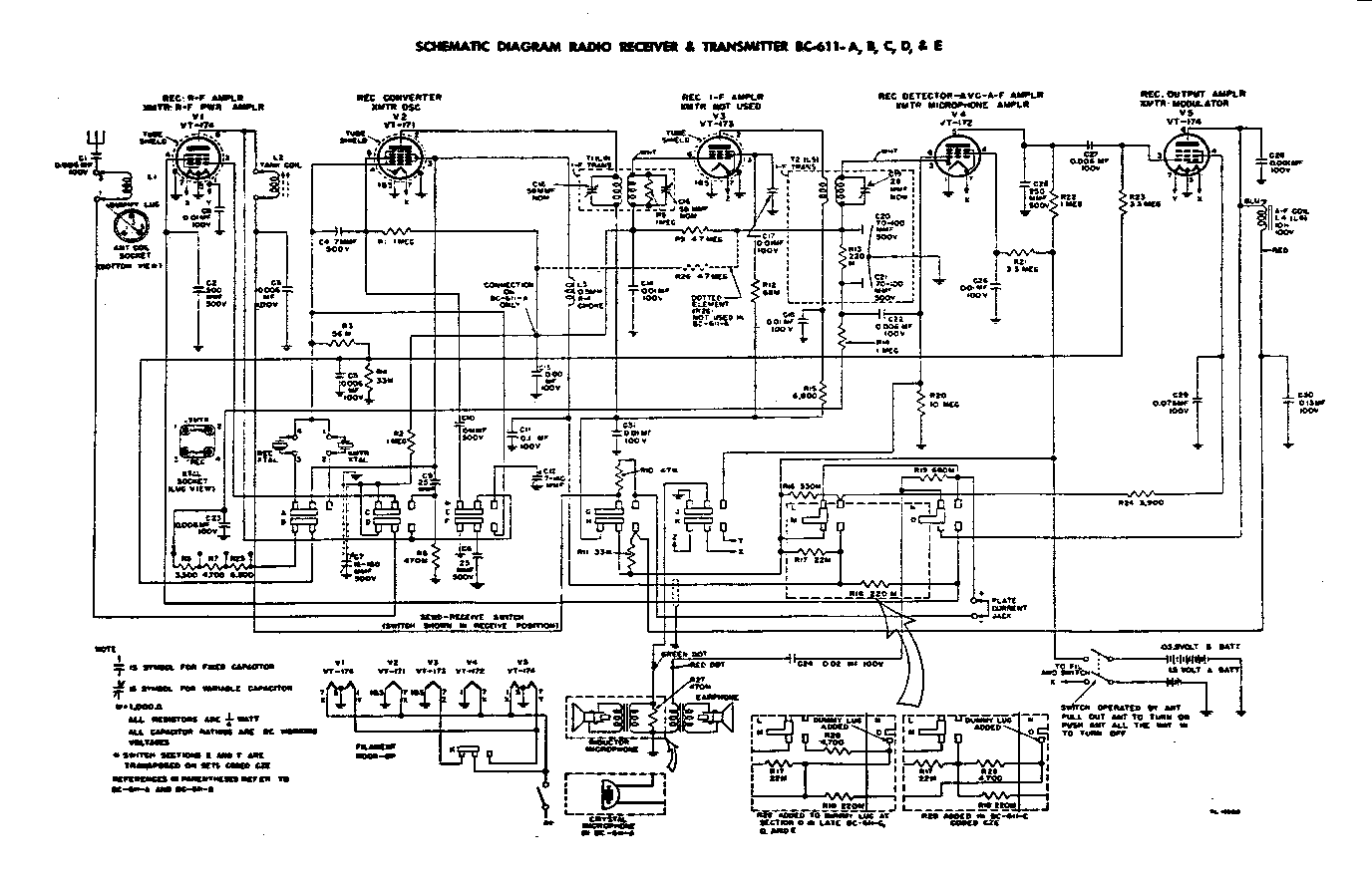

• Schematics
