Connect points A through D to body contacts or to each other through Pots or photocels to control pitch(without effecting tempo)
Connect points E through H to body contacts or to each other through Pots or Photocels to control Pitch/Tempo
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
| < -------------------------------------------------------Page 2-----------------------------------------------------> | |||||||||||||||||
|
|||||||||||||||||
| The pick above indicates the areas of interest | |||||||||||||||||
|
|||||||||||||||||

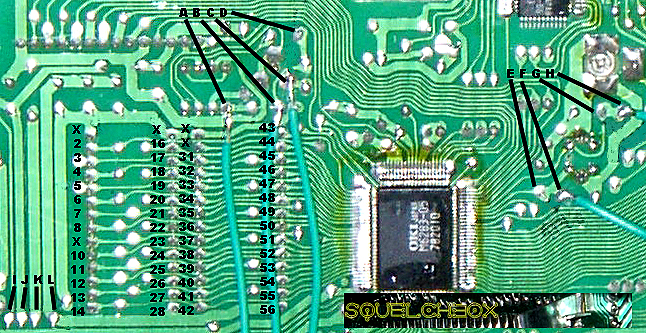

| Close up view of the area of interest | |||||||||||||||||
| X's were lame, theres more, X's, probe around before you wire stuff up!!!! | |||||||||||||||||
| Connect points 1 through 56 to ground through toggle or momentry switches(although I suspect many of these points have the same end effect) Connect points A through D to body contacts or to each other through Pots or photocels to control pitch(without effecting tempo) Connect points E through H to body contacts or to each other through Pots or Photocels to control Pitch/Tempo |
|||||||||||||||||
