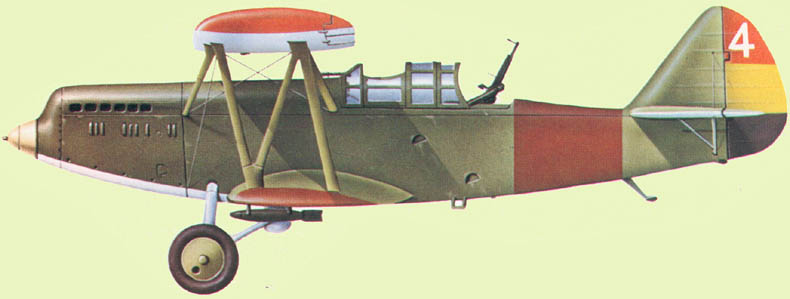

| Polikarpov Rz (Natacha) |
|
| Squadrons - Technical Drawings |
| Seriously redesigned version of R-5, intended for ground attack rather than for reconnaissance missions. It was created under initiative of A.M.Belenkovich (Director of Factory-1) by team of designers at this factory (E.P.Shekunov, D.S.Markov, A.A.Skrabov and others). R-Z was smaller than predecessor and had different powerplant. Other changes included enclosed cockpit, covered defensive turret (in same canopy). Construction was lighter than of the R-5 and somewhat weaker, but still fulfilled all requirements. Early batches had same armament as R-5, later was strengthened. R-Z was widely used during Civil War in Spain. In production during 1935-1937, it was the last Soviet biplane reconnaissater built in series. |
| Technical data ~~~~~~~~~~~~~~~~~~~~ Type: R-Z Function: Recon-Attack Year: 1935 Crew: 2 Engines 1:*750/850hp M-34N Length: 9.7m Wingspan: 15.5/11.6m Wing area: 42.52m2 Empty weight: 2007kg Loaded weight: 3150kg Wing load: 74.0kg/m2 Power load: 4.2kg/hp Speed at sea level: 276km/h Speed at 3500m: 316km/h Landing Speed: 105km/h Landing Roll: 14sec - 220m Takeoff Roll: 15sec - 270m Turn time: 18sec Range: 1000km Ceiling: 8700m Climb: 3000m 6.6min 5000m 11.8min Armament: Guns up to 7*7.62mm Bombs 500kg |
 |
|
|
|
|
