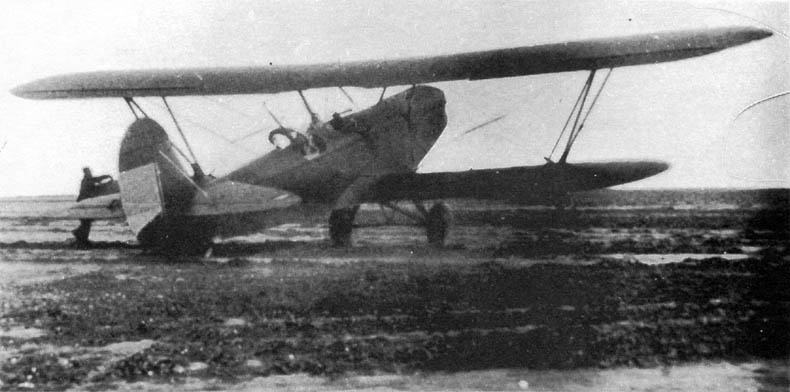

| Polikarpov R-5 |

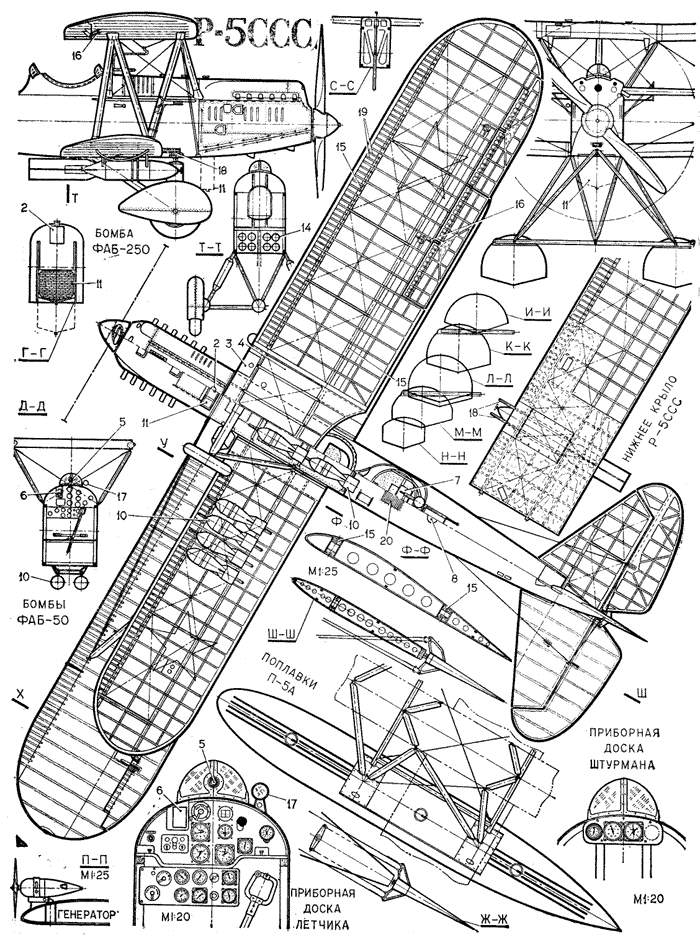

| Units -- Technical Drawings |
 |
 |
| Crew: 2, engine: 1 x M-17, 370kW, wingspan: 15.5/12.0m, length: 10.6m, height: 3.6m, wing area: 50.2m2, start mass: 3351kg, empty mass: 2108kg, max speed: 230kph, ceiling: 6150m, range w/max.fuel: 600km, armament: 3 MG, 250kg of bombs Reconaissance biplane, used in the Spanish civil war and the Manchuria conflict, and still in first-line service in 1941. More than 7000 built. |
