Carpenter Camping - Upgrades |
|
|
 |
|
|
|
Cabinet Addition |
|
|
|
 |
|
|
|
 |
|
|
|
|

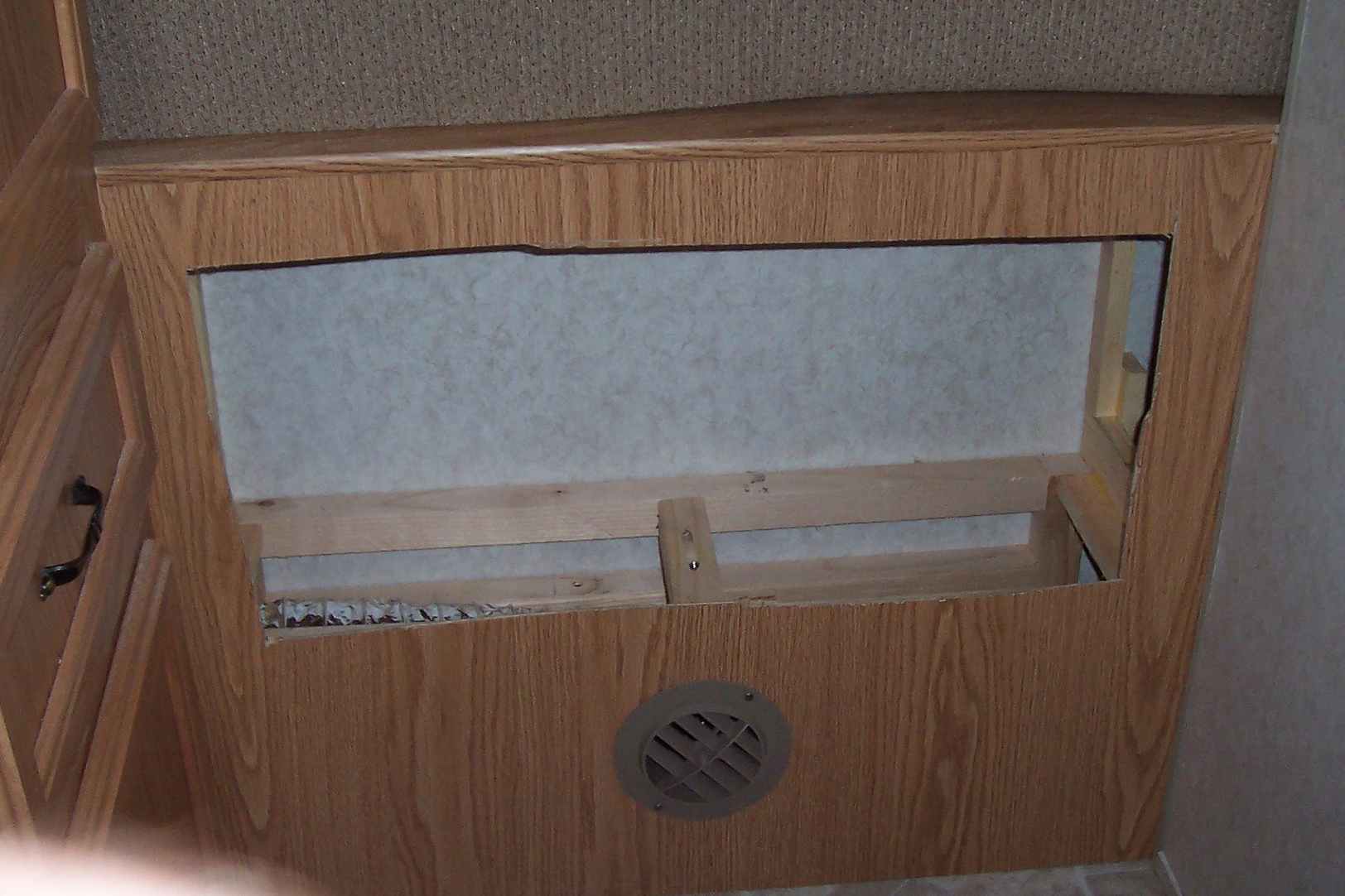

Here is what it looked like after I cut the wall open and added the internal framing for the cabinet. |
|
|

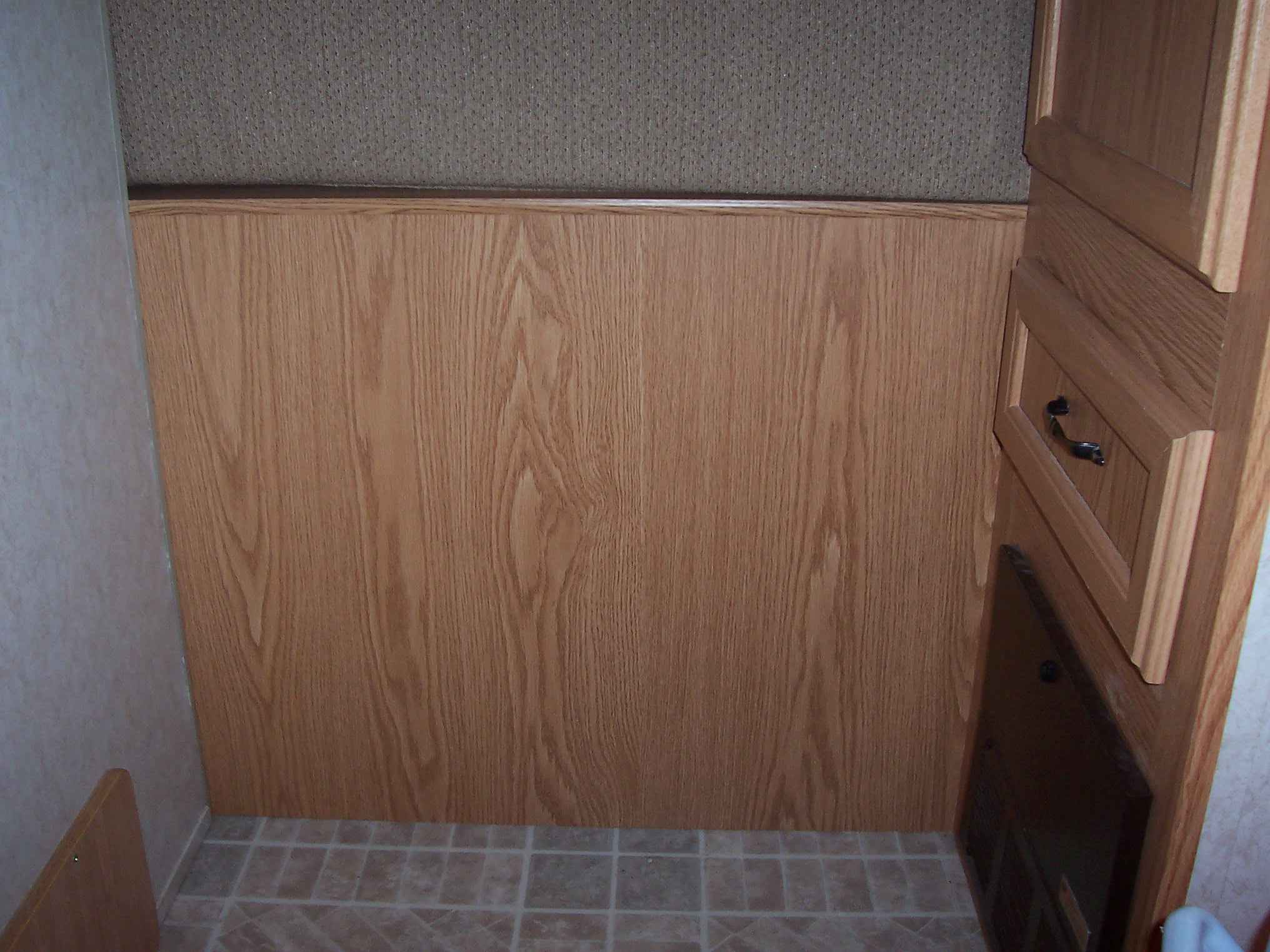

Below the side bunks on my Coyote is a storage area that can only be accessed from the outside. Since my arms are not 8 feet long, the space was wasted. So I decided to add a new cabinet that could be accessed from the inside. |
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|

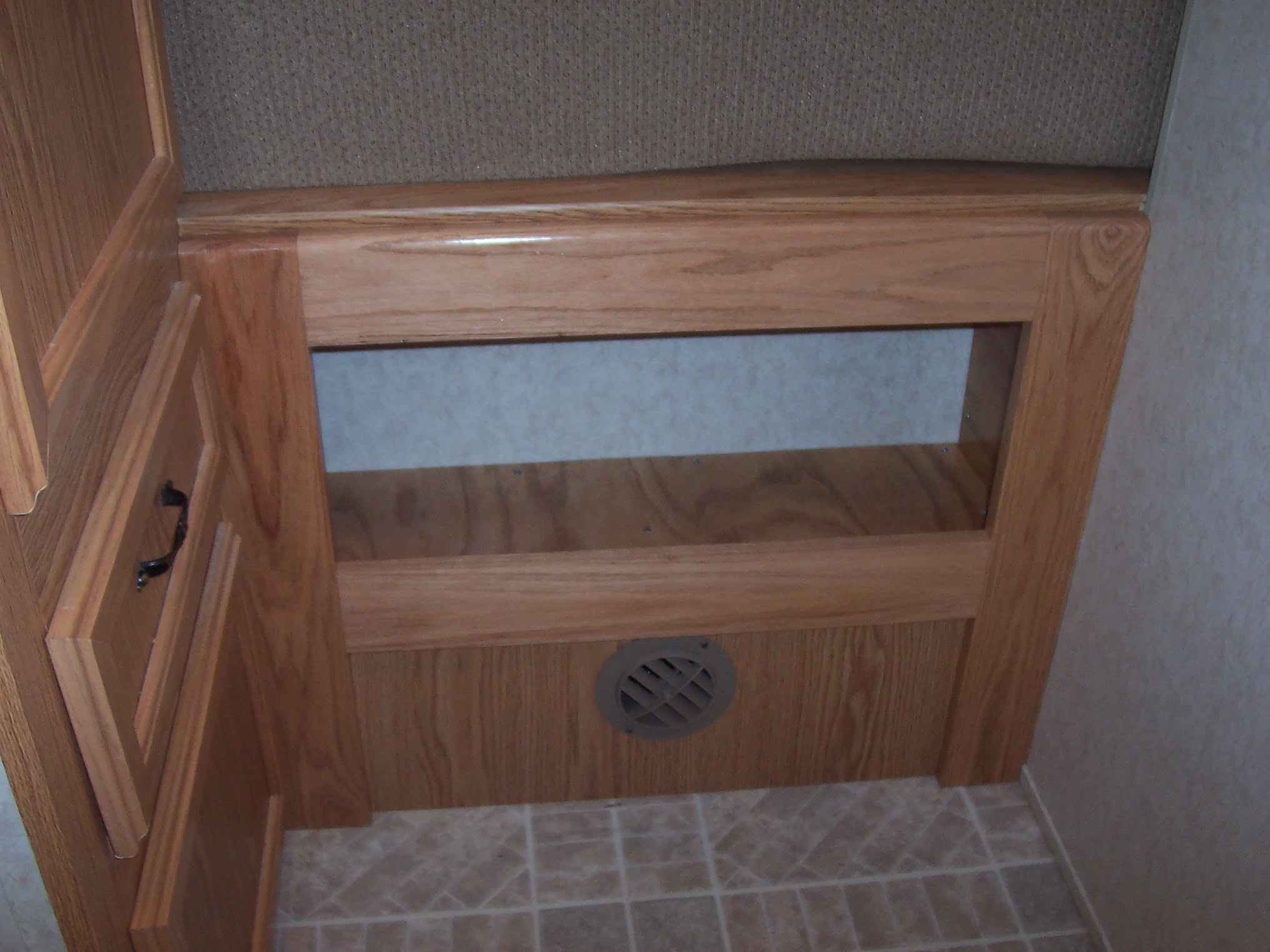

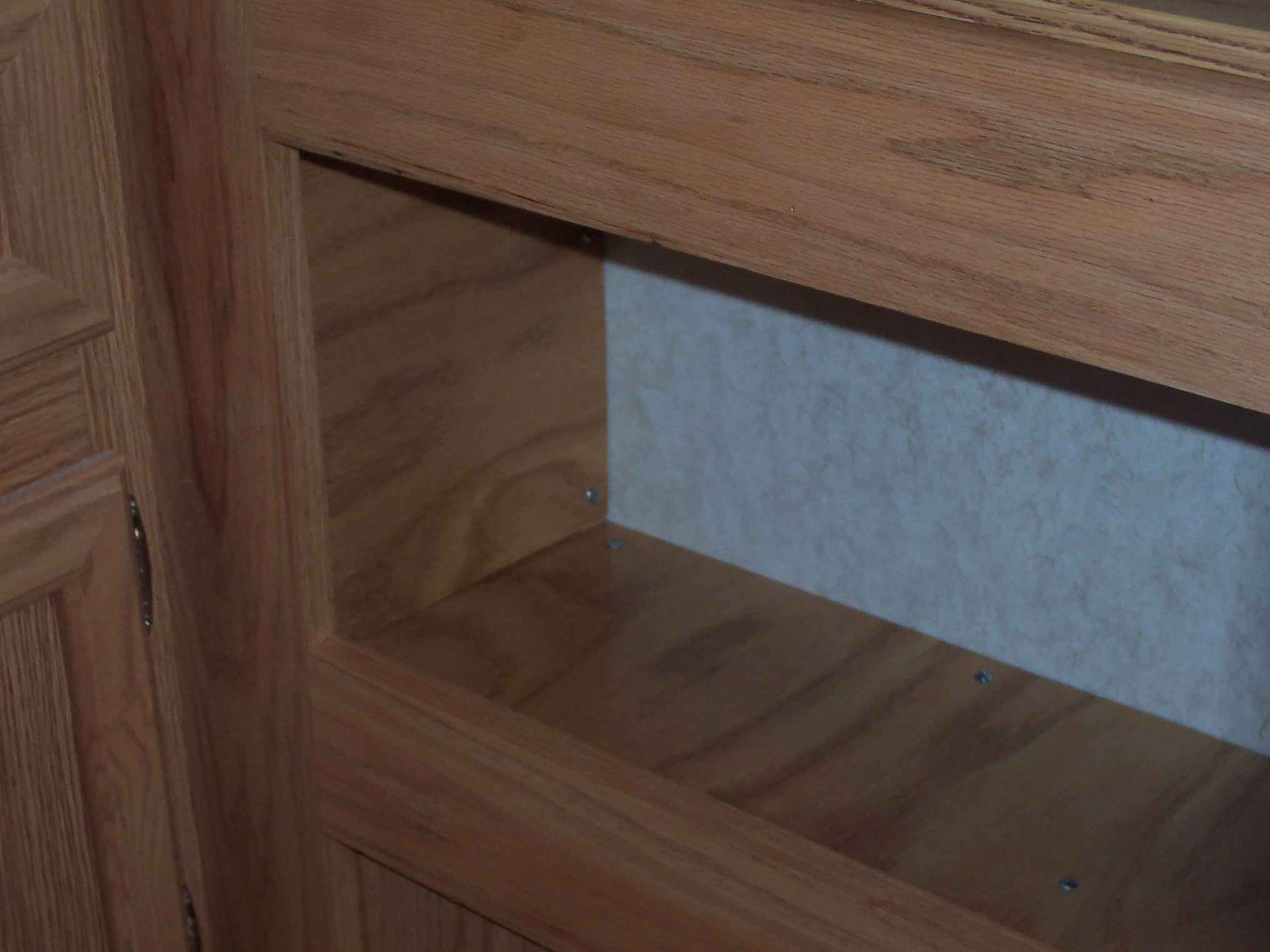

Here it is with sides and bottom installed and face frame added. The face frame is made of 3/4" red oak and the sides and bottom are made of 1/4" red oak plywood. Both are finished with a clear polyurethane. |
|
|
|
 |
|
 |
|
|
|
|
|

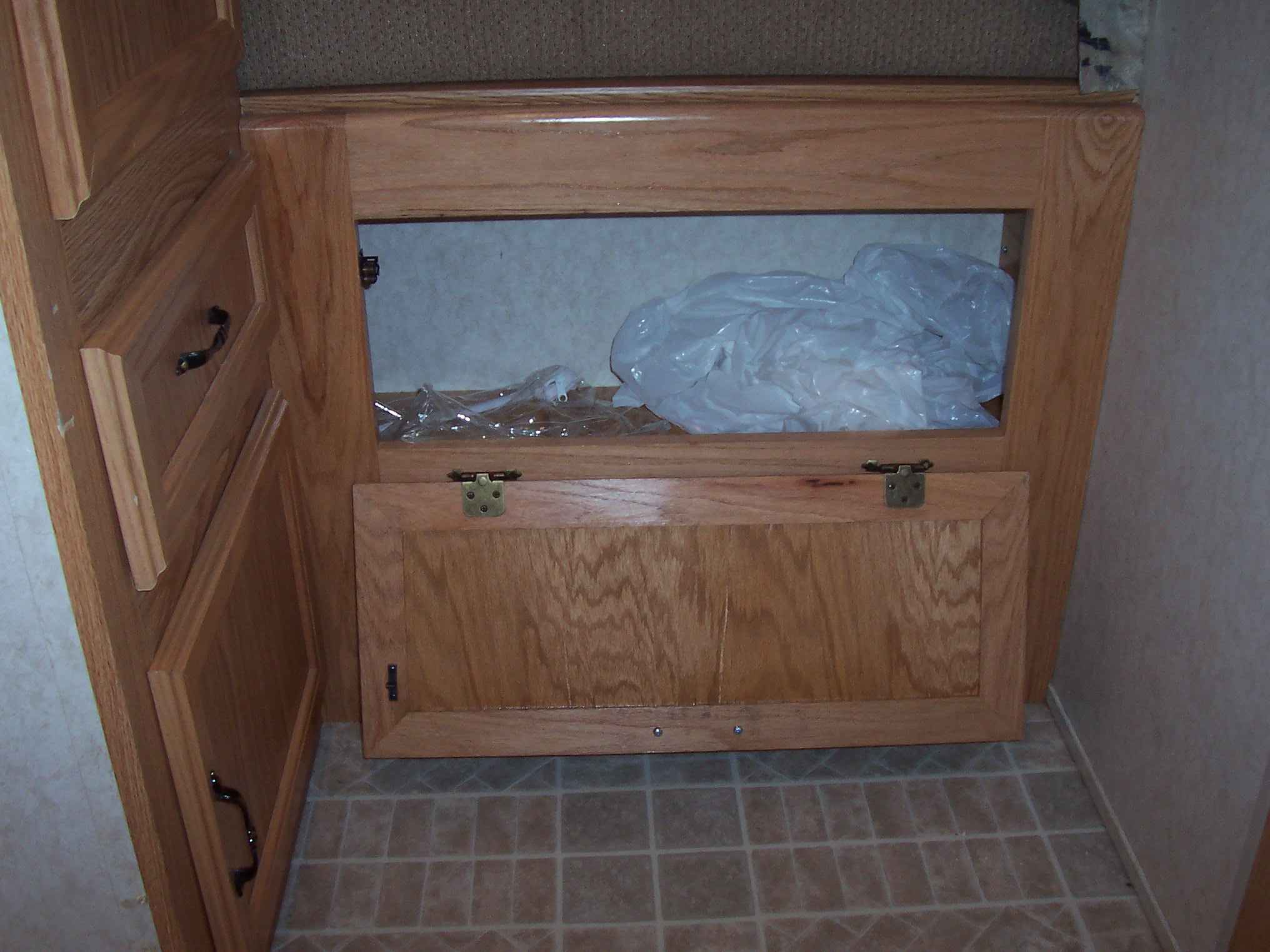

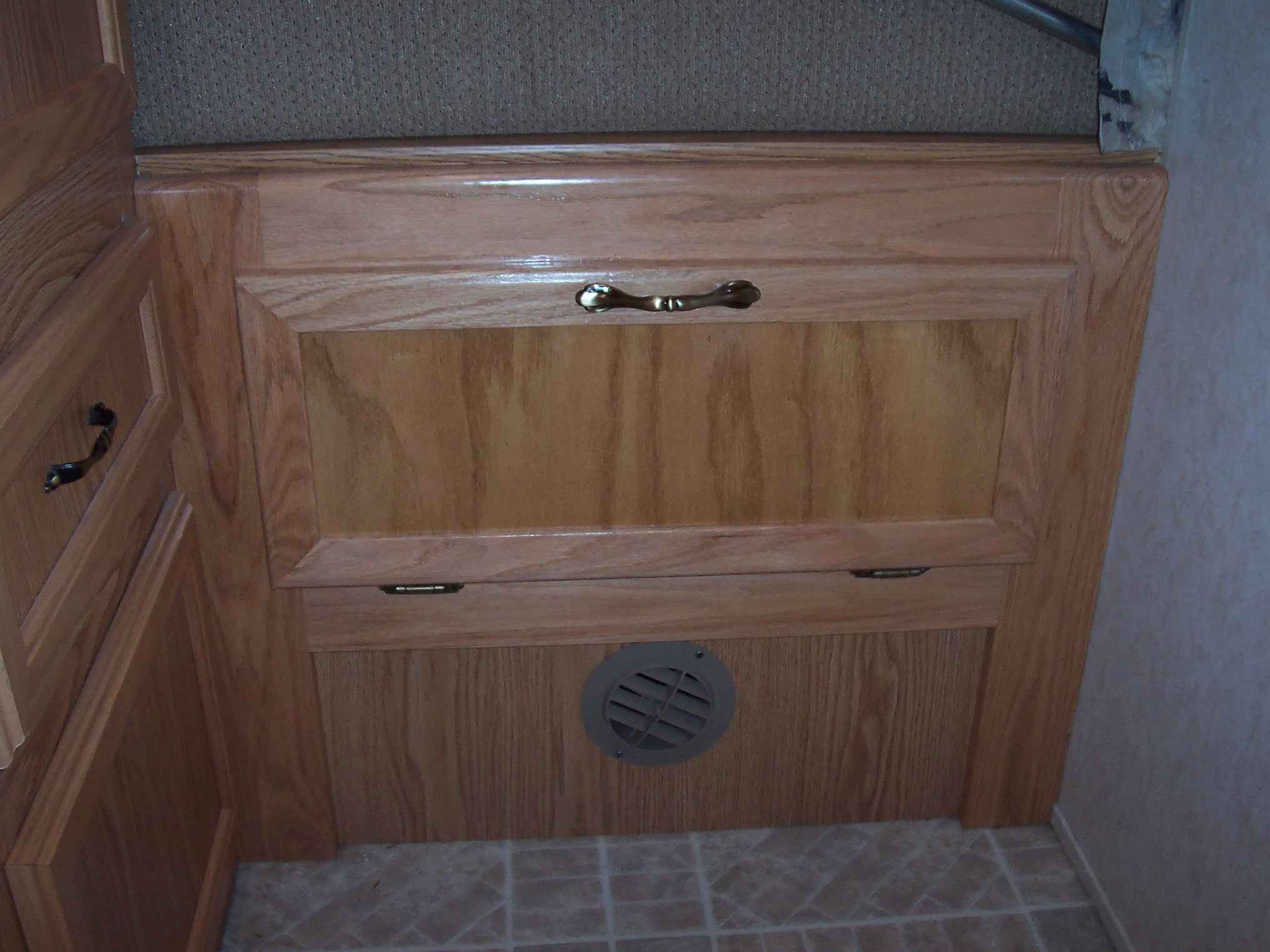

Here it is with the door installed. The door is made of 3/4" red oak and the with a 1/4" red oak plywood panel. It is finished with a clear polyurethane. |
|
