MCCB Type |
Number of Poles | Rated Current (A) |
Purchase Number |
Breaking Capacity (kA) | Weight (kg) |
Dimension ( mm ) ( W x H x D [E] ) |
||
|
220 V |
380 V | 415 V | ||||||
| ABS 402a | 2 Pole | 250 (300)* | - | 50 | 35 | 5.2 | 140 x 257 x 109 [145] | |
| 300 (250)* | - | |||||||
| 350 (400)* | - | |||||||
| 400 (350)* | - | |||||||

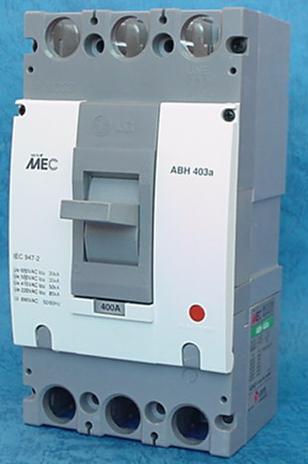

ABS 403a |
3 Pole | 250 (300)* | - | 6.2 | 140 x 257 x 109 [145] | |||
| 300 (250)* | - | |||||||
| 350 (400)* | - | |||||||
| 400 (350)* | - | |||||||
| ABS 404a | 4 Pole | 250 (300)* | - | 7.8 | 185 x 257 x 109 [145] | |||
| 300 (250)* | - | |||||||
| 350 (400)* | - | |||||||
| 400 (350)* | - | |||||||
(*): The value in the blanket is the Changeable Rated Current by using Interchangeable Rating Plug
