MCB Type |
Number of Poles | Rated Current (A) |
Purchase Number |
Breaking Capacity (kA) | Weight (kg) |
Dimension
(mm) ( W x H x D [E] ) |
|
|
220 V |
460V | ||||||

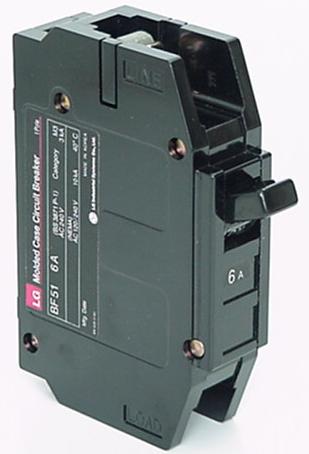

BF51 |
1 Pole | 6 | 4020-0000 | 2.5 | - | 0.14 | 25 x 100 x 60 [78] |
| 10 | 4020-0001 | ||||||
| 15 | 4020-0002 | ||||||
| 40 | 4020-0005 | ||||||
| 50 | 4020-0006 | ||||||

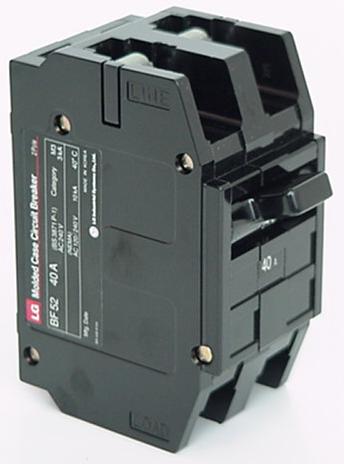

BF52 |
2 Pole | 20 | 4020-0013 | 2.5 | - | 0.29 | 50 x 100 x 60 [78] |
| 30 | 4020-0014 | ||||||
| 40 | 4020-0015 | ||||||
| 50 | 4020-0016 | ||||||
