MCB Type |
Number of Poles | Rated Current (A) |
Purchase Number |
Breaking Capacity (kA) | Weight (kg) |
Dimension
( mm ) ( W x H x D [E] ) |
|
|
220 V |
460V | ||||||

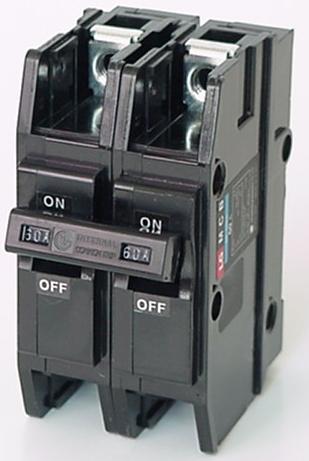

BF102a |
2 Pole | 60 | 4020-0037 | 10 | 2.5 | 0.23 | 50 x 97 x 60 [77] |
| 75 | 4020-0038 | ||||||
| 100 | 4020-0039 | ||||||

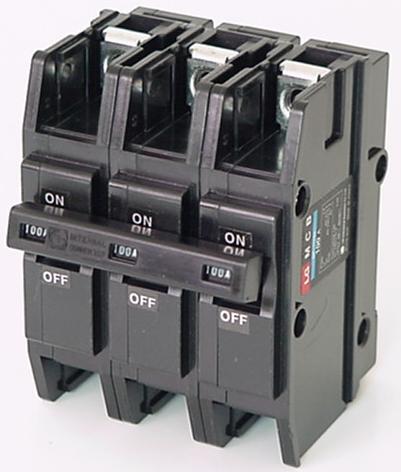

BF103a |
3 Pole | 60 | 4020-0047 | 10 | 2.5 | 0.35 | 75 x 97 x 60 [77] |
| 75 | 4020-0048 | ||||||
| 100 | 4020-0049 | ||||||
