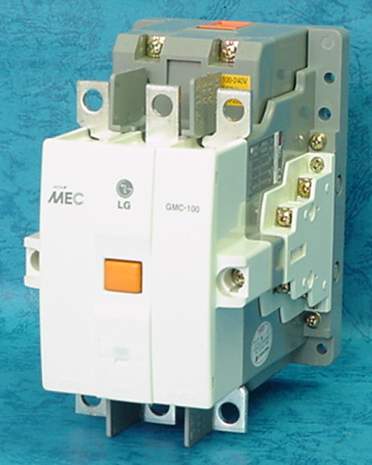

| GMC 100 | Operational Coil ( 50Hz ) | Appearance | |
| AC 220V | AC 380V | ||
| Purchase Number | 7020-0040 | 7020-0090 |
 |
| AC3 Duty | 35kW 105A | 55kW 105A | |
| AC Three Phase Motor | 30HP | 60HP | |
| No. of Contact (Standard) | 2NO 2NC | ||
| Panel Installation | Screw | ||
| Dimension ( mm ) ( W x H x D ) | 100 x 157.4 x 146.5 | ||
| Weight ( kg ) | 2.9 | ||
| Accessories | |||
| Optional Contact Unit | AU-100 | ||
| Mechanical Interlock Unit | AR-100 | ||
| Changeable Operational Coil | AC 60Hz , AC 50Hz , DC | ||
| Thermal Overload Relay (Standard) | GTH-100 | ||
