ELCB Type |
Number of Poles and elements | AC Rated Voltage(V) | Rated Current (A) |
Purchase Number |
Breaking Capacity (kA) | Weight (kg) |
Dimension (mm) (W x H x D [E] ) |
|
| 110 V | 220 V | |||||||

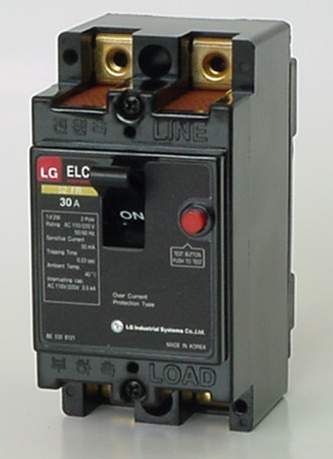

52 FR |
2P 2E | 110 / 220 | 15 | 6020-0000 | 2.5 | 2.5 | 0.4 | 50 x 96 x 60 [80] |
| 20 | 6020-0001 | |||||||
| 30 | 6020-0002 | |||||||
| 40 | 6020-0003 | |||||||
| 50 | 6020-0004 | |||||||
