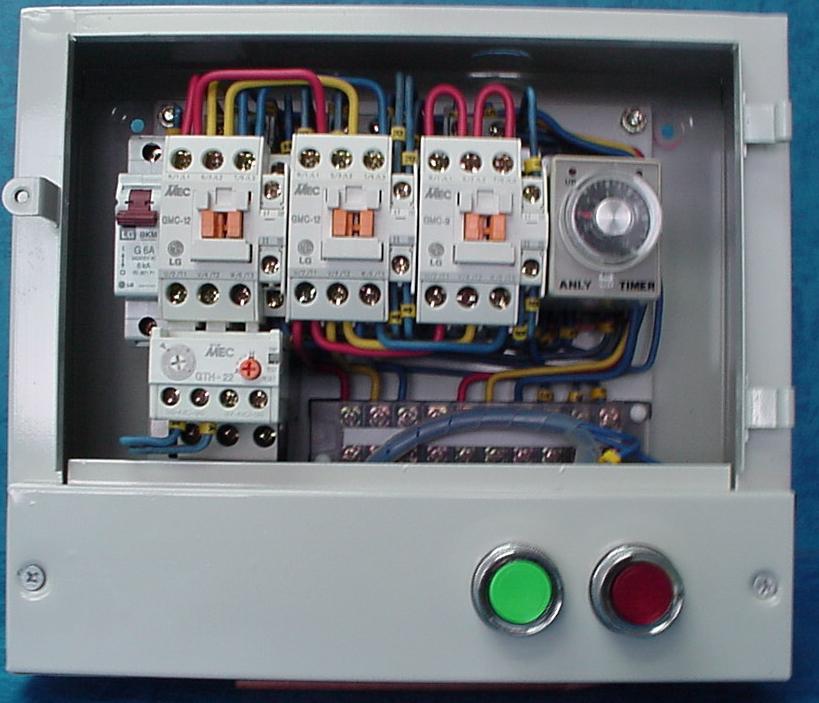

韓國 LG 馬達啟動器 (九線制) Automatic Star-Delta Starter
| 型號 | 適用馬達380/415V |
磁力掣配合型號 (AC3) L/D/S |
熱過載斷路器 限流範圍 |
外型尺寸(mm) (W x H x D) |
||
| HP | kW | |||||
|
IP 41 鐵箱連指示燈 及扲手  |
YDS-GM307SL | 5 ~ 7.5 | 4 ~ 5.5 | GMC-22/22/22 | GTH-22 5~8A | 320 x 270 x 135 |
| YDS-GM315SL | 10 ~ 15 | 7.5 ~ 11 | GTH-22 9~13A | |||
| YDS-GM320SL | 20 | 15 | GMC-32/32/32 | GTH-40 12~18A | 350 x 340 x 135 | |
| YDS-GM330SL | 25 ~ 30 | 18.5 ~ 22 | GMC-40/40/32 | GTH-40 18~26A | ||
| YDS-GM340SL | 40 | 30 | GMC-50/50/50 | GTH-85 28~4-A | 350 x 450 x 180 | |
| YDS-GM350SL | 50 | 37 | GMC-65/65/50 | GTH-85 45~65A | ||
| YDS-GM375SL | 60 ~ 75 | 45 ~ 60 | GMC-85/85/50 | GTH-85 63~85A | ||
|
IP 41 鐵箱連 扲手  |
YDS-GM307 | 5 ~ 7.5 | 4 ~ 5.5 | GMC-9/9/9 | GTH-22 5~8A | 280 x 260 x 125 |
| YDS-GM310 | 7.5 ~ 10 | 5.5 ~ 7.5 | GMC-12/12/9 | GTH-22 7~10A | ||
| YDS-GM315 | 10 ~ 15 | 7.5 ~ 11 | GMC-18/18/12 | GTH-22 9~13A | ||
| YDS-GM320 | 15 ~ 20 | 11 ~ 15 | GMC-22/22/18 | GTH-22 12~18A | ||
| YDS-GM325 | 20 ~ 25 | 15 ~ 18.5 | GMC-32/32/32 | GTH-40 16~22A | 320 x 270 x 135 | |
| YDS-GM330 | 25 ~ 30 | 18.5 ~ 22 | GMC-40/40/32 | GTH-40 18~26A | ||
| YDS-GM340 | 30 ~ 40 | 22 ~ 30 | GMC-50/50/50 | GTH-85 24~36A | 350 x 450 x 165 | |
| YDS-GM350 | 40 ~ 50 | 30 ~ 37 | GMC-65/65/50 | GTH-85 34~50A | ||
| YDS-GM360 | 50 ~ 60 | 37 ~ 45 | GMC-75/75/50 | GTH-85 45~65A | ||
| YDS-GM375 | 60 ~ 75 | 45 ~ 60 | GMC-85/85/50 | GTH-85 54~75A | ||
