CHUCKS

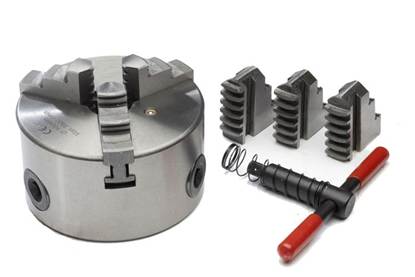

3 Jaw Self Centering Metal Lathe Chucks

The Warco range of lathe chucks are of exceptionally high quality.

§ 3 Jaw Self Centering Chucks in a range of different sizes

§ Featuring a recess for back plate mounting.

§ Supplied with both inside and outside jaws.

§ Produced to DIN 6350 standard.

4 Jaw Independent Chuck

For the Warco Mini Lathe.

80mm 4 Jaw independent chuck.

Super quality, direct fit to Warco Mini Lathes.

4 Jaw Independent Lathe Chucks with Reversible Jaws

§ Available in four different sizes - either 80mm, 100mm, 125mm or 160mm.

§ Exceptionally high quality lathe chucks.

§ Produced to DIN 6350 standard.

§ Featuring reversible jaws and recess for back plate mounting.

Lathe Chucks - 4 Jaw Self Centering with Reversible Jaws

§ Exceptionally high quality lathe chucks.

§ Produced to DIN 6350 standard.

§ Featuring recess for back plate mouting.

§ Available in three different sizes - 100mm, 125mm and 160mm.

High Speed Steel Lathe Tools - 8 Piece Set

Suitable for turning most materials including wood, plastic, aluminum, brass, steel and cast iron. These HSS tools offer extreme robustness, and even retain their hardness at high temperatures.

Tools can be re-ground on a standard grinding wheel.

Set is supplied complete with quality wooden storage box.

This set comprises the following:

§ Left hand turning tool

§ Right hand turning tool

§ Straight finishing (60° / 55°)

§ Corner tool

§ Parting tool

§ Boring tool

§ Threading (60° / 55°)

§ Corner finishing tool

Available in the following sizes:

§ 6mm x 6mm x 65mm

§ 8mm x 8mm x 80mm

§ 10mm x 10mm x 100mm

§ 12mm x 12mm x 100mm

Very high quality high speed steel lathe tools, with a wide range of different applications

CALIPERS

Description

Manufactured from hardened stainless steel, this three function electronic digital caliper provides precision readings through a clear liquid crystal display. Its many features include a fine adjustment roller which allows precise measurements to be taken quickly and easily.

The digital section button enables readings to be displayed in either metric, imperial (decimal) or imperial (fractional) format. The four-way measurement function provides a choice of readings in external, internal,depth and step modes.

The strong plastic storage case enables the caliper to be kept in a dust and damp free environment, protected from direct sunlight and high temperatures.

150mm (6 in)

Graduations: 0.01 mm ( 0.0005 in)

Description

Manufactured from stainless steel with dual reading in imperial and metric, the universal three-way measurement facility enables readings in external, internal and depth modes. The sliding thumb-lock feature easily allows quick and precise measurements to be taken. Metric and Imperial dual reading with a handy locking function

Key Features

· Pocket-sized

· Movable head locks for comparative measurement

· Easy-to-read non-reflective 100mm scale calibrated to 0.05mm resolution

· External, internal, depth and distance from an edge measurement

· Supplied with leatherette case

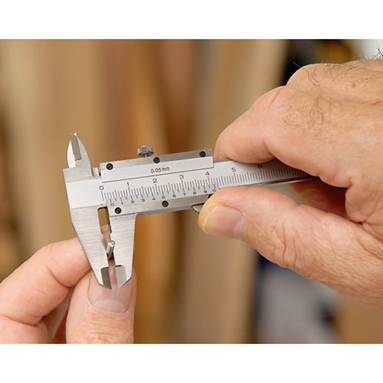

Description

A top-pocket-sized vernier for the accuracy-conscious woodworker or craftworker. The movable head locks for comparative measurement using a small thumbscrew. The easy-to-read non-reflective 100mm scale is calibrated to a resolution of 0.05mm. The four functions include external, internal, depth and distance from an edge measurement. The caliper comes with a leatherette case.

Key Features

· Thumb wheel adjustment

· Stainless steel with satin finish

· Clear metric and imperial graduations

· Metric scale gives readings down to 0.02mm and the imperial scale 0.001"

· Can be used for external, internal and depth measurement

Description

A good quality vernier caliper made from stainless steel with clear metric and imperial graduations and a satin finish to eliminate glare. The metric scale gives readings down to 0.02mm and the imperial scale to 0.001". The caliper can be used for external, internal and depth measurement and the locking screw keeps the head secure between measurements. Adjustment is made by a thumb-operated wheel on the sliding head. Supplied in a plastic case

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\14.jpg$ ER 32 Collets

Range of different sized ER 32 individual collets.

The ER system really offers unbeatable performance.

Capacity ranges from 3mm to 20mm.

Choose from individual collet sizes from the drop down menu above.

Collet sizes available:

§ ER32 Collet 3-2mm (Item No. 3019 3.2)

§ ER32 Collet 4-3mm (Item No. 3019 4.3)

§ ER32 Collet 5-4mm (Item No. 3019 5.4)

§ ER32 Collet 6-5mm (Item No. 3019 6.5)

§ ER32 Collet 7-6mm (Item No. 3019 7.6)

§ ER32 Collet 8-7mm (Item No. 3019 8.7)

§ ER32 Collet 9-8mm (Item No. 3019 9.8)

§ ER32 Collet 10-9mm (Item No. 3019 10.9)

§ ER32 Collet 11-10mm (Item No. 3019 11.10)

§ ER32 Collet 12-11mm (Item No. 3019 12.11)

§ ER32 Collet 14-13mm (Item No. 3019 14.13)

§ ER32 Collet 15-14mm (Item No. 3019 15.14)

§ ER32 Collet 13-12mm (Item No. 3019 13.12)

§ ER32 Collet 16-15mm (Item No. 3019 16.15)

§ ER32 Collet 17-16mm (Item No. 3019 17.16)

§ ER32 Collet 18-17mm (Item No. 3019 18.17)

§ ER32 Collet 19-18mm (Item No. 3019 19.18)

§ ER32 Collet 20-19mm (Item No. 3019 20.19)

Advantages of the ER collet

§ By far the most versatile collet system.

§ The main advantage is the ability for the collets to grip both imperial and metric sizes.

§ Additionally, threaded shank or plain shank cutters can be used.

§ The ER system is an industry standard, originally for use on milling machines.

§ To widen the application, we have introduced an inexpensive ER collet chuck to fit to a lathe backplate. Bar stock can pass through the collet and lathe spindle.

The ability to use similar collets for both lathe and milling machines results in exceptional

GO UP

Drills & its tools

Drill Chucks

Quality hard wearing chucks, very useful addition to your machine.

Suitable for many machines.

Available in either key or keyless type.

For fitting to Warco Lathes:

§ For the Mini Lathe, the drill chuck size we recommend is B12 10mm.

§ For other variable speed lathes such as the WM 180, WM 240, WM 250 and WM 280 the belt drive WM 240B, the drill chuck size that can be used is either B16 1-13mm or B16 3-16mm.

§ For the gear head lathes such as the GH1232, GH1236, GH1322, GH1330 and GH1440 the drill chuck size that can be used is either B16 1-13mm or B16 3-16mm.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\11.jpg$ These quality drill sets are HSS precision ground.

Available in the following sizes:

§ Metric 19 piece set 1-10mm x 0.5mm

§ Metric 25 piece set 1-13mm x 0.5mm

§ Imperial 21 piece set 1/16"-3/8" x 1/64"

§ Imperial 29 piece set 1/16"-1/2" x 1/64

§ Number drill set 1-60 x 1

§ Number drill set 61-80 20 piece

§ Letter drill set A-Z 29 piece

Warco DT 16 Bench Drill

This quality Warco DT 16 Drill features traditional and extremely robust cast iron construction.

§ With a precision keyless chuck.

§ Featuring unique, safe head elevation.

§ Supplied with telescopic aluminium Silvaflame UK chuck guard.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\13.jpg$

GO UP

Collets

§ versatility and value.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\15.jpg$ HSS Square Metal Bits

High speed steel / cobalt bits.

Square, available in a range of different sizes.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\16.jpg$

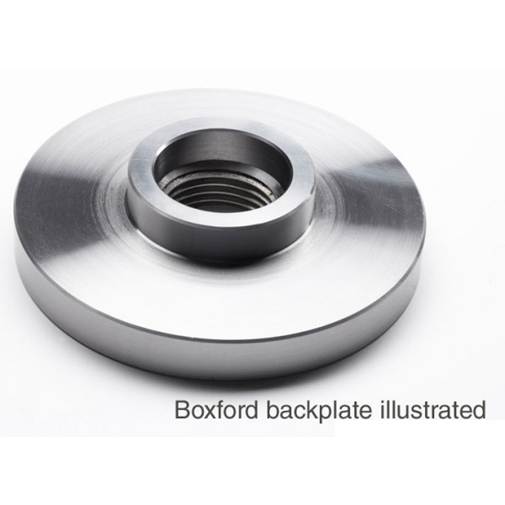

Back Plates

Backplates allow the mounting of collet chucks or alternative lathe chucks.

Range of different sizes available, for a wide variety of lathes.

Available to fit a large range of Warco lathes - see the table below for more details.

We also have back plates to fit Boxford and Myford Series 7 lathes.

Select the back plate you're interested in buying from the drop down menu above.

Back plate fitting:

These back plates will require machining to fit your particular machine depending on the application - a simple procedure.

Backplates are supplied machined to fit to the appropriate lathe spindle.

We offer various types of lathe collet chucks or alternative lathe chucks.

To ensure absolute accuracy it is necessary to machine a suitable spigot on the backplate to match the register in the back of the chuck.

Due to the various chuck PCDs it is also necessary to drill and possibly tap the backplate to accept whichever chuck is being mounted.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\22.jpg$ Morse Taper Drill Sets High Speed Steel

Super quality HSS sets.

Complete with wooden storage case.

Available in a range of four different types:

10 Piece Sets (2MT)

§ 2MT Imperial: 9/16", 19/32", 41/64", 43/64", 23/32", 3/4", 51/64", 53/64", 7/8" and 29/32"

§ 2MT Metric: 14.5, 15, 16, 17, 18, 19, 20, 21, 22 and 23mm

9 Piece Sets (2MT / 3MT)

§ 2MT 9/16", 41/64", 23/32", 51/64", 7/8" & 3MT 61/64", 1 1/32", 1 7/64", 1 3/16"

§ 2MT 14, 16, 18, 20, 22mm & 3MT 24, 26, 28, 30mm

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\19.jpg$ Reduced Shank Drill Sets

Quality 1/2" shank 8 piece set.

HSS precision ground.

Two different types available:

§ Imperial (9/16" to 1"x1/16")

§ Metric (13 14 15 16 18 20 22 25mm)

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\30.jpg$

Key Features

· Reduced shank drill bits for Majestic and Empress pen kits

· Two sizes available 37/64" and 15/32"

Description

A pair of reduced shank drill bits for drilling the blanks of some of our larger diameter pen kits. The larger diameter of 37/64" is used for drilling the cap section and the smaller 15/32" for the main body of the pens.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\33.jpg$

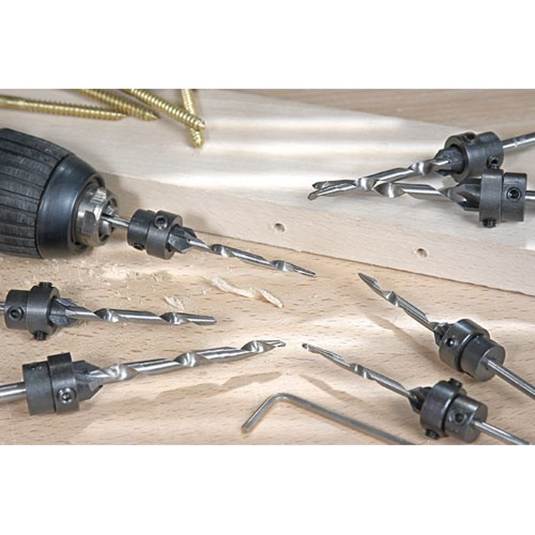

Key Features

· Drill, countersink and counterbore set

· Engineered to take secure depth collar

· Comprises 1/8", 9/64", 5/32", 11/64", 3/16", 3/64" and 7/32" diameter replaceable drill bits

Description

Our very popular drill/countersink/counterbore set that has been engineered to take a secure depth collar. With this feature, our set will drill, countersink or counterbore all in one operation to a high degree of accuracy. Set comprises: 3.2mm, 3.57mm, 3.96mm, 4.36mm, 4.76mm, 5.15mm and 5.55mm diameter replaceable drill bits.

GO UP

Grinders & its tools

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\20.jpg$ Warco Bench Polisher Grinder 6"

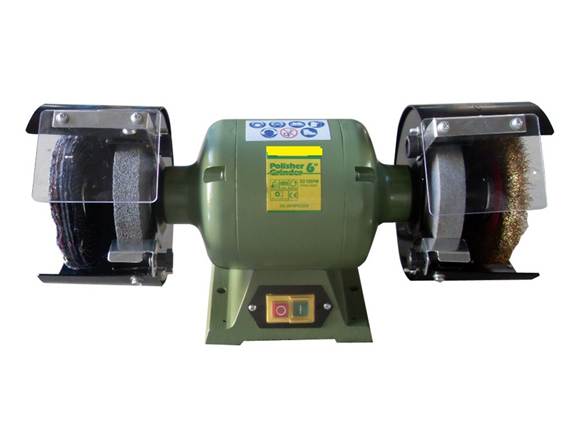

High quality polishing grinding machine.

Specification:

§ 350w motor

§ 6" diameter

§ Wheel size: 150 x 20mm

§ Spindle diameter: 12.7mm

§ Speed: 2,950 rpm

§ Weight: 12.7 kg

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\21.jpg$ Warco Polisher 8"

Very robust, high quality bench mounted polishing machine.

Not to be confused with DIY polishers, this machine has heavy duty construction for maximum reliability and long term performance.

The motor on this polisher can withstand temperatures as high as 200° centigrade before affecting the windings. For intensive use, we do recommend running for a maximum period of 30 minutes before allowing it to cool off and restarting again.

Additional mops also available.

Specification:

§ Wheel size - 200mm

§ Motor power - 750w

§ Diameter - 8"

§ Spindle diameter - 16mm

§ Speed - 2,950 rpm

§ Weight - 22.5kg

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\24.jpg$ Grinding Stone Wheels - Small Bench Grinder

Useful replacement grinding wheels.

Quality stone wheels.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\25.jpg$ Polishing Wheel Mop - Small Bench Grinder

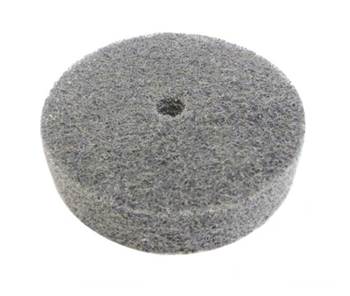

Polishing wheel

Useful replacement polishing mop

26.

$Description: Description: Description: Description: Description: C:\Users\Rauf Habib\Desktop\hardware accessories\26.jpg$ Wire Wheel Attachment - Small Bench Grinder

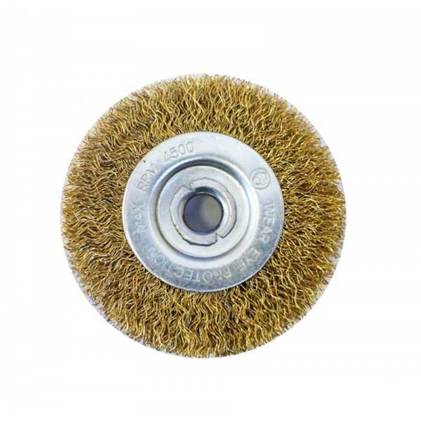

Very useful attachment, Straight forward to fit to your machine

Ideal for removing stubborn rust
