VTEC Solenoid/Spool Valve Filter and Valve Cover |
|
|
|
Found a leak in the VTEC Solenoid/Spool valve of our B16A EF. Removed and replaced the gasket. After repair the engine response improved. Valve cover was being planned for a replacement. Instead I decided to repaint it and just save the money for a bigger intake manifold. I used 2 cans of spray-on paint stripper and a can of blue paint with ceramic. |
|
|
|
 |
|
|
|
 |
|
|
|
|
|

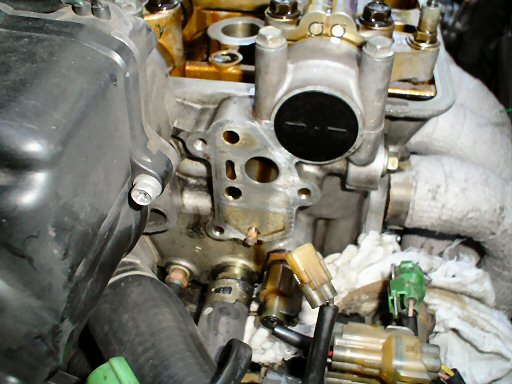

Head after spool removal. Had to tap the 3 bolt holes since someone previously over torqued the bolts.. |
|
|

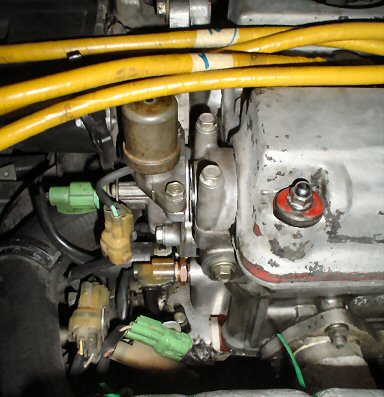

VTEC solenoid/Spool valve before removal. |
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|

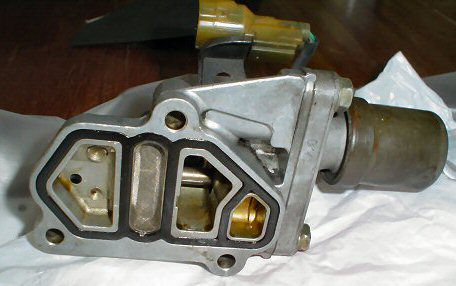

Backside of the spool valve showing the gasket. |
|
|

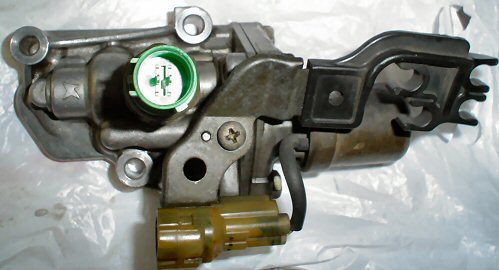

VTEC solenoid/spool valve. |
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|

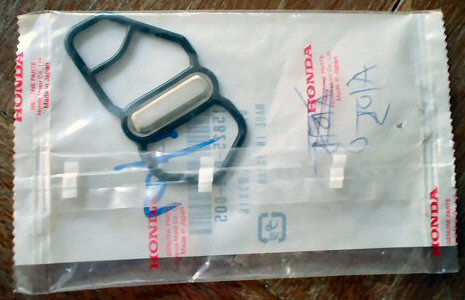

New spool gasket. New bolts also. |
|

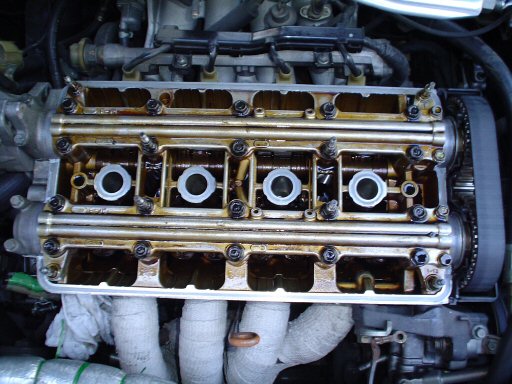

valve cover removed. |
|
|
|
 |
|
|
|
 |
|
|
|
|
|

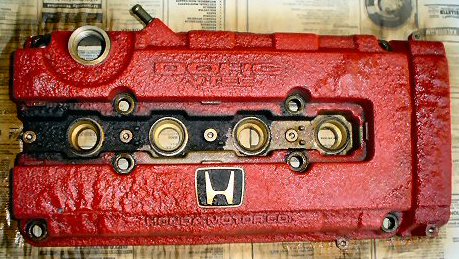

Valve cover after being sprayed with spray-on paint stripper. |
|
|
|

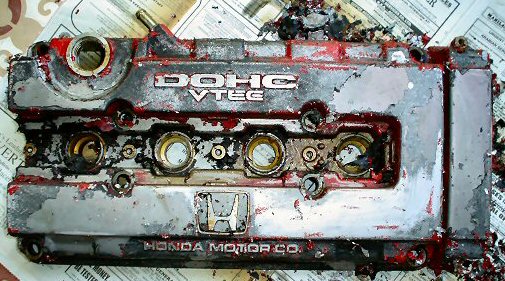

Stripped of paint. Found 3 layers of paint - red, silver and orig. black. |
|
|
|
|
|
