| 250CE Engine Overhaul |
|||||||||||||||||
| Here are some pictures of the engine overhaul of our 1972 250CE. Pictures will be updated as the work progresses. Thank you! | |||||||||||||||||
|
|
||||||||||||||||

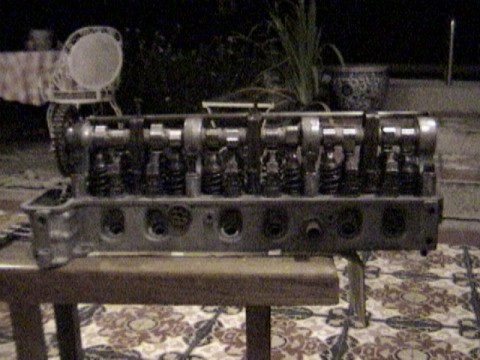

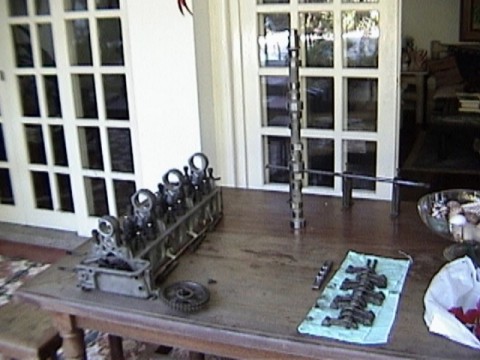

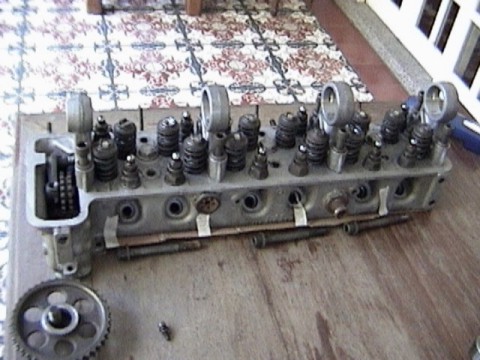

| The cylinder head after being refurbished. It has new valve guides, valve seals, and water jackets. Attached are the bearings, valves, and valve springs. | All cylinder head components before being assembled. The camshaft is seen standing vertically. | ||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
| Took me up to nightfall to bring all the parts of the cylinder head together | |||||||||||||||||

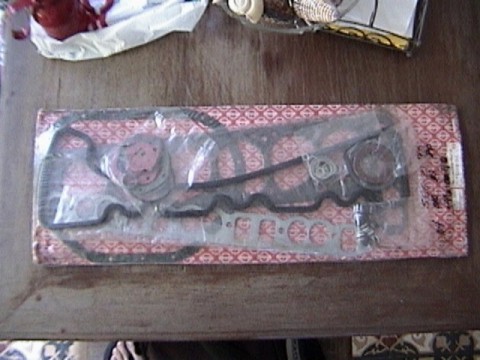

| Overhaul gasket kit for a W114 250 CE. It"s nice to know they're still being sold. | |||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
| The cast iron engine block of the 250CE | |||||||||||||||||

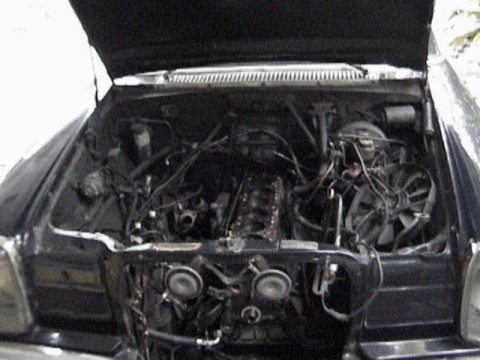

| Engine without the cylinder head and other components | |||||||||||||||||
|
|
||||||||||||||||

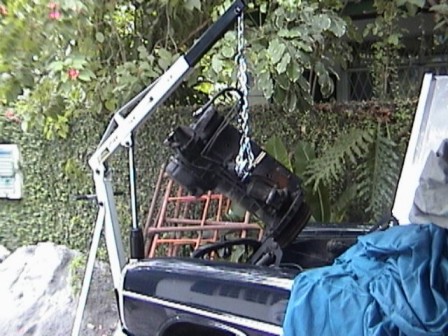

| Engine block being hoisted up. | Transmission was also removed and is slated to be overhauled. | ||||||||||||||||
