CFD-Rear Wing 1

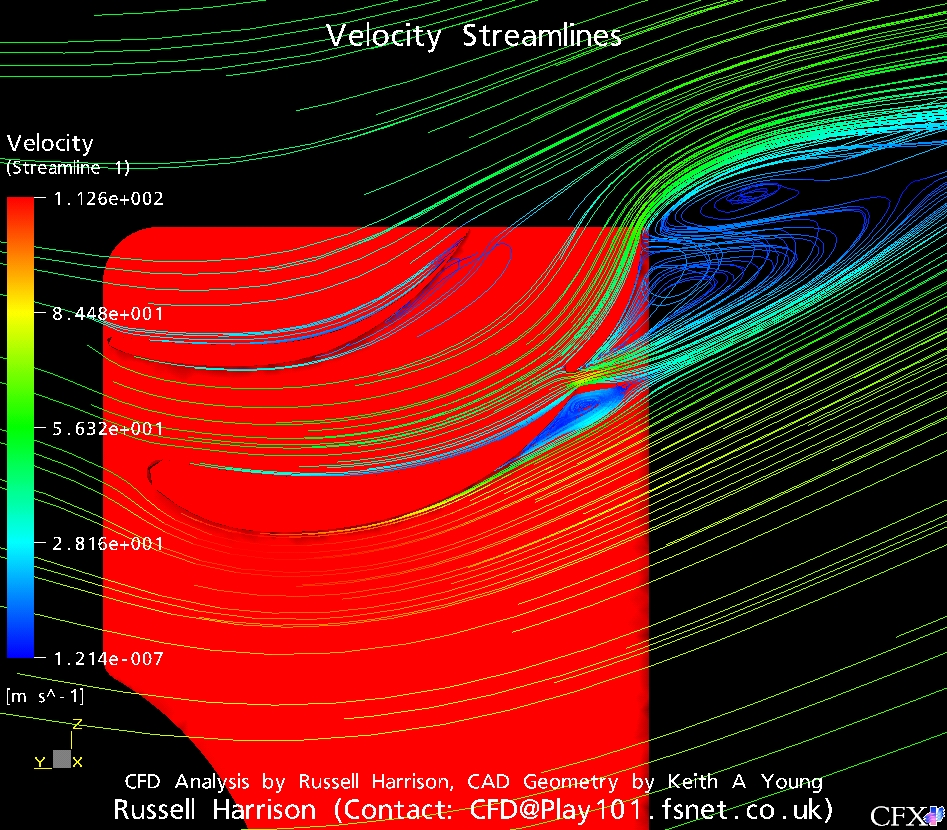

As you can see in this wing I cleaned up, it stalls horribly. Weird how the F1 rear elements look so verticle and still somehow work. The lower of the upper elements is pretty close to good, probably adding a gurney will clean up alot of its problems and maybe taking a way just a little camber, but that smallest element is a complete redo. You can see how much low pressure the largest element creats, so much in fact it reaches the top face of the lower element. If you are wondering what the dark triangle is at the front of the lower element, I am guessing Russ ran out of Mesh memory and had to make it with very large cells, but I dont know this for sure.

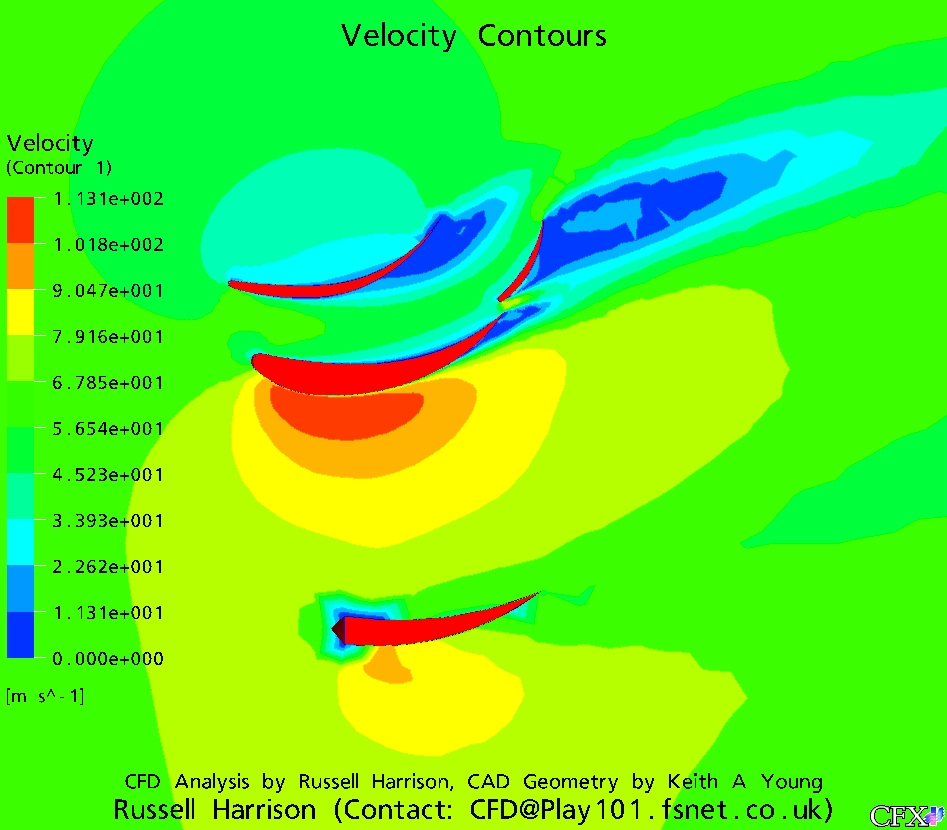

Again in this picture, the stall is large enough to reach out of the monitor and break my nose. Look at all the air flowing upward though under the lower of the top elements, incredible.

I am in the process right now of making a new rear wing which shouldnt stall, and definately not as much as this one. It probably wont create as much downforce, and it does not have proven wing profiles, but it should give better lift/drag i would hope. Hopefully Russ will be able to run it soon but i think he had some problem with his memory and cant run large files for a while :(. Anyway back to modeling and making more site updates.
