My Isuzu Pagasa
by Rory Esperanza
My personal A.U.V. (asian utility vehicle) was assembled starting July 1996 and was finished on 17 August, 1996. At first, it's engine was a Toyota 1C (1800cc diesel engine). It had a five-speed transmission with a toyota crown differential (10:43 ratio). It was fast but just after one year, it was belching smoke. On September, 1998, the engine had loose compression. I was offered two choices by my mechanic-friend, i could have it overhauled or just change engine. I have decided to change engine and it was an Isuzu C240. At first, i knew it will more torque but with lesser speed. But to my surprise, not only that it has more pulling power but with much greater speed, more fuel efficient and much more durable. Even with loads, i knew i have more confidence in driving my auv. I am very happy with my engine.

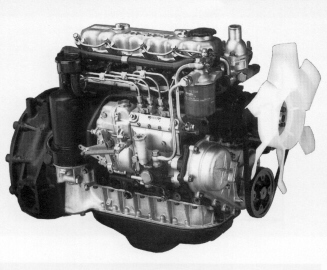

Isuzu C240 Indirect Injected Diesel Engine with a 5-speed transmission

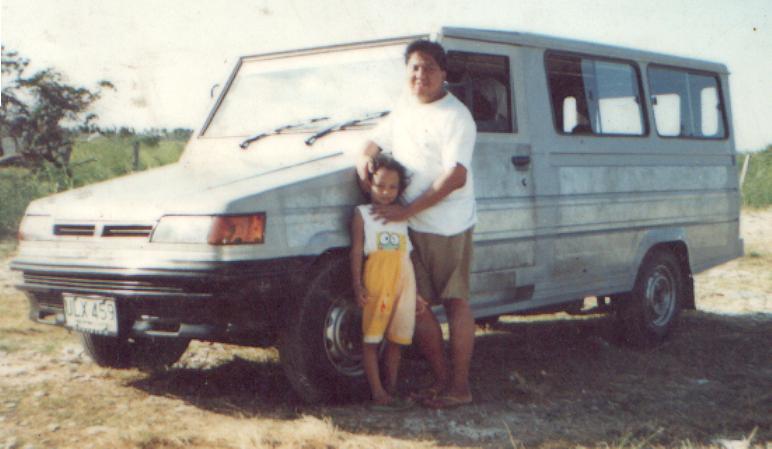

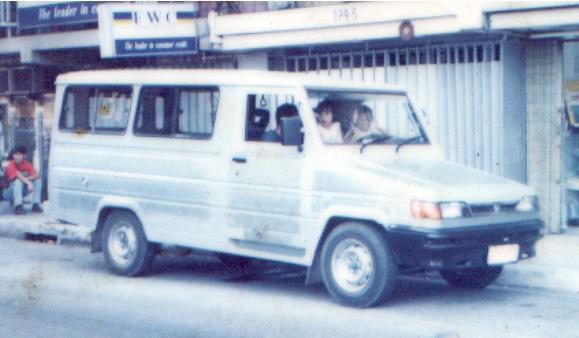

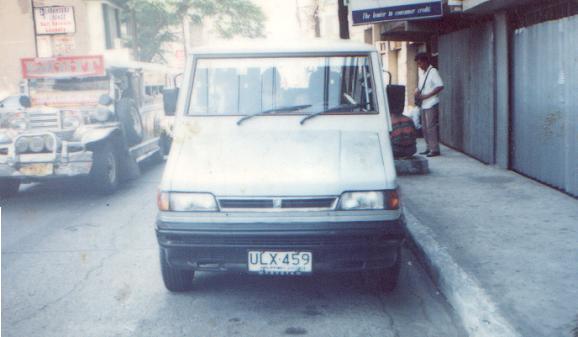

My AUV
Specifications
Engine: Isuzu C240 (2400cc), 4-cylinder, 4-cycle, water-cooled, OHV indirect injected
5-speed transmission
|
MODEL
C240 |
|
|
TYPE:
|
4 cyl., 4 cycle, water cooled, OHV, indirect
injected |
|
DIMENSIONS:
|
37.9 L x 21.1 W x 27.3 H |
|
DRY
WEIGHT: |
491 lbs. |
|
MAX
OUTPUT: |
56 BHP @ 3000 RPM |
|
CONT.
OUTPUT: |
49 BHP @ 3000 RPM |
|
MAX
TORQUE: |
108 lb.-ft. @ 2000 RPM |

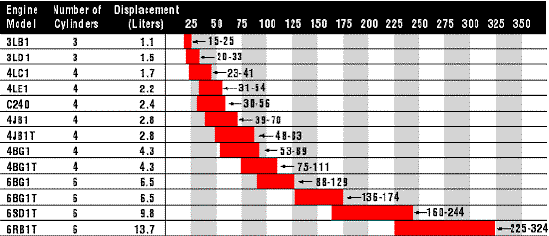

C-SERIES. These workhorse engines deliver proven durability and reliable, low maintenance operation for a variety of industrial applications. Rated power from 32 hp up to 56 hp.
|
C240 > MAIN SPECIFICATIONS: |
|
|
|
|
|
Type |
4 Cylinder, 4 Cycle, Water Cooled, OHV Indirect Injected |
|
Bore & Stroke |
3.39 x 4.02 in. (86 mm x 102 mm) |
|
Piston Displacement |
144 cu. in. (2.4 liter) |
|
Compression Ratio |
20:1 |
|
Dry Weight |
491 lbs. (223 kg) |
|
Dimensions - L x W x H |
31.5 x 21.1 x 27.3 in. |
|
|
(800 x 535 x 694 mm) |
|
Coolant Capacity (Block) |
5.5 qts. (5.2 liter) |
|
Lube Oil Capacity |
4.5 qts. (4.3 liter) |
|
Engine Rotation |
Counter Clockwise From Flywheel |
|
|
|
|
MAIN FEATURES: |
STANDARD: |
|
|
|
|
Alternator A.C. |
12V-35A |
|
Voltage Regulator |
12V |
|
Starter |
12V- 2 kW Gear Reduction |
|
Exhaust Outlet |
Vertical-Up-Front |
|
Air Inlet |
Vertical-Up-Center |
|
Flywheel Housing |
SAE #4 |
|
Flywheel |
For 10" Overcenter Clutch 2 Piece |
|
Oil Pan |
Center Sump 30� Inclination |
|
Water Outlet |
Vertical |
|
Fan |
15 in. (380 mm) Blower |
|
|
|
|
INDUSTRIAL RATING* |
|
|
|
|
|
Intermittent |
56 BHP @ 3000 RPM |
|
Continuous |
49 BHP @ 3000 RPM |
|
Max Torque |
108 lb.-ft. @ 2000 RPM |
|
*SAE J1349 Gross BHP |
|
|
Specifications subject to change without notice. |
|
|
|
|
|
SPECIAL FEATURES: |
|
|
|
|
|
* Swirl Type Combustion Chamber |
|
|
* Glow Plug Starting Assist |
|
|
* Replaceable Cromard Dry Liners |
|
|
* Underground Mine Certifications Available |
|
Front Suspension: L-300 suspension
wish-bone and coil spring with double acting shock absorbers
Rear Suspension: Isuzu C-190 leaf springs
Differential: Toyota Crown 11:41 gear ratio
Steering: Toyota Liteace Rack and Pinion
