Electro Tools Design Program
Worksheets :
- Series <> Parallel;

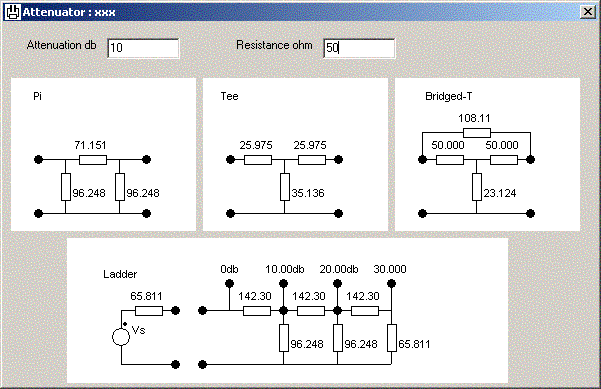

- Attenuator;
- LCR - Tuned Circuit;
- Noise - Power;
- Bipolar Bias;
- CMOS Gate Oscillator;
- Series/Parallel resistors make special values;
- RF path transmission loss;
- Matching Networks;
- Single layer solenoid Inductor design;
- Least Squares Curve Fitting;
- Power supply - output voltage, ripple, regulation, doubler & other configs;
- Bode Diagram - interactive;
- Text Editor
System Requirements :
- Runs on Win95, 98, ME, NT4, 2000, XP. Pentium 100 with 16M RAM or better.
- Under WinXP, log on as Power User or Administrator before running Electro Tools.
