How To Radio Control Servos Cheaply
Tips On Using The Servo Controller Chip
The Servo Controller Chip is meant to be used in robots where a servo has been changed so that it can run like a motor. You can find many sites that will show you how. Use the joysticks on the "VEX" transmitter for that.
Use the buttons on the "VEX" transmitter to controller any unchanged servos in your robot. The buttons will give you better control over the servos than the joystick.
You can use a wire wrap dip socket cut in half as a male and female connector for the servos. A "VEX" servo and motor need the female connector. Make sure that the wire wrap socket are NOT the round hole type.

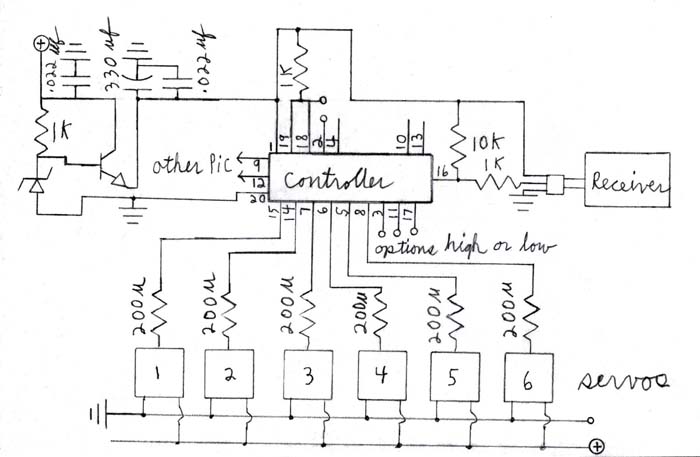

If you plan not to use a "VEX" transmitter with the Servo Controller Chip, you must tie the 10 K resister to ground instead of tieing it to the + 5 volts.
