| Stuff to Get: |

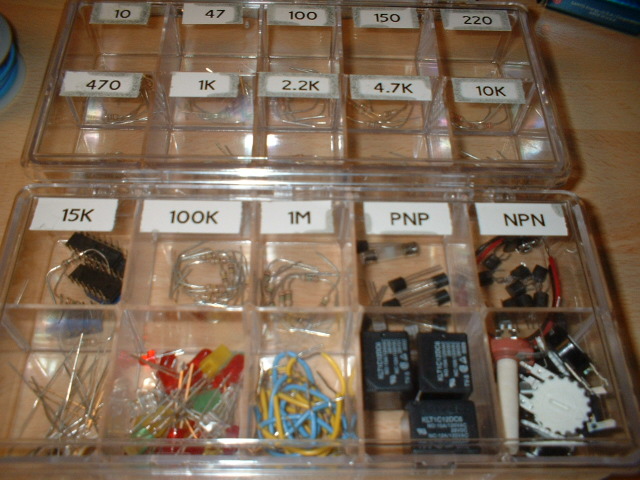

| Solderless Breadboard(~500 tie points)- $13 Resistors(100 assorted, 1/8W)- $6 LEDs(20 assorted)-$2.50 Photo Cells(5 assorted)- $2.50 Potentiometers(12 assorted**)- $3 Comparator(s)(LM339 quad 14 pin DIP)- $1 (each) Jumper Wire Kit*** (140 assorted sizes)- $6 **Legs are too wide to fit in solderless breadboard, however, you can easily solder on some extra wire to make it fit ***You can buy a spool of wire, and cut it yourself, however, you must get 22 AWG solid wire |
| Line Following |
| Also: |

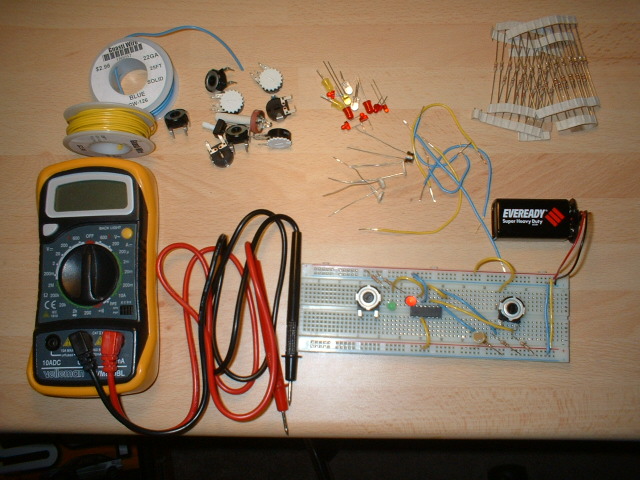

| Multimeter: It is very important that you get one that can measure voltage, current, and resistance. Digital is prefered for easy usage, but not required. Mine was $15, and its perfectly fine for most applications. Not only is it important that you have a good one, you have to learn how to use it properly. Both are equally important, so spend plenty of time familiarizing yourself with your multimeter. Soldering Iron (and accessories): Are not required with any of the above, but are good to have as with any electronic projects. Switch: Not necessary, but helps a lot after plugging and unplugging a wire 25 times |
| Prices are from RadioShack |
 |
 |
 |
 |
 |
| Goals: |
| First get electronics wired, then build the frame for the robot. Use relays to trigger two small motors which drive the robot and use tank steering. |
|
|
 |
