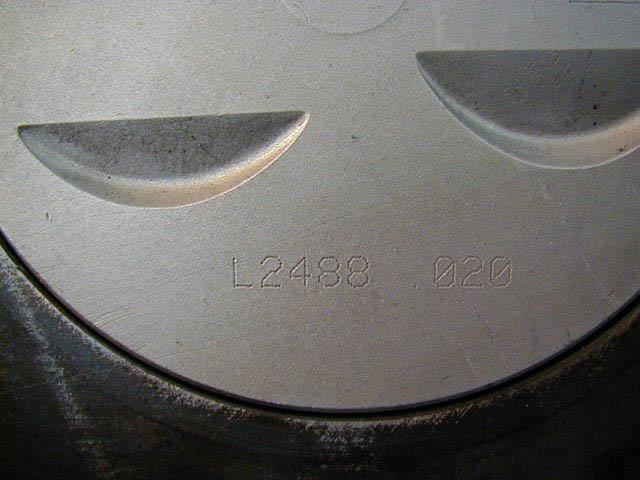

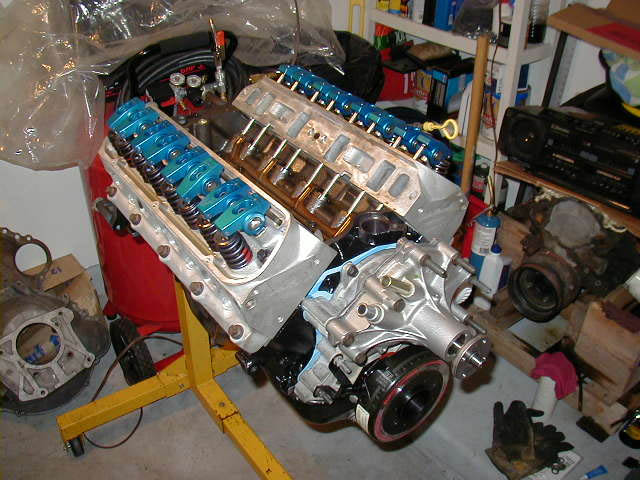

| Balancd 302 Bored .020 to a 305 c.i.d. Shortblock: FMS Lifters Crane Timing Chain FMS Hardened Pushrods Stock Rods with ARP Bolts Stock Crank with ARP Main Bolts Clevite Series Bearings Throughout Total Seal Gapless Rings Flycut TRW L2488 Pistons .020 over Felpro 1250 Intake Gaskets Felpro 1011-2 Head Gaskets Approx. Compression Ratio 10.1:1 Custom Ported/Polished FTI GT-40 Intake Custom Ground FTI Cam: 555/.560, 224/228 @ .050" Air Flow Research 165 Heads: Chamber Size 58cc FMS 1.6 Roller Rockers Melling High Pressure Oil Pump FMS Hardened Oil Pump Shaft FMS 3.73 Gears FMS Heavy Duty Clutch Custom Engine Tuning via TwEECer Multi Spark Discharge 6AL Blaster III Coil Stewart Water Pump |
ATI Super Damper Polished 70 mm BBK Throttle Body and EGR Spacer Bullet 75 mm MAF - Chrome 30# Injectors Exhaust: 1 5/8" Mac Full Length Exhaust with Offroad H-pipe Felpro 1415 Gaskets 2 Chamber Flowmaster's 2 1/2" BBK Tailpipes SVO 2-core, Spit-Shined Aluminum Radiator Suspension: Koni, Red 5 Way Adj. Shocks and Struts Mac 1 1/2" Lowering Springs HPM Mega Bite Jr. Lower Control Arms JRB Subframe Connectors Lakewood Driveshaft Safety Loop 155 lph Fuel Pump HyperTech Adj. Fuel Pressure Regulator Autometer Gauges: Electric Oil Pressure w/ Low Pressure Warning Light on A Pillar Electric Water Temp. on A pillar Mechanical Fuel Pressure on Cowl |
 |
 |
 |
 |
||
 |
 |
 |
 |
||
|
 |
 |
 |
||
 |
 |
 |
 |
||
 |
 |
 |
 |
||
 |
 |
 |
 |
