BMW F650GS Turn Signal Switch
I would like to tinker a turn signal resetting for my F650GS, whereby it should be really a tidy solution. Alternatively I would like to refer to the turn signal reminder
http://www.baas-parts.de/produkte-main-e.htm

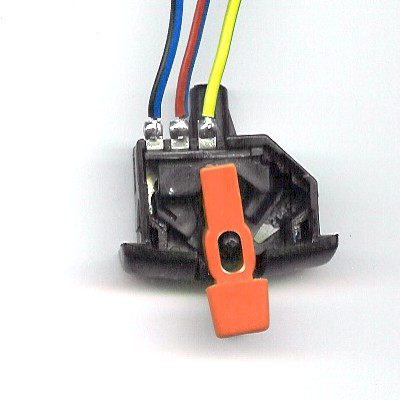

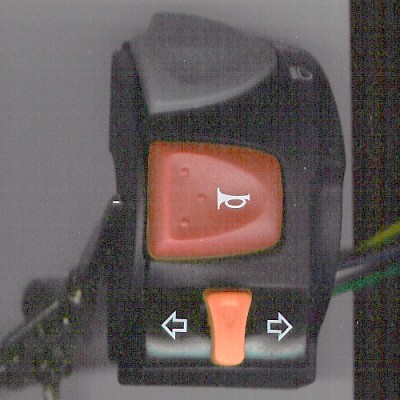

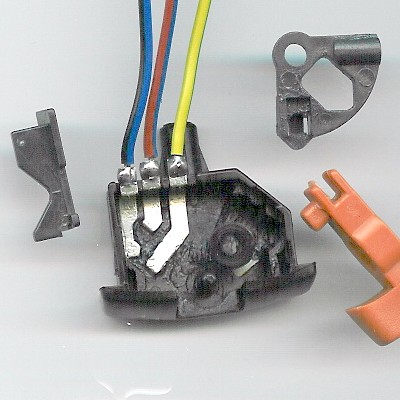

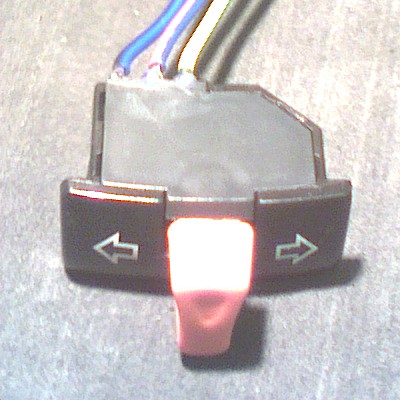

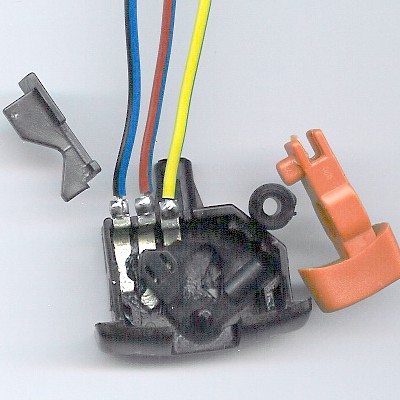

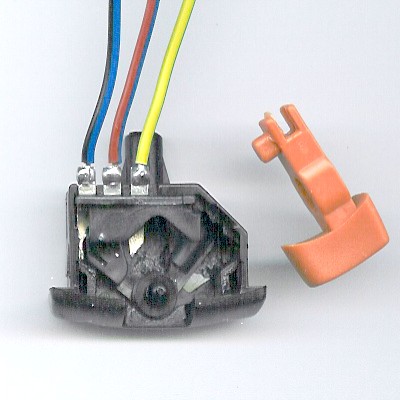

The original BMW switch must be set manually into the state of rest, which runs off in the switch mechanically. A connection diagram can be found under
http://faq.f650.com/GSFAQs/Photos/Documentation/Diagram-III.pdf
The given structure makes thus the use of prefabricated systems not possibly.
My solutions are the following:
1.) One replaces the original switch by 3 push-buttons (2 x 1-pole for left/right, 1 x 2-poles for resetting). Thus one could use the existing wiring and would have to build a new electronic. There it would be then also a little thing to along-integrate a hazard warning flasher. The problems are that it seems not so easy to find fitting push-buttons. Further one would have to change a lot at the central wiring
harness.
2.) One leaves the original switch and installs a solenoid/servo under it. Associated electronics would get its instructions of the turn signal lines as well as of movement alarm units. The power could be got from the head-light switch. Turning off the turn signal could take place then through impressions by means of the
Servos.
Have you in addition got some ideas? In principle solution 2 pleases me better, since an interference would be void into the wiring
harness.
