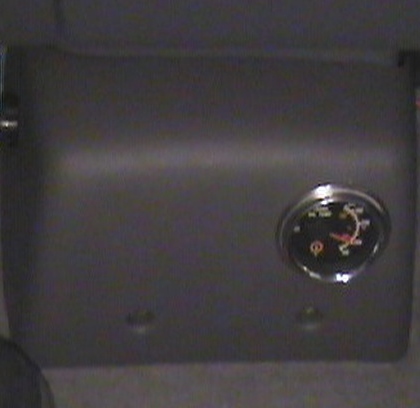

| Transmission Temperature Gauge Install |
| Stewart Warner gauge and sending unit |
|
 |
 |
 |

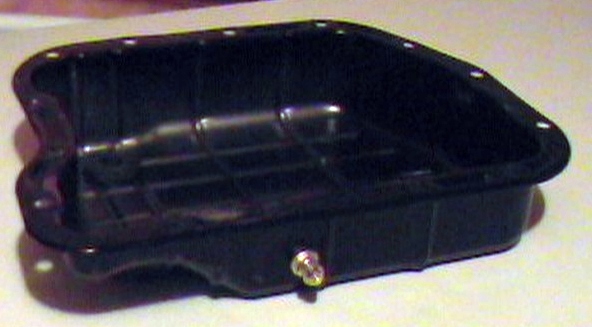

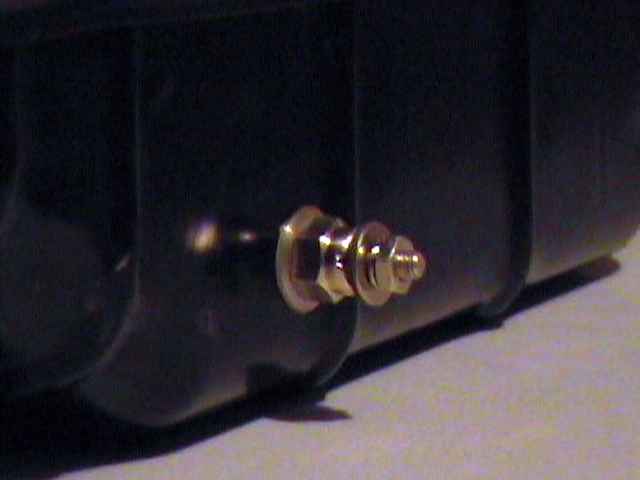

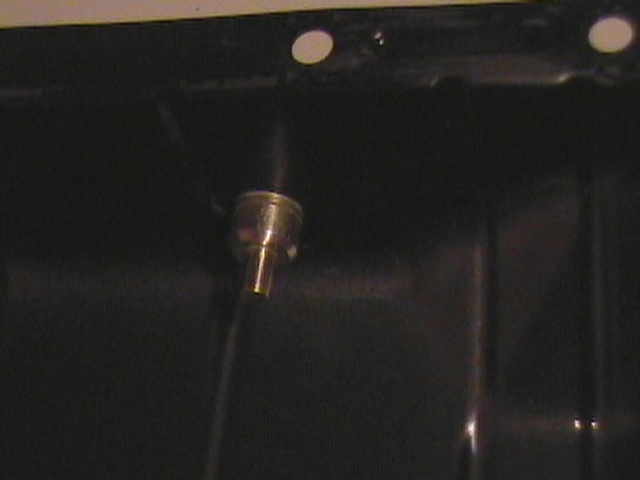

| The sending unit has an 1/8" NPT thead so I machined some C36000 brass rod and tapped it 1/8" NPT. I also made a set of washers for insde and outside and used gasket maker in between the pan and the washers. |
|
