they have self sealing rubber gromets so no adhevise or sealents were required.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||

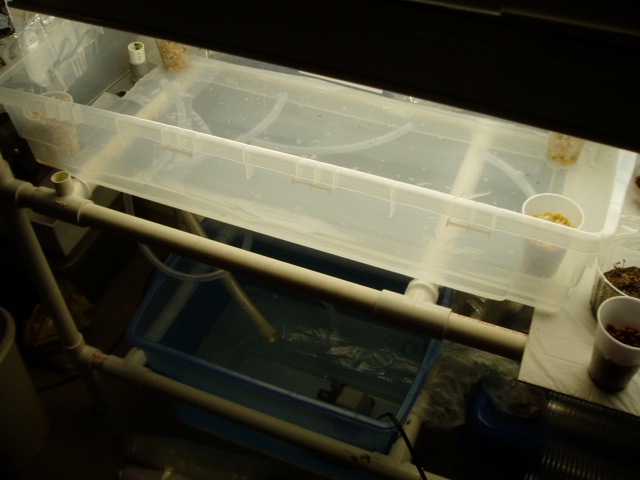

| < you can barely see the resivoir in the shaddows under the flood tray. | ||||||||||||||||||||||||
|
||||||||||||||||||||||||

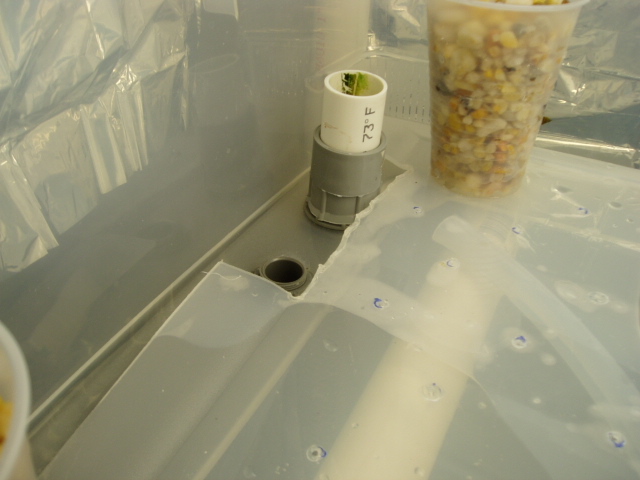

| here is an excelent pic showing the flood and drain fittings. the pvc pipe piece isnt glued in so the water depth is adjustable. the plastic that is cut out is the false floor (made from the lid of the container cut to size) and it rests on some pieces of tubing. it is there to keep the plants from sitting in standing water. | ||||||||||||||||||||||||
|
||||||||||||||||||||||||

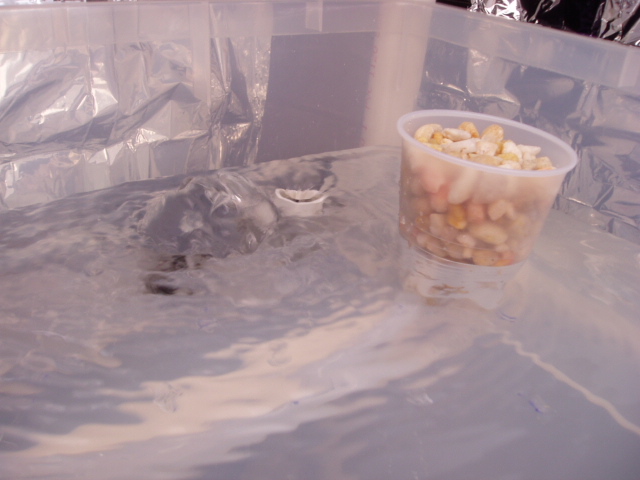

| <flooding | ||||||||||||||||||||||||
|
||||||||||||||||||||||||

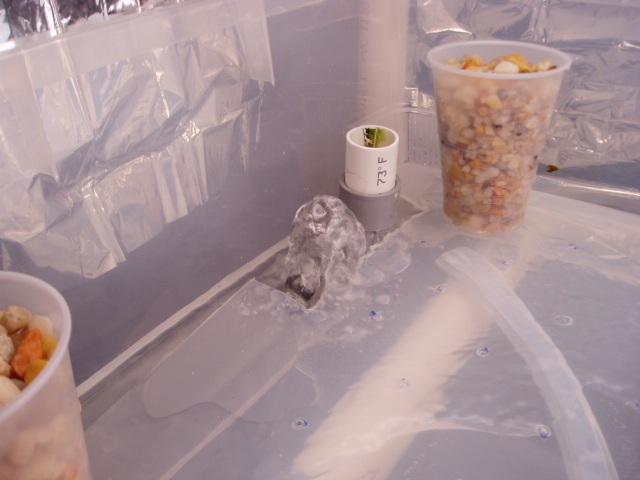

| ^ once it has flooded the overflow keeps it from running the pump dry or overflowing onto the floor. this pic shows the return drain in action. | ||||||||||||||||||||||||
|
||||||||||||||||||||||||

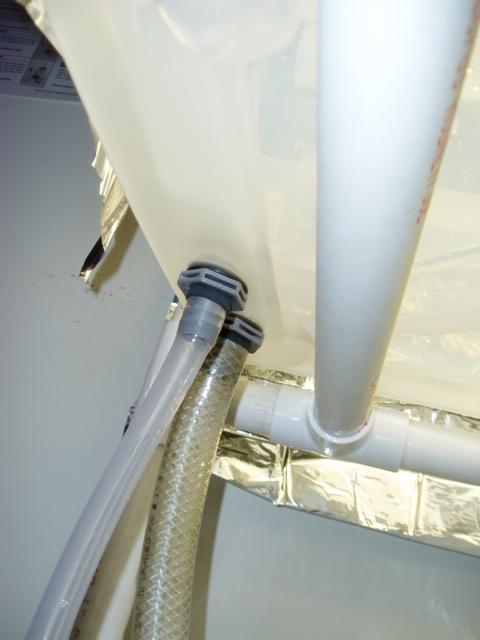

| < here are the flood and drain fittings from the bottom. if you dont have any i can get them and send them to you for $10 shipped (in the US only) this is not a buisness venture, only a way to help you out if you cant get them. they have self sealing rubber gromets so no adhevise or sealents were required. |
||||||||||||||||||||||||
|
||||||||||||||||||||||||

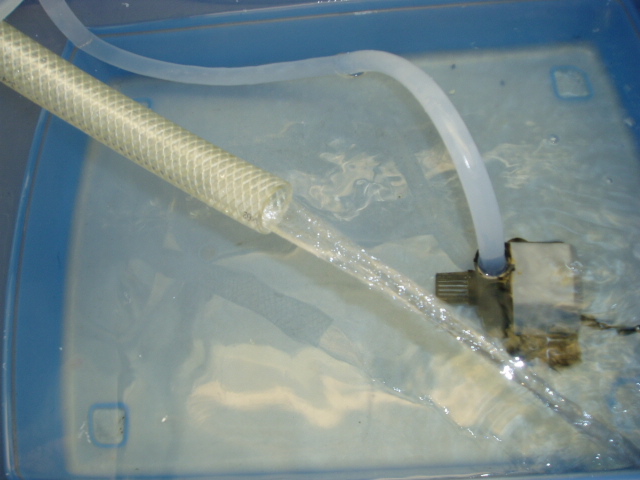

| The water from the overflow returns back to the resivoir by graviy. here also is pictured the pump.it is 130 GPH but you could use as litle as 60GPH assuming the umps head was high enough to flood your tray. | ||||||||||||||||||||||||
