| < Holes burned in lid of the resivoir | ||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
| Resivoir lid painted black to match > and to block light |
||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
| < Resivoir and lid blacked out, < Drip Manifold made from 1/2" PVC pained black (make sure to mask off ends first so glue can be applied) |
||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
| Dry fitting the drip manifold together > make sure the ends are sanded to rough them up before gluing. |
||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
| < Holes are burned into the bottom of the top container. these holes don't have to line up with the holes in the lid, but make sure they will not become clogged with roots. | ||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||
| the drip tubes are glued into the drip > manifold before the elbow is connected to the end. the endcap has already been glued onto the right end ofthe drip bar. | ||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||

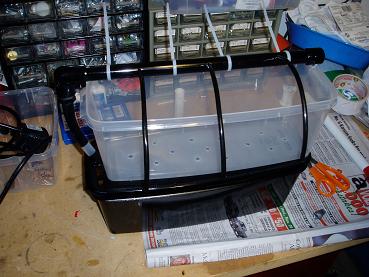

| < The drip manifold is all glued together now and painted black to prevent light leaks. the 1/2" tube that runs from the pump to the drip bar is paineted as well leavign only a small window to view the nutrients. the whole drip assembly is afixed with 4 "zip-ties" through holes burned in the lip of the plastic container. you can see the holes burned into the bottom of the plastic piece. |
||||||||||||||||||||||||||||||||||
