Great Division


II:     Great Division
        16 stops, 23 ranks, 1366 pipes
        3 1/4" pressure, screened in

    16  Sub Principal           61
    16  Bourdon                 61
     8  Principal               61
     8  Fl�te Harmonique        61
     8  Bourdon                 61
     4  Octave                  61
     4  Fl�te                   61
 2 2/3  Quint                   61
     2  Fifteenth               61
     2  Spire Flute             61
  IV-V  Fourniture              281     2'
   III  Cymbale                 183     1'
II-III  Tertian                 159     1 3/5'
    16  Bombarde                72
     8  Trompette               --      16' Bombarde
     4  Clarion                 61

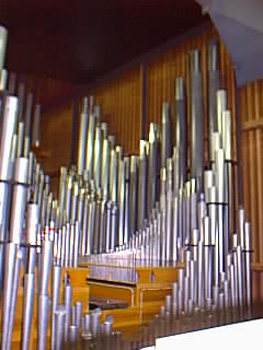

Pipework excluding the Trompette. The biggest pipes in the back are of the 16' Sub Principal.

Note the biggest pipes of the pedal division in the background along the wall.

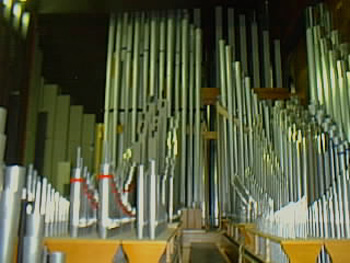

Now you can see the Trompette in the foreground.
The 8' Principal is along the front wall of the case (background).
