| RC SOARING HK |
 |
 |
   |
 |
 |
|
|
|
| Parachute Trooper : |
| A great little toy, you can drop parachutes, or drop bombs like bits of balsa. I've never dropped a parachute & caught it on the same flight, Been close though.........about 5 feet away. A couple of times other people will catch it but only if aimed spot on. REALLY FUNNY. |
 |
 |
 |
 |
 |

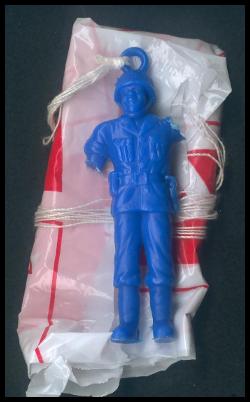

| This is my trooper, He had to lose his arms to fit into the bomb-bay. This guy's had 4 flights & still has'nt quit his job...!! |

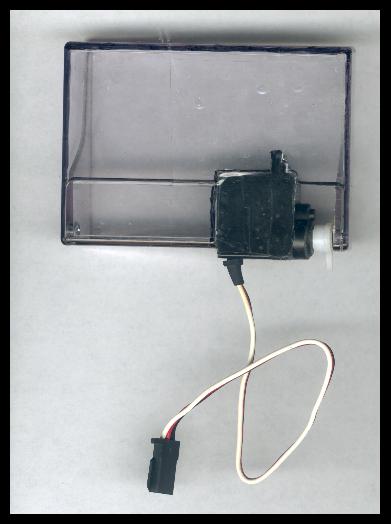

| A top view of the Bomb-bay, It measures about 3x2x.5 inches. Weighs <10grms. It simply plugs into your recievers throttle. Use like a normal trottle, Closed is closed, Open is open... |
| Just to give you some scale, The trooper comes in a pack of 3 so they last a few flights before losing 'em. |

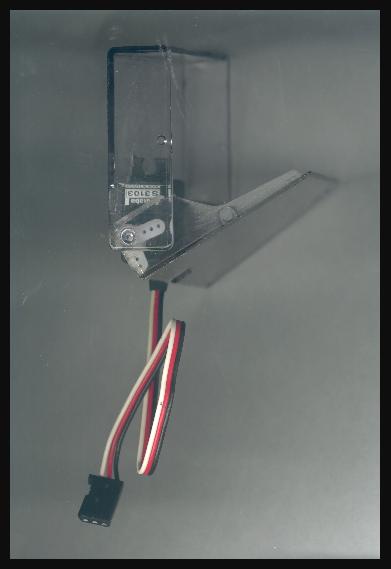

| This is before covering & glueing. You need a mini size servo & a mini view-cam tape cassette box. Glue the servo so it is only attached to the base of the box & not the door. Then glue the servo arm to the door only. Simple to align it all, look at the photo on the left. |
| Use you trim on the "throttle" control to close the door (not to tight). Set the trim so the servo is silent not buzzing. It is very important to cut a few holes in the cassette box for the servo screw extension to slot in. This makes for a much stonger bomb-bay. |
 |
 |
 |
