Span: 34"
Length: 22'
Wing Area: 175 sq. in.
Weight: 3.5-4 oz
Channels: 2 (R,E) requires v-tail mixing
Covering: Ultra lightweight film like Nelson Litefim, Oracoverlite, or Litespan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Plans now available for download | ||||||||||||||||||||||||||||||||||
| Davy Hand Launched Glider | ||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
| A small easy to transport HLG. Built of balsa with a carbon fiber spar and fuselage boom. Fast building; can be built from scratch in a day. Off the shelf sub-micro radio gear. Tow it aloft with a small powered plane, or just give it a good toss. Weighs about 4 oz rtf. | ||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||

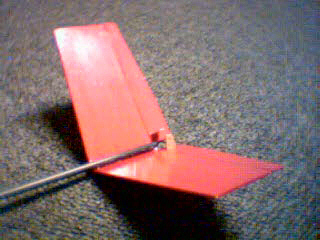

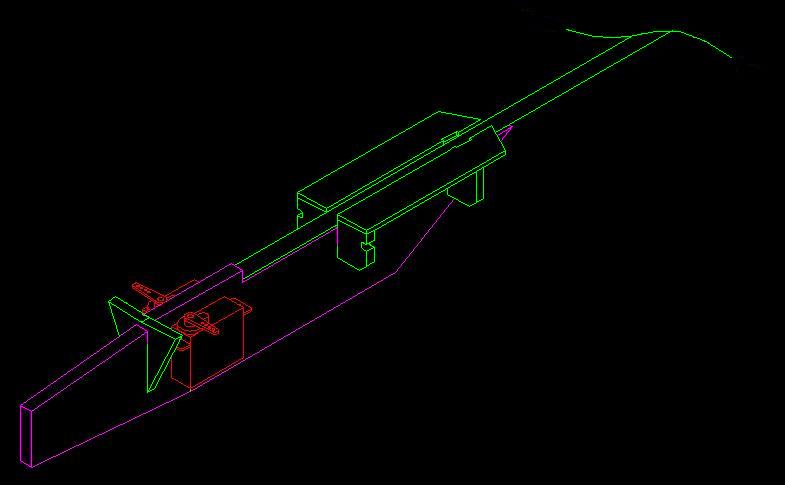

| 1/16" sheet balsa speeds construction time and is stronger than a stick built tail. | Forward Portion of the Fuselage shows the wing mount and servo's. A balsa pod covers the servos and other electronics. | 3/16" Carbon Fiber tube spar is strong and light. Balsa construction throughout yields a low cost airframe with good performance. | ||||||||||||||||||||||||||||||||
| Specifications: Span: 34" Length: 22' Wing Area: 175 sq. in. Weight: 3.5-4 oz Channels: 2 (R,E) requires v-tail mixing Covering: Ultra lightweight film like Nelson Litefim, Oracoverlite, or Litespan |
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
| Download Davy plans in .dxf format | ||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
