737 Throttle Quad Assembly |
|
|
|
Since i don't have money trees in my backyard, i decided to make my own 737 TQ from wood and some metal to save a BUNCH of money. |
|
|
|
This the 1st stage of completion. TQ's wired and functional and working really nice. |
|
|
 |
|
|
|

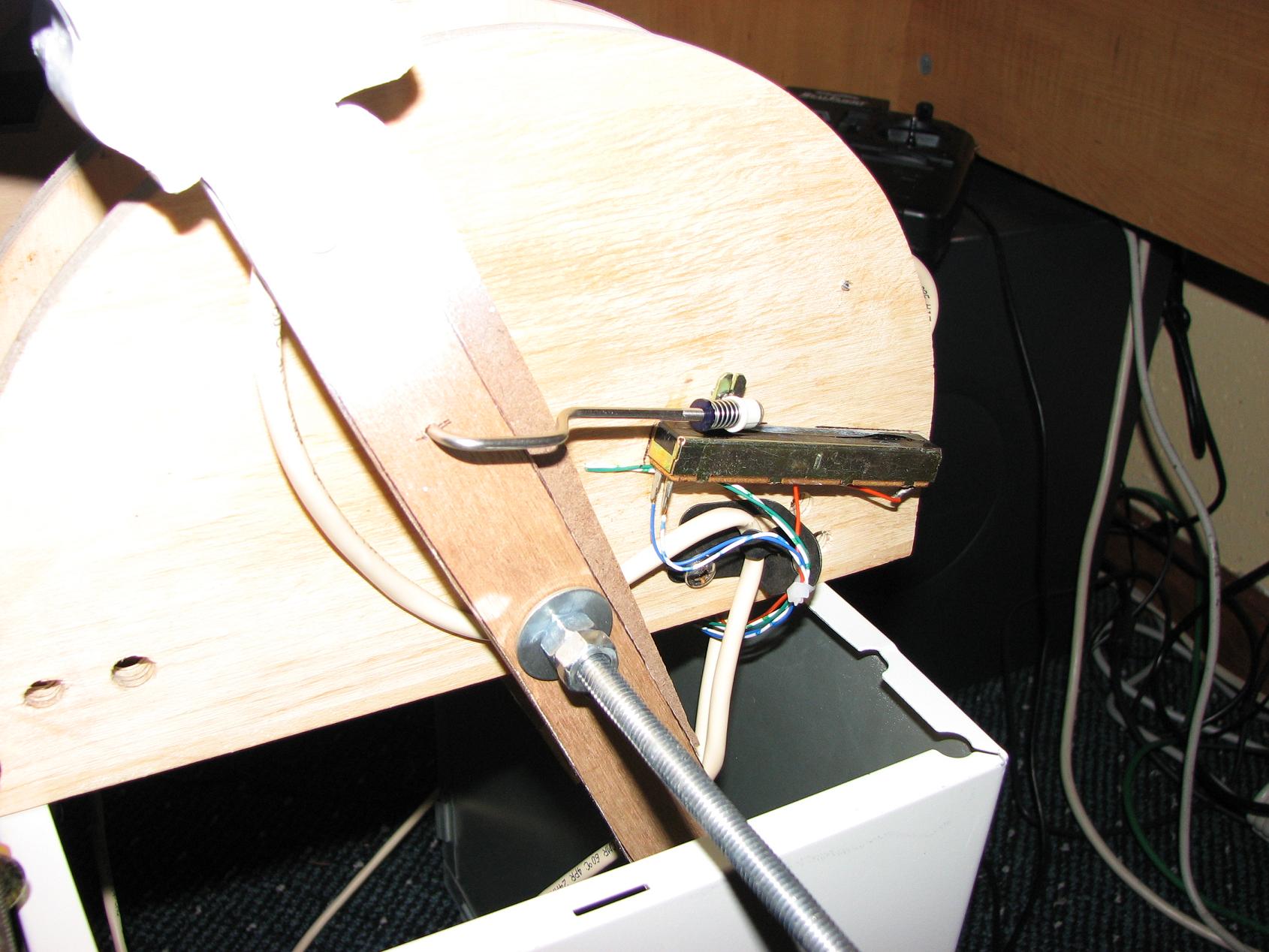

These are quality 100K pots used in simulator enviroments. Ball link is from Dubro using 4-40 rod. Action is very smooth and realistic feeling. |
|
|
 |
|
|
|

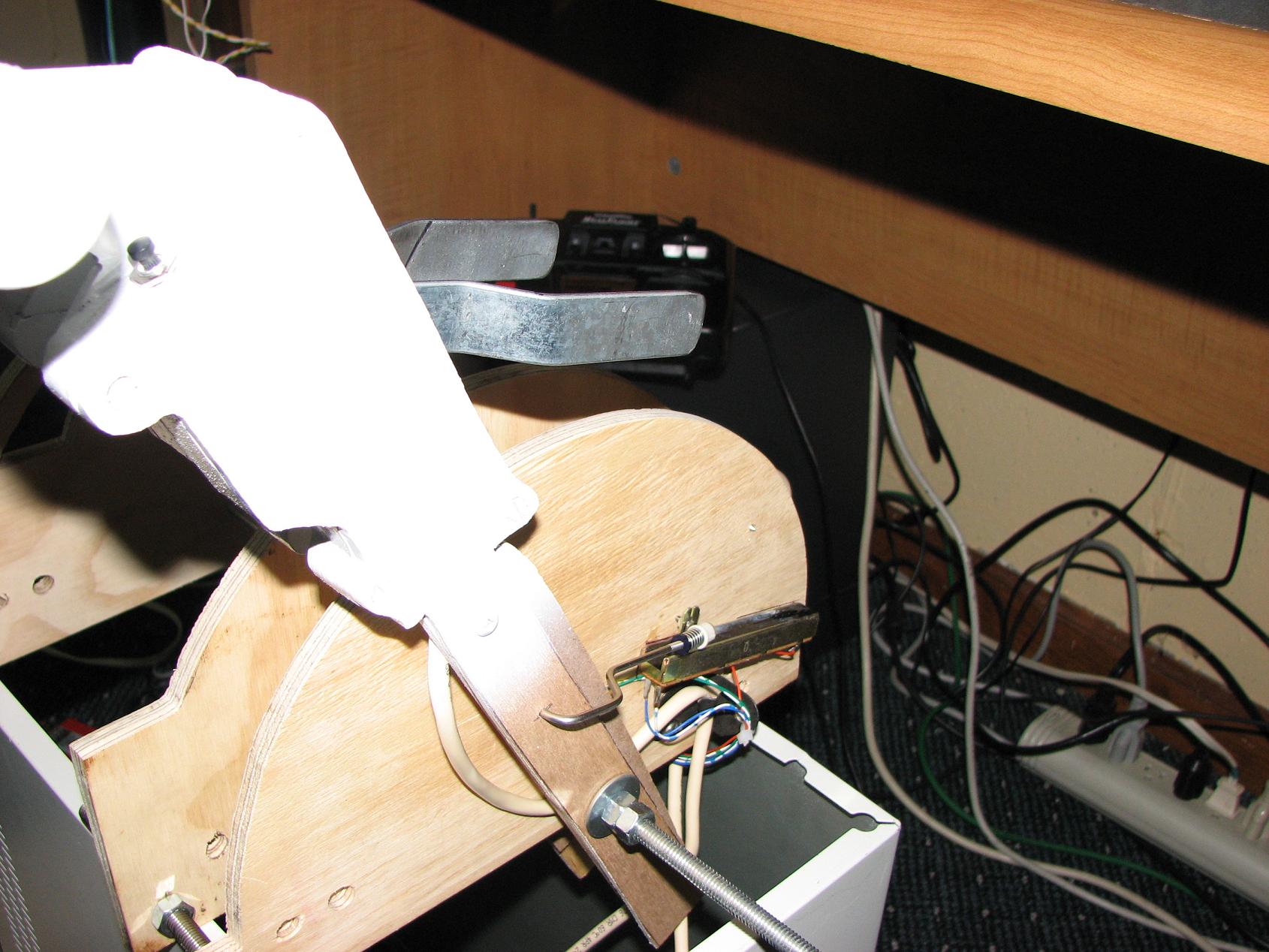

Side shot of Handle #2 and reverser arms that function as well. |
|
|
 |
|
|
|

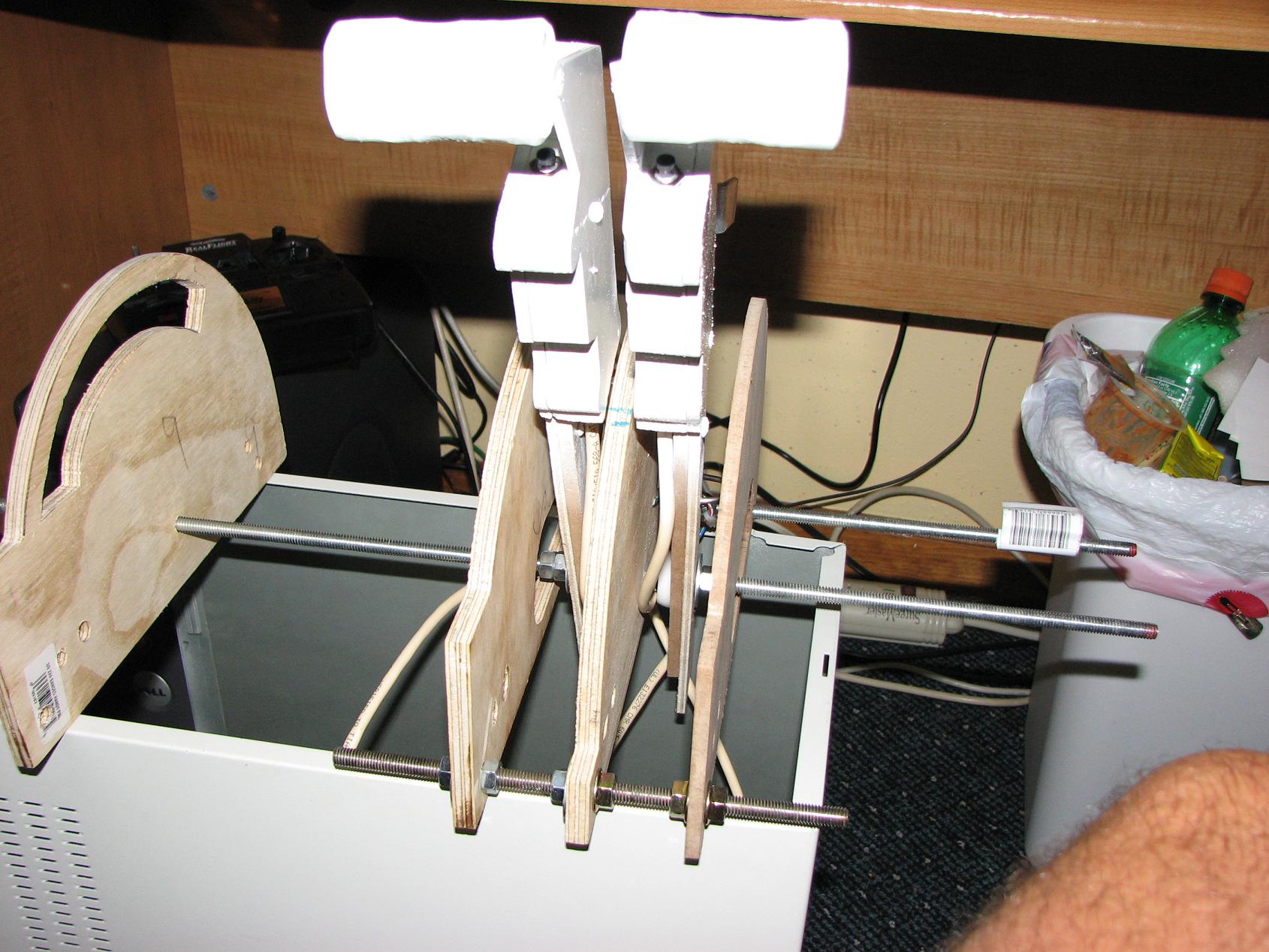

Overall shot showing both handles, TOGA switches, and general layout. The knobs are temporary till i get the repo ones from Simparts.de Next up is the spoiler lever, then the flaps handle. |
|
|
 |
|
|
|

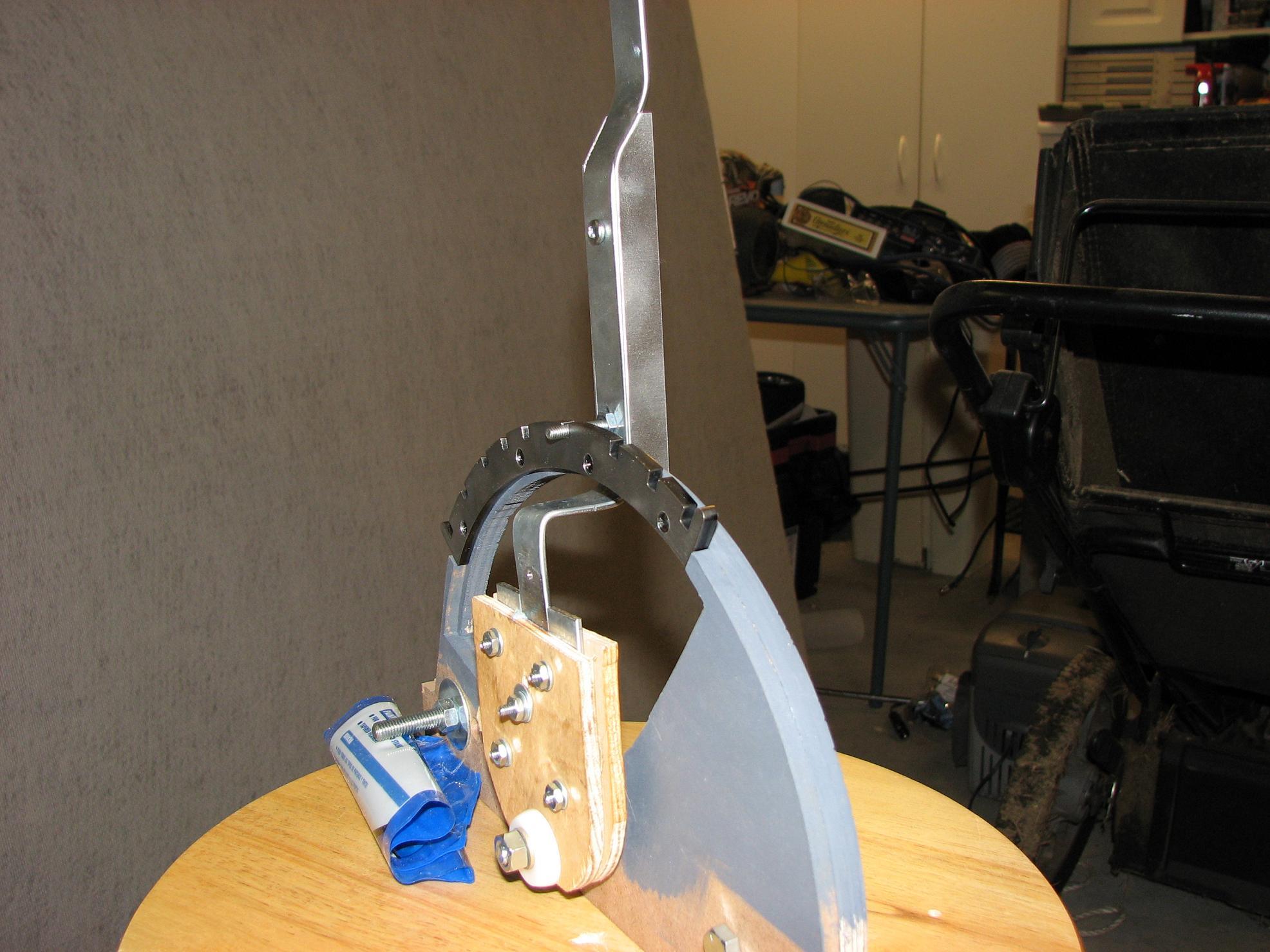

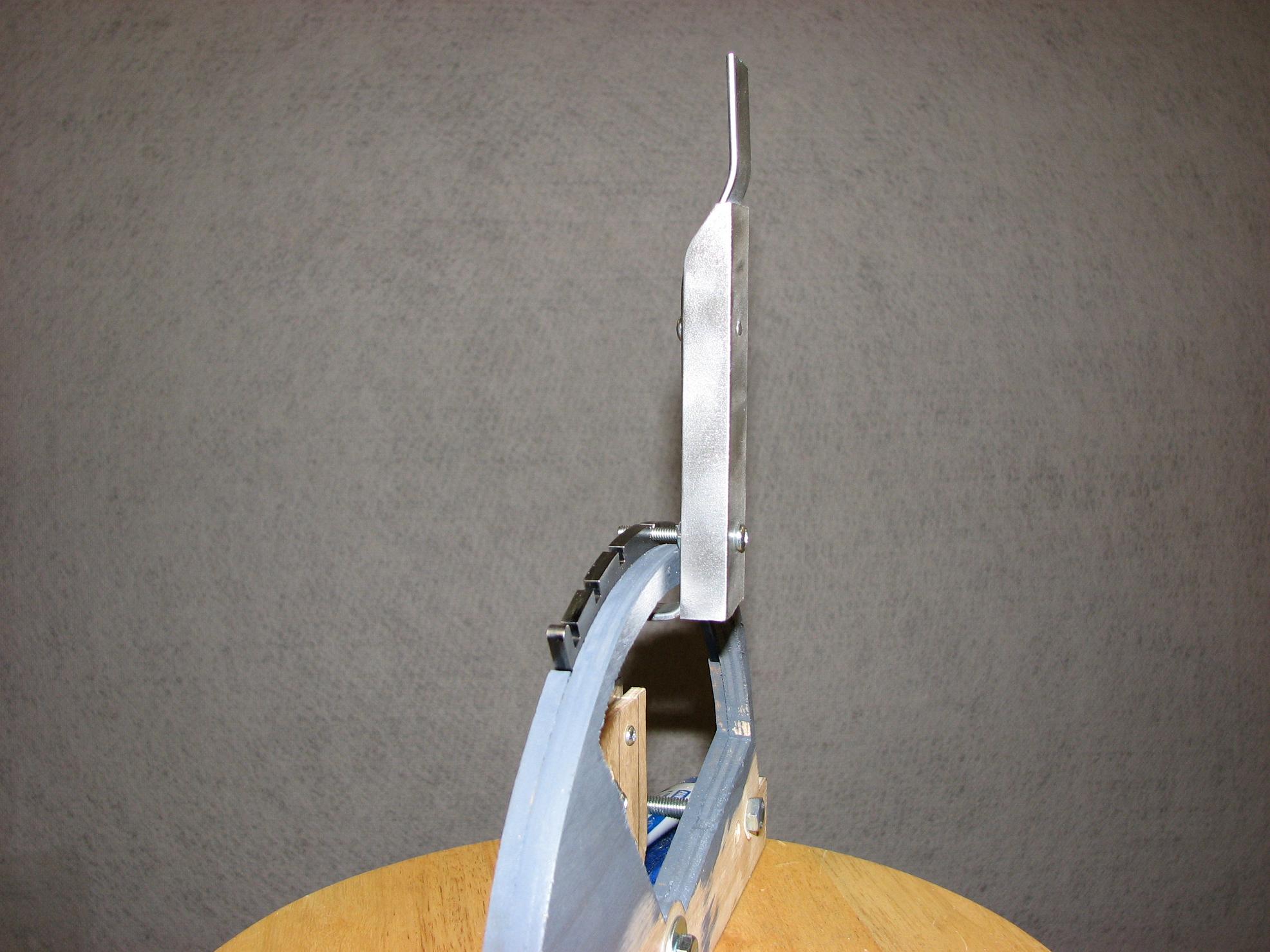

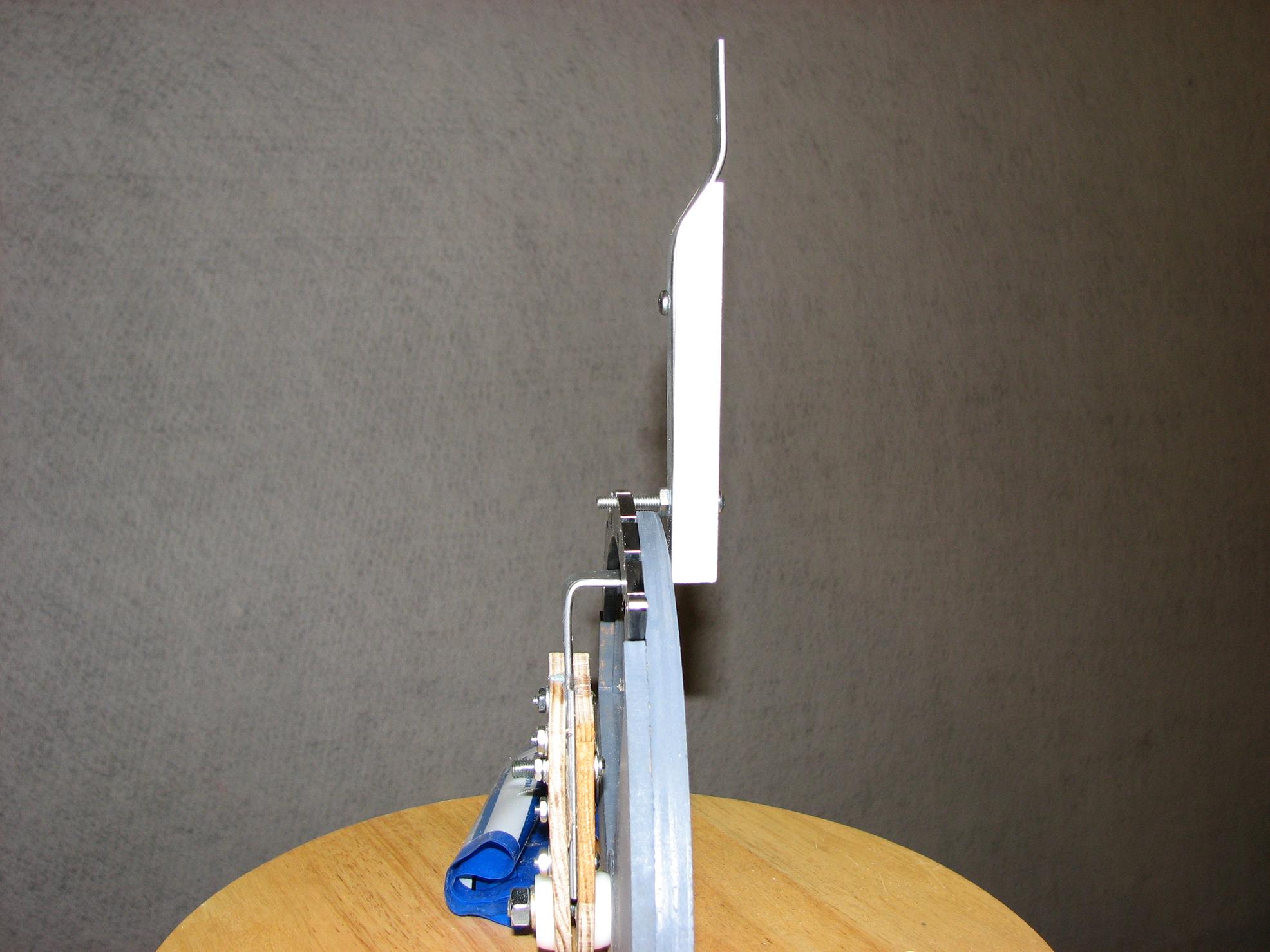

Here are some pics of my Flaps Lever. I had the detent plate made at a local fab shop. The handle was made by myself using aluminum u-channel and 1/8" steel. Turned out pretty good. Waiting on my handle from Simparts now. |
|
|
 |
|
|
 |
|
|
|
 |
|
|
|
See more pics on Page2 |
|
|
|
