Pulteq mb1 mic preamp

schematic JPG

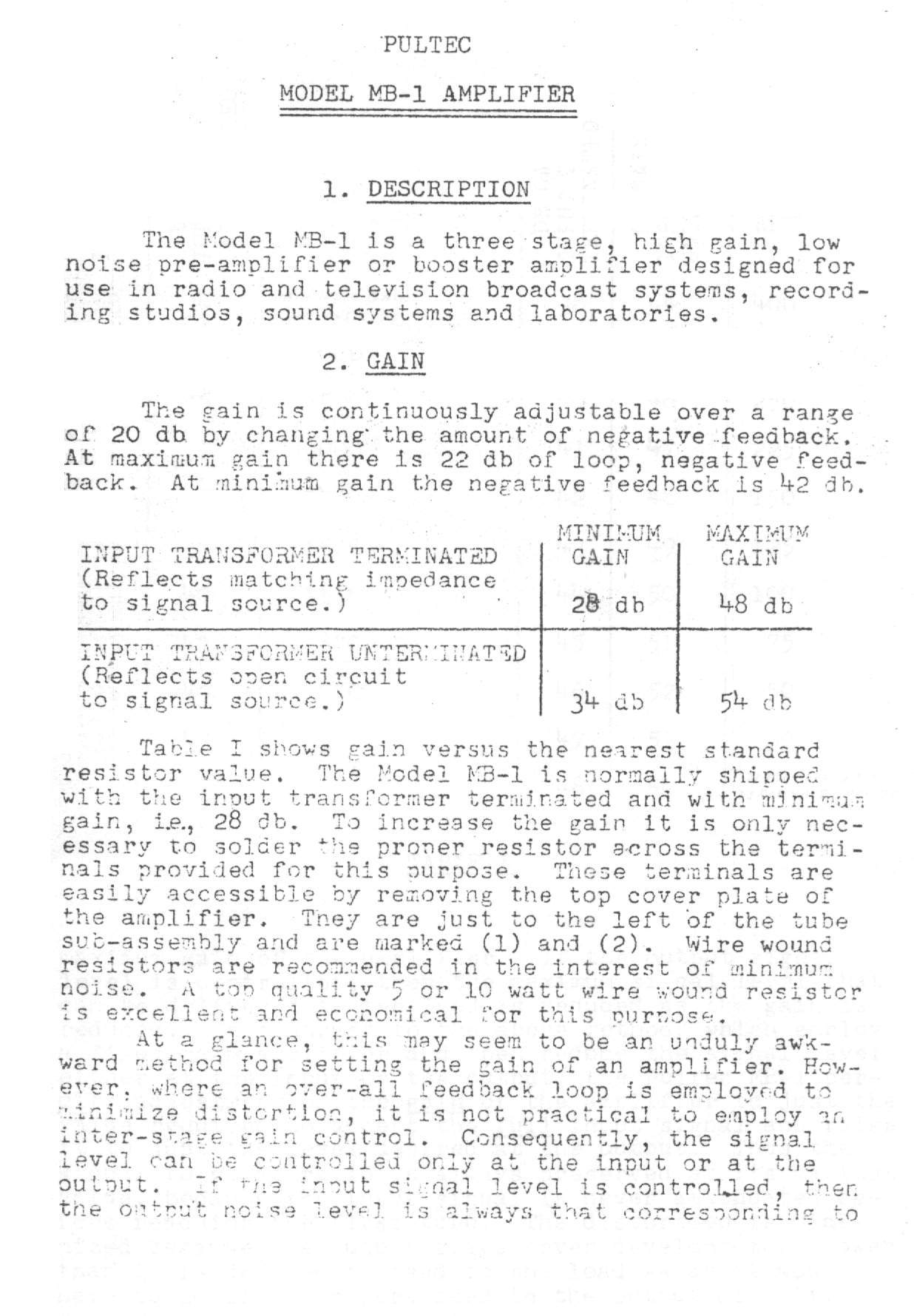

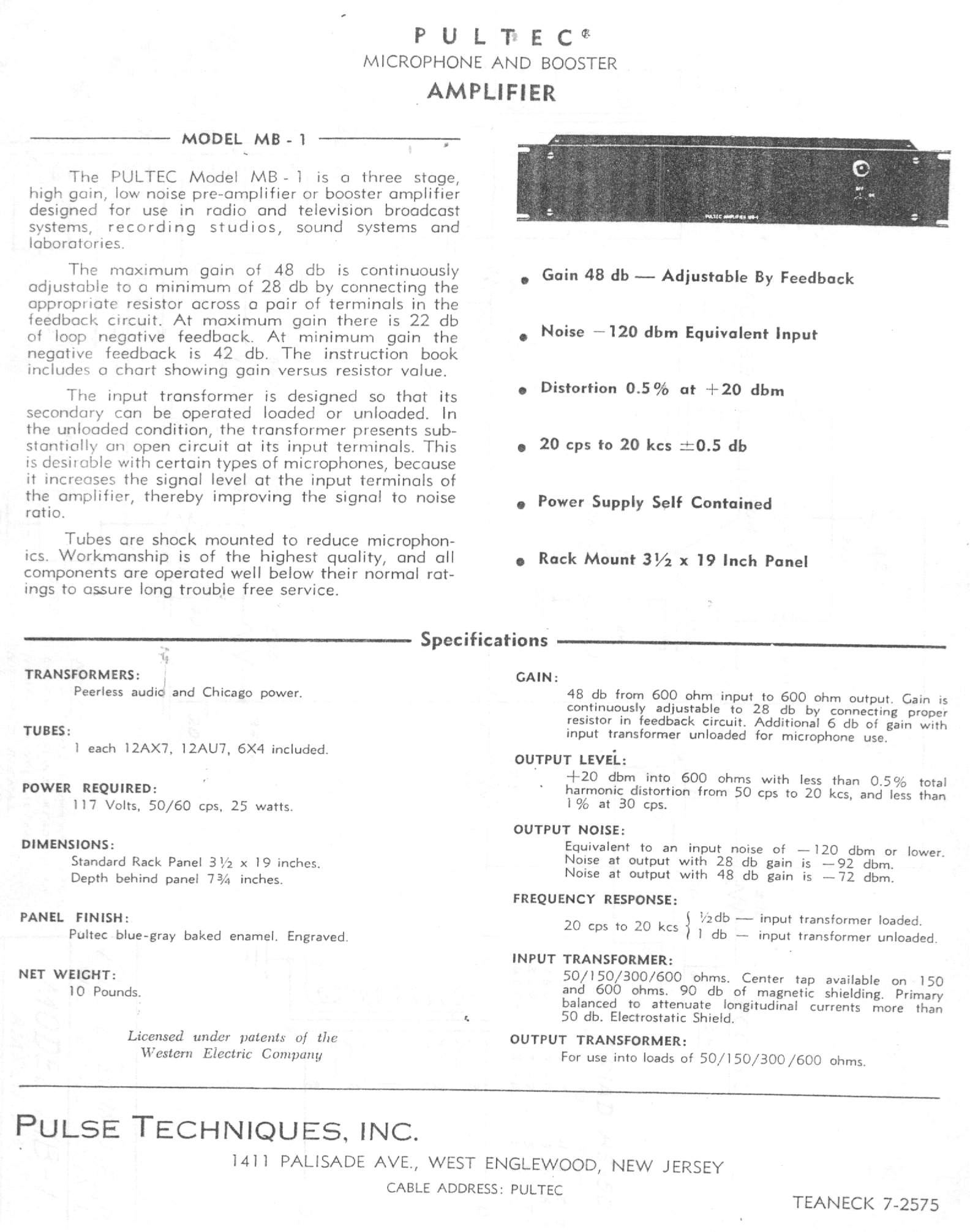

Manual Page 1 JPG

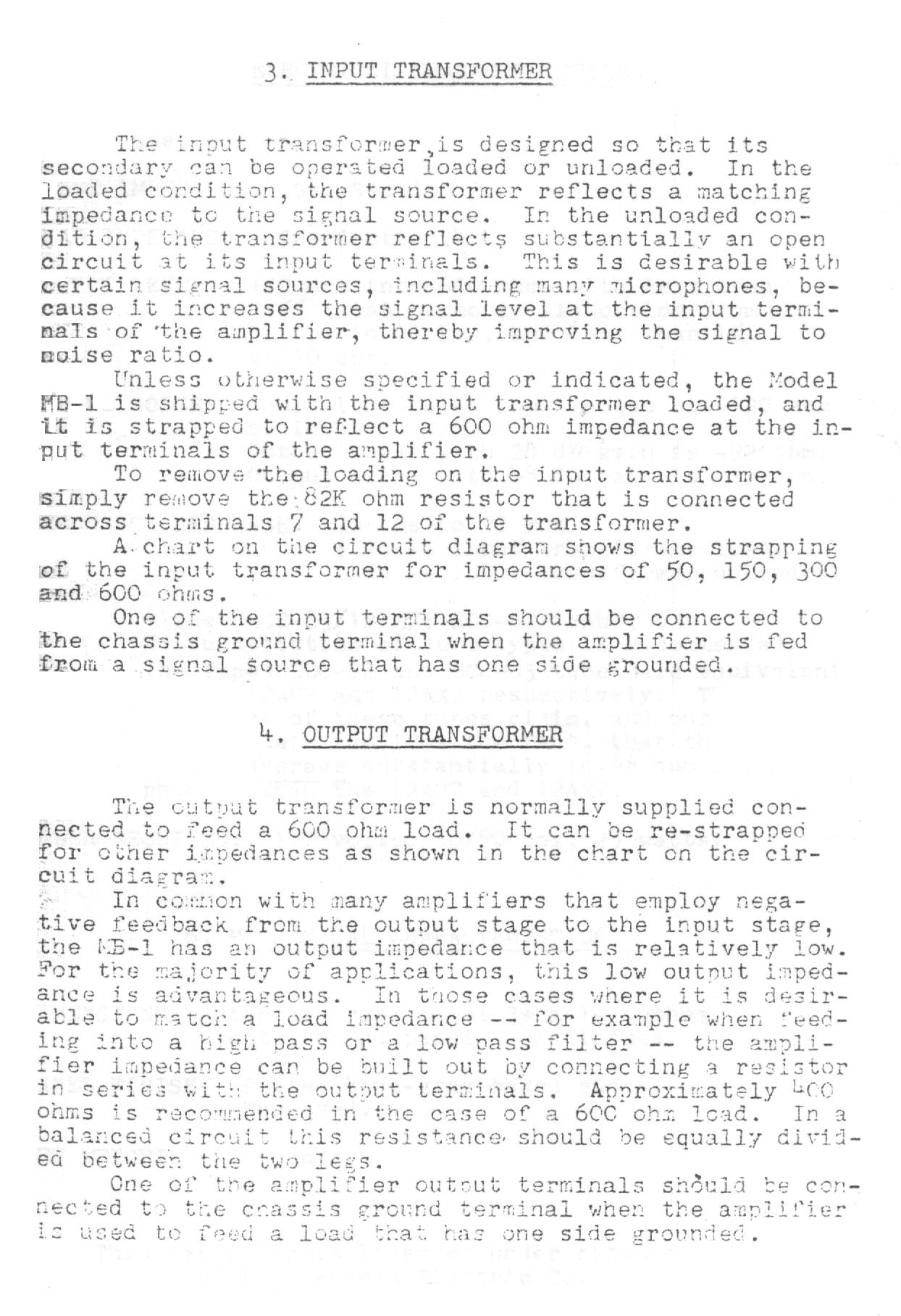

Manual Page 2 JPG

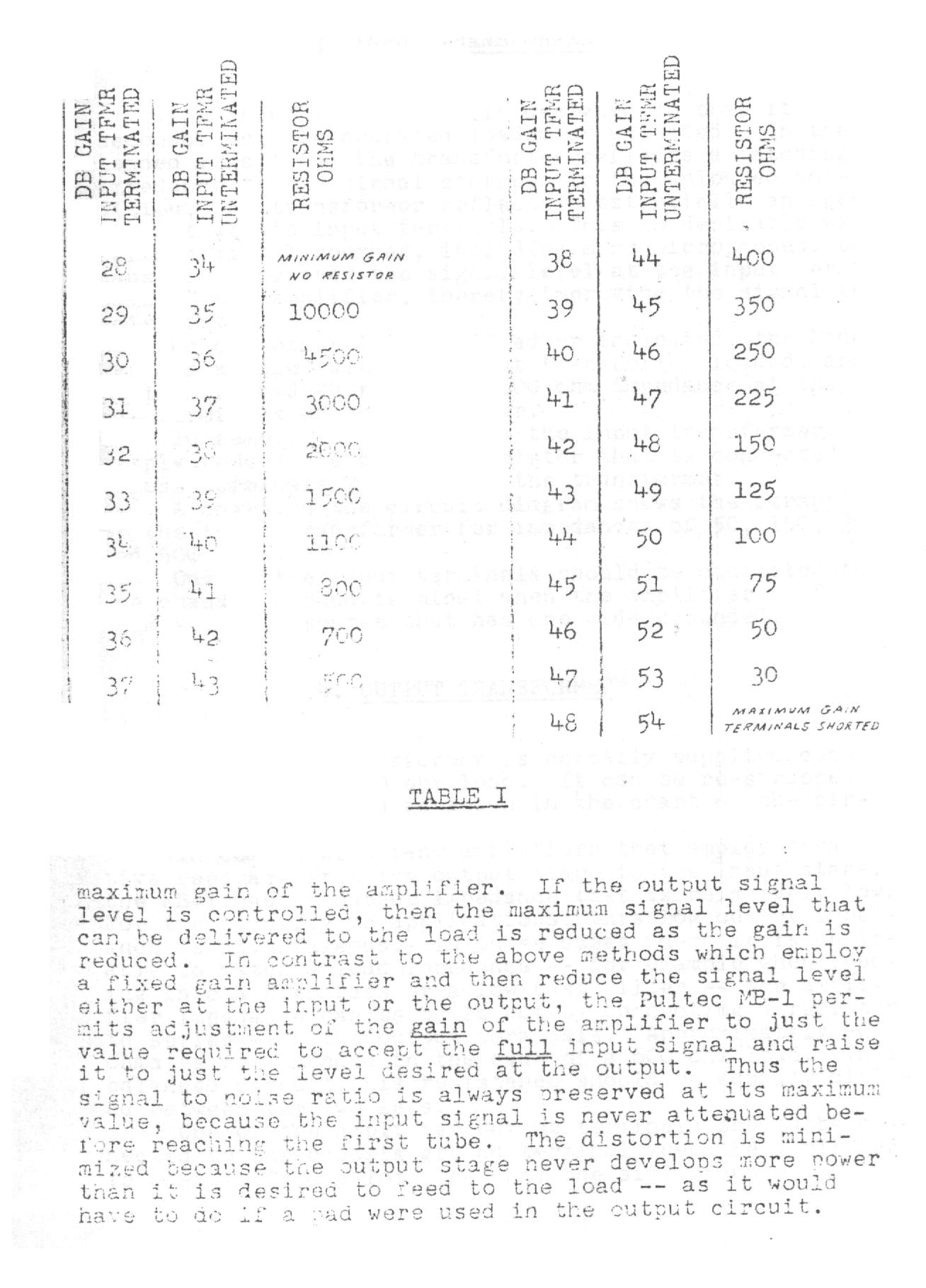

Manual Page 3 JPG
Manual Page 4 JPG

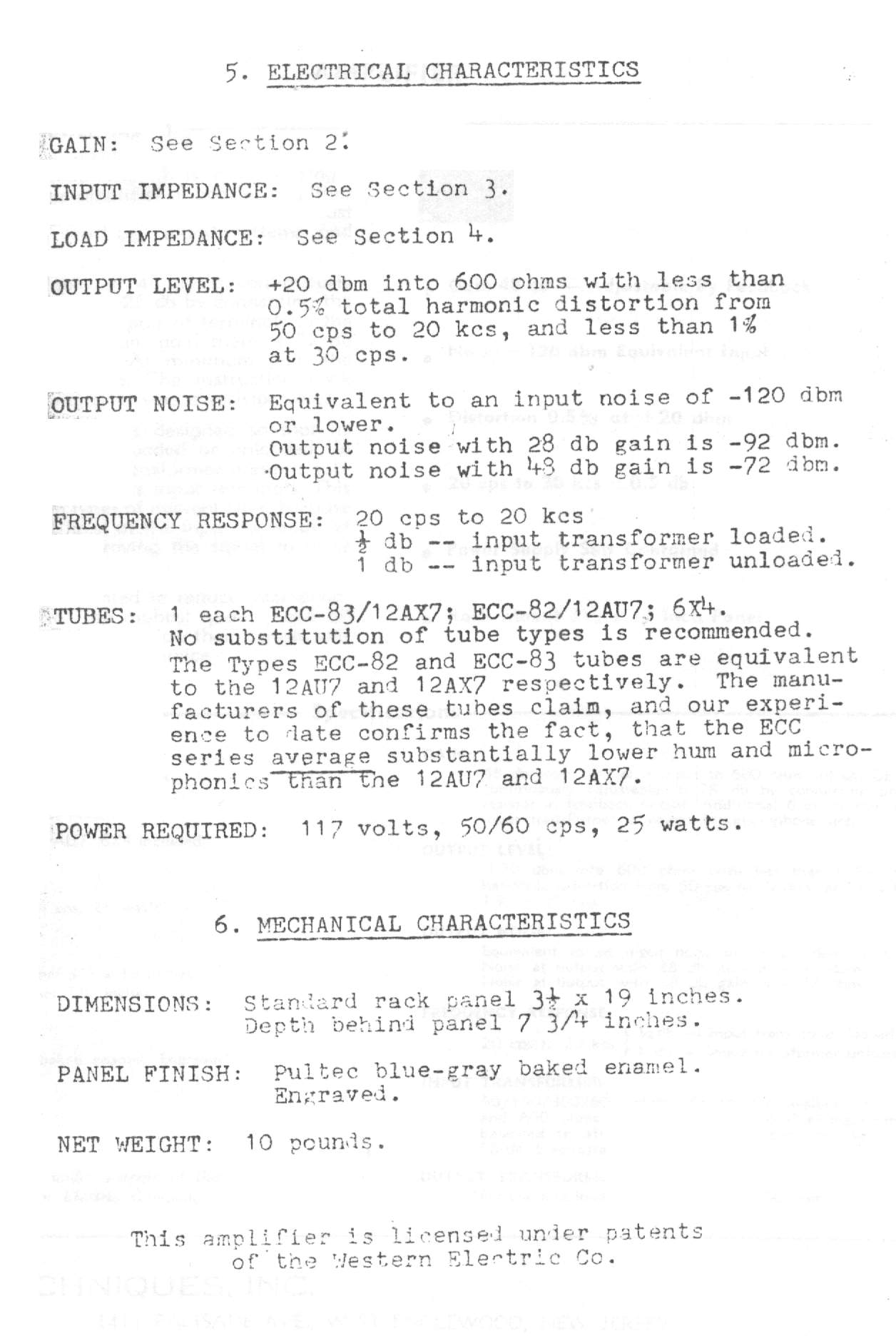

Manual Page 5 JPG
Caps and Resistors info

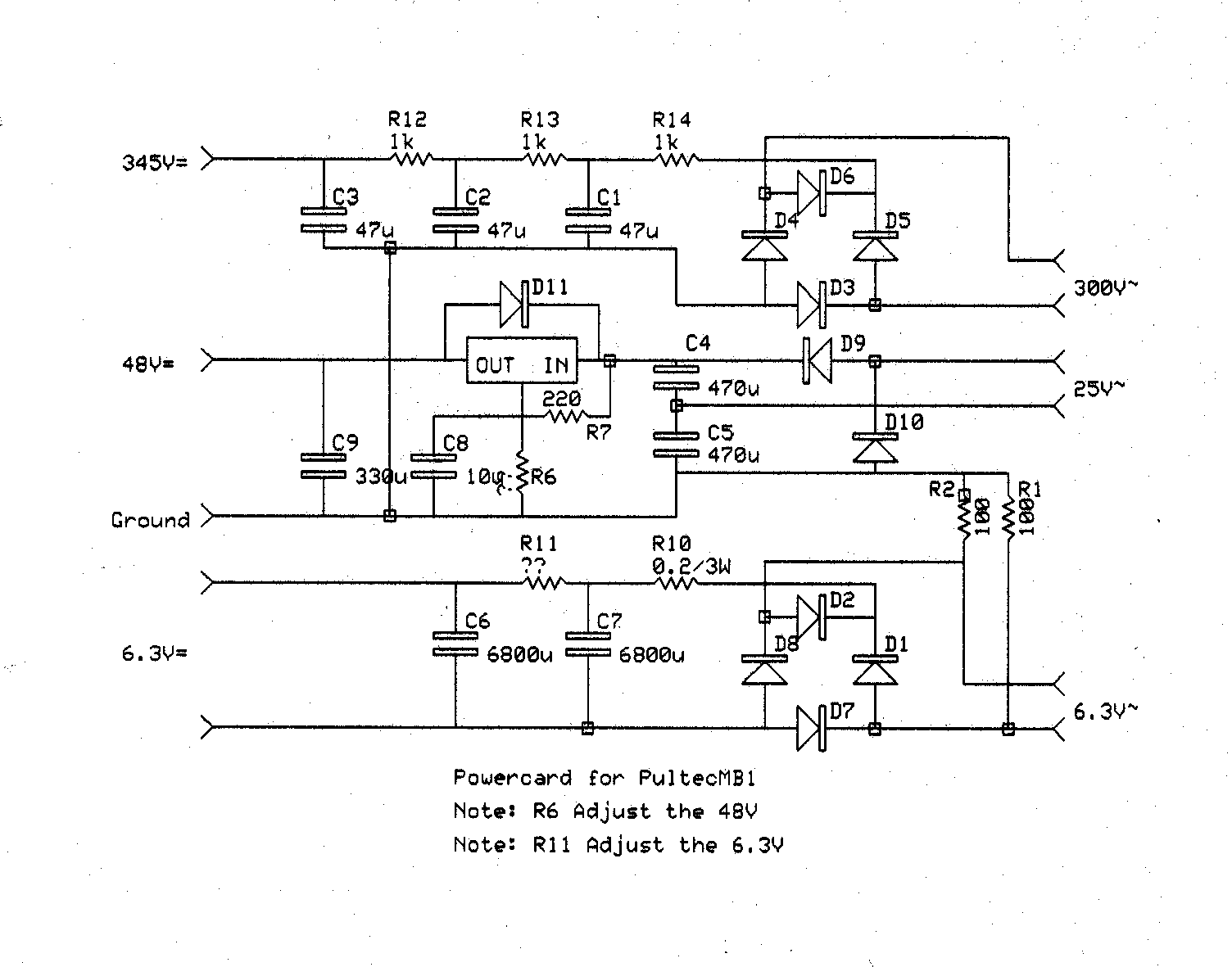

Alternate SolidState Power Schematic GIF

SolidState Power document DOC

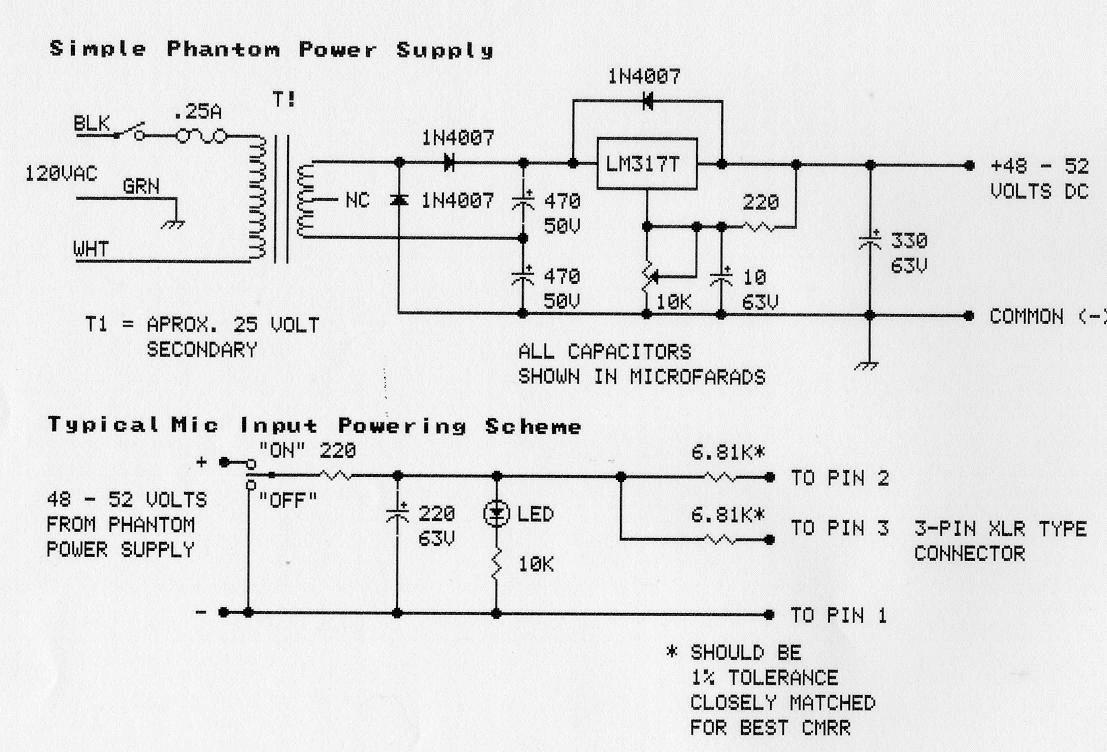

Phantom power schem JPG

This is a wonderful preamp! Any help or questions are welcome. Contact me at [email protected]
