THE HAL - CLOVER-2000 DSP4100 2K

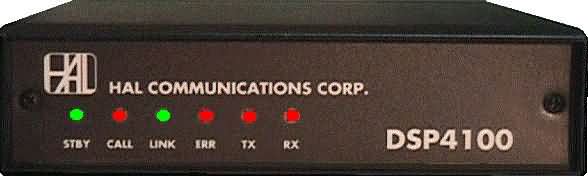

The DSP4100 2K is an HF data modem that provides CLOVER-2000, a 2000 bits/sec., voice bandwidth, adaptive
waveform specifically designed for HF radio data communications. CLOVER-2000 measures real-time HF signal
conditions and sets the most efficient modulation for these conditions. 8-bit data is sent without extra
manipulation or modification. ARQ mode is simultaneously bi-directional duplex and does not require an OVER
command. FSK waveforms CCIR 476/625 TOR, P-MODE, Baudot and ASCII are included. Housed in an RF tight
shielded enclosure, the DSP modem operates on 10 to 18 volts DC. Internal modem software can be uploaded
into the DSP 4100 2K into non volatile flash memory, greatly simplifying addition upgrades. The DSP4100 2K
is particulary well suited for use with lap-top terminals PC's in a portable and/or field enviroment. Many
third party software packages are available. | |
SPECIFICATIONS: |
DESCRIPTION: |
|
Format | 8-bit transparent |
Bandwidth | 2000 Hz (500-2500 @ -50 dB) |
ARQ Mode Modulation | BPSM, QPSM, 8PSM, 8P2A, 16P4A |
FEC Mode Modulation | 2DPSM, BPSM, QPSM, 8PSM, 8P2A, 16P4A |
Tones | 1500 Hz Center |
Symbol Rate | 62.5 per second |
Error Correcting Coding | Reed-Solomon code: 60, 75, or 90% Code Rate |
ARQ protocol | 2-level, multiblock auto adaptive modulation |
Adaptive Mode Control | Measure S/N & Phase on all data, set TX mode |
ARQ Thru-put | 28 to 250 bytes/sec. 224 to 2000 bits/sec. |
FEC Thru-put | 14 to 167 bytes/sec. 112 to 1336 bits/sec. |
|
FSK MODES: | |
|
FSK Tones | 500-3000 Hz, programmable |
TTY Codes | Baudot and ASCII |
TTY Rates | 45, 50, 57, 100, 110 Baud |
TOR Codes | CCIR-476 & CCIR-625 |
TOR Modes | ARQ, FEC, SEL-FEC |
TOR Rate | 100 Baud |
P-MODE Modes | Auto-ARQ & FEC |
P-MODE Rates | 100 to 200 Baud | |
HARDWARE: | DESCRIPTION: |
|
Cabinet | Extruded 5.7x9.6x1.7 inch |
DSP Processor | Motorola DSP56001 |
Control Processor | Motorola 68EC000 |
Analog I/O | TI TLC-320AC01 14-bit Codec |
Memory | Flash RAM loaded via serial I/O |
I/O Interface | Serial RS-232 9.6 kbps |
Power Input | 10 to 18 VDC, .25 A |
Indicators | STBY, Call, Link, Error, TX, RX |
Radio Performance | Tune in 10 Hz steps; +/-50 Hz stability |
Radio Connections | Rx Audio, TX Audio, PTT, FSK, SEL-CAL 2nd serial I/O |
Radio Connector | DE-9S | |
SOFTWARE: | DESCRIPTION: |
|
HAL Software | Included with DSP4100/2K |
Software Updates | DSP & 68000 code uploaded via serial I/O |
Option | DSP-4100 w. CLOVER-II 500Hz BW Mode |
Warranty | One year on parts and labor |
|
|
|
