1948 Harley Davidson Panhead Chopper I totally stripped the bike down to bare frame over a three week period in 2002. I then had the frame powder coated and the fender, oil bag and gas tank painted to match. Over the next six months I cleaned, repaired and polished each piece as I reassembled the bike. The bike got a new front tire and a new king/queen seat as a part of the rebuild. I also took the old SS Super B carb off (to much carb and no acelerator pump) and put on a much more reliable Bendix. The total cost of the rebuild including powder coat, paint, new parts and bolts ran approximately $2,500 and many, many beers.
The bike is an EL that has been stroked with and FL crank and rods and has an Andrews A grind cam, forking by Frank and a Primo Belt Drive. In addition the rear brake is juiced while the front remains mechanical. The stroker has a lot of get up and go, but as with most such setups, poops out around 60 mph. Besides, after 100 miles on this hardtail and you are ready for a rest and a cold one! |
|
|
|
 |
|
|
|
 |
|
|
|
|
|
Transmission and inner primary mounted. |
|
|

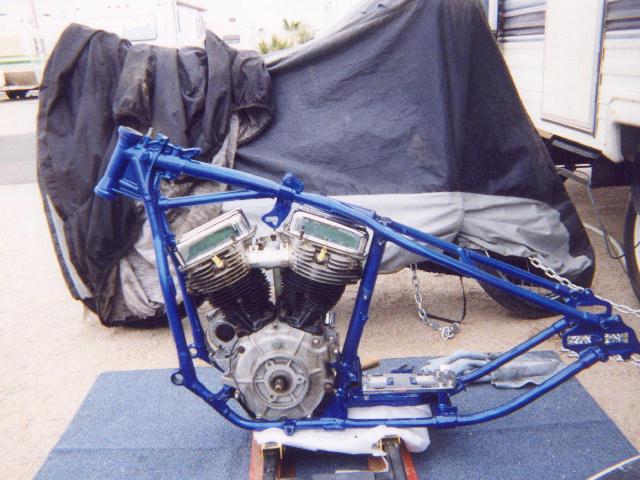

Powder coated frame with engine mounted. |
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

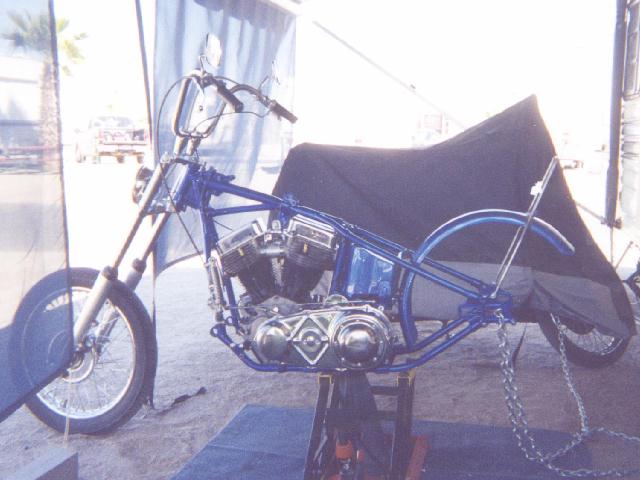

Oil tank and rear fender added |
|
|

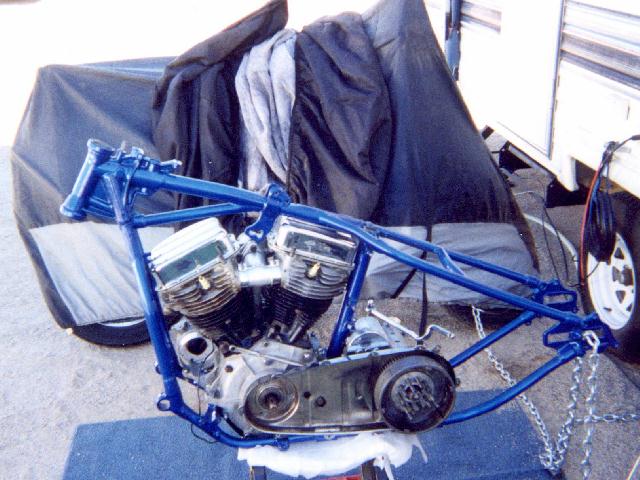

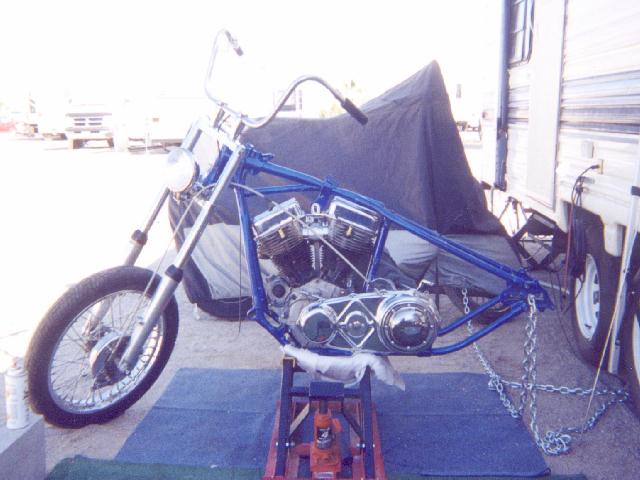

Engine, tranny and primary belt drive mounted and also front forks by Frank. |
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

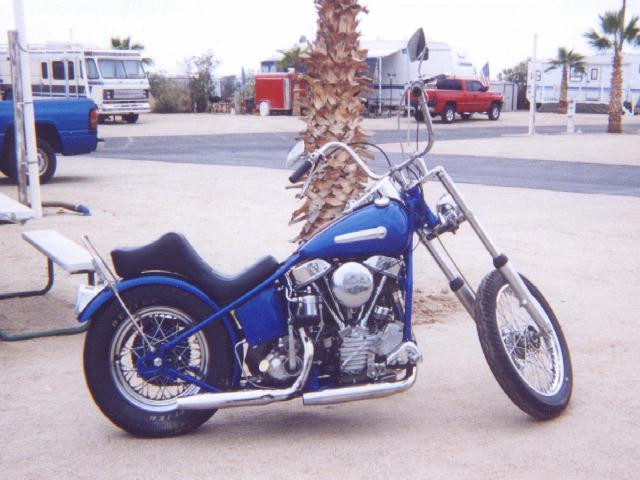

Finished bike, left side |
|
|
|

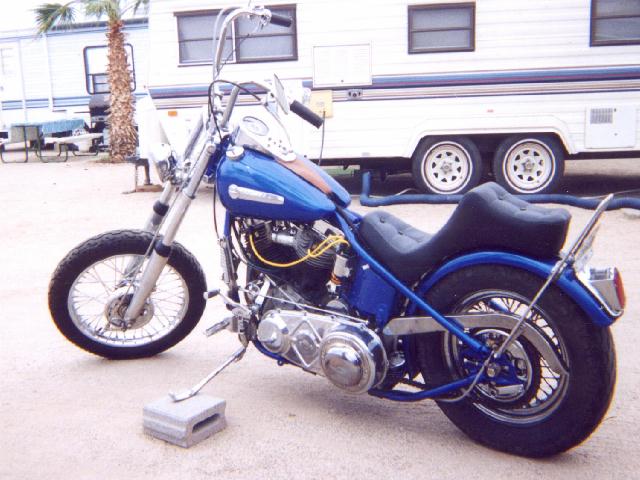

Finished bike, right side |
|
|
|
|
|
