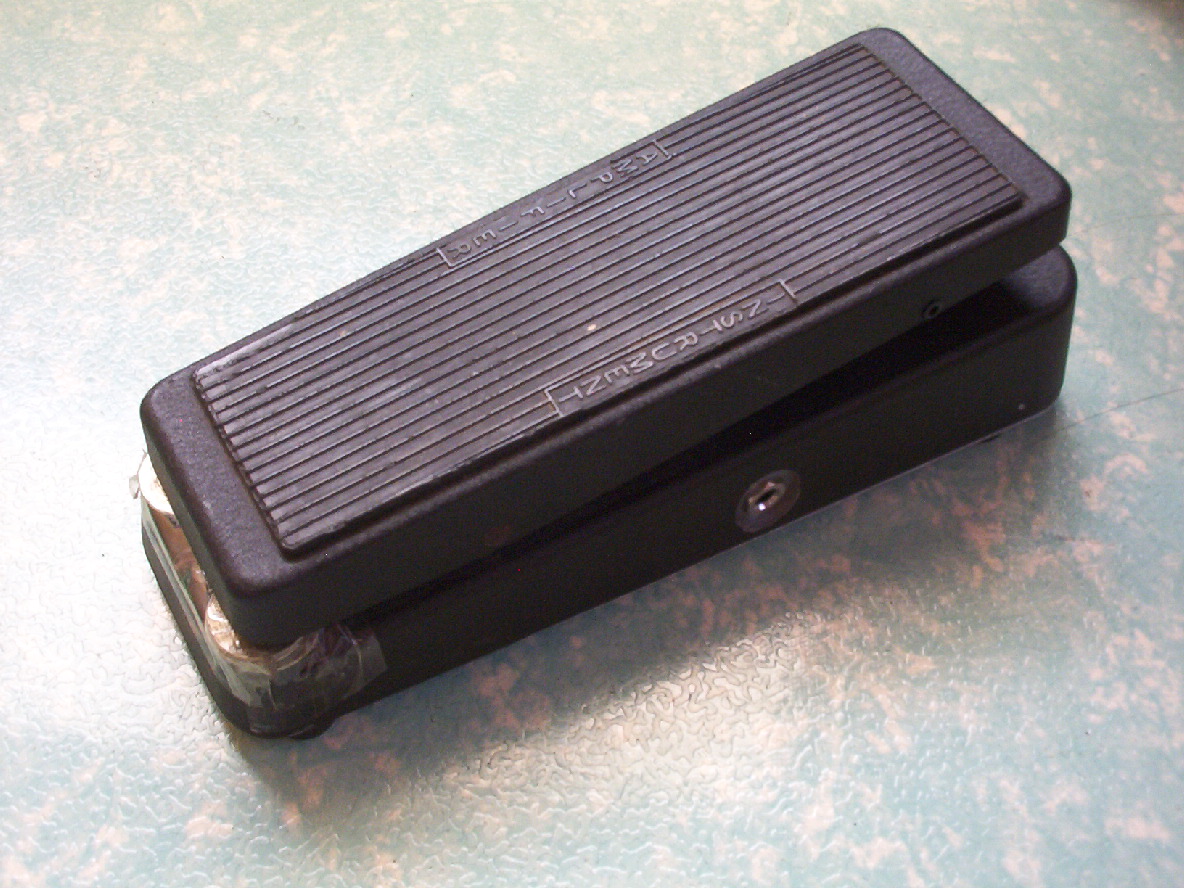

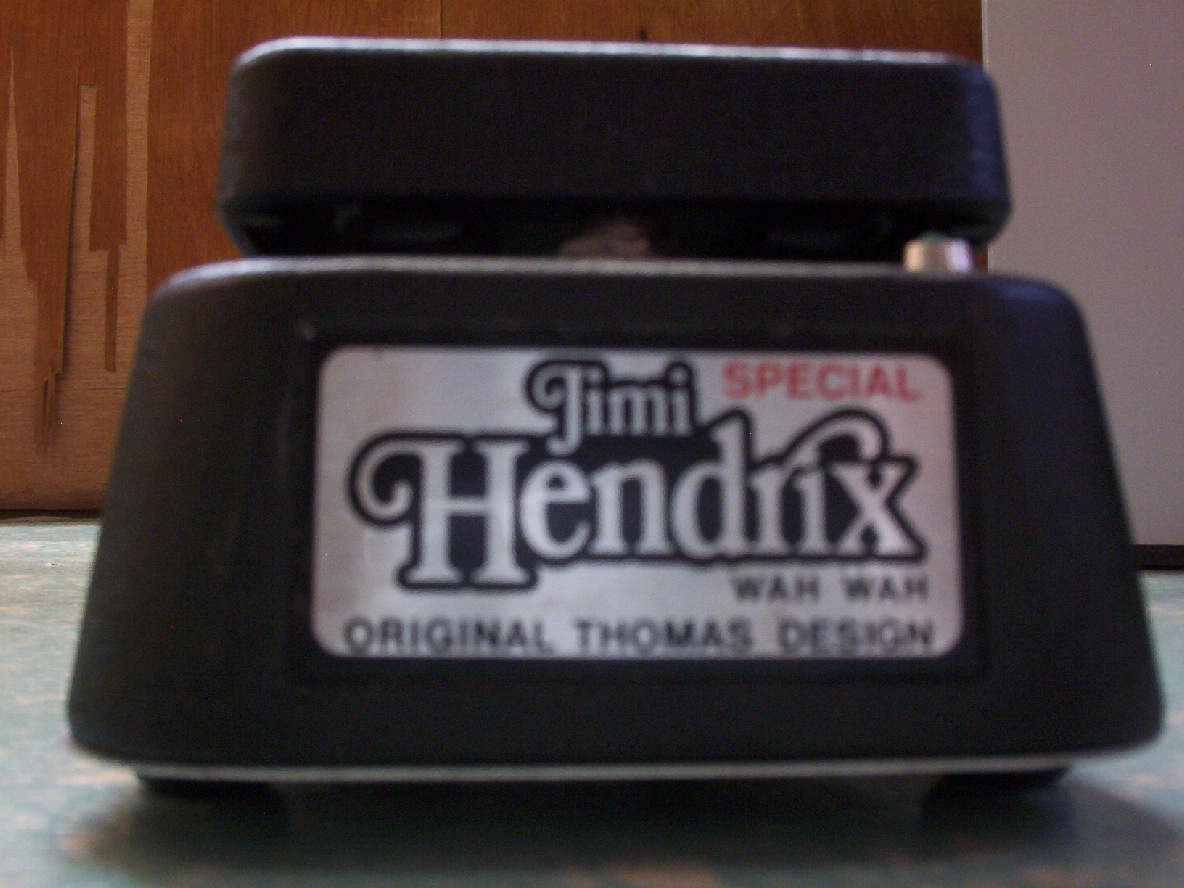

| Jim Dunlop Jimi Hendrix JH-1 special (deadlift) |
| Pedal Mod page 2 |
 |
 |
 |

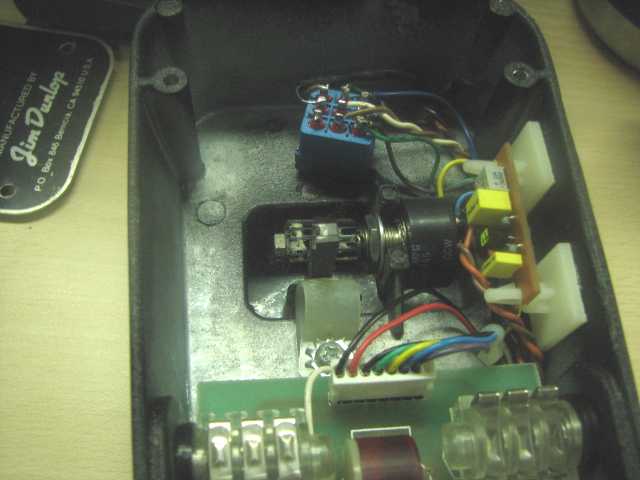

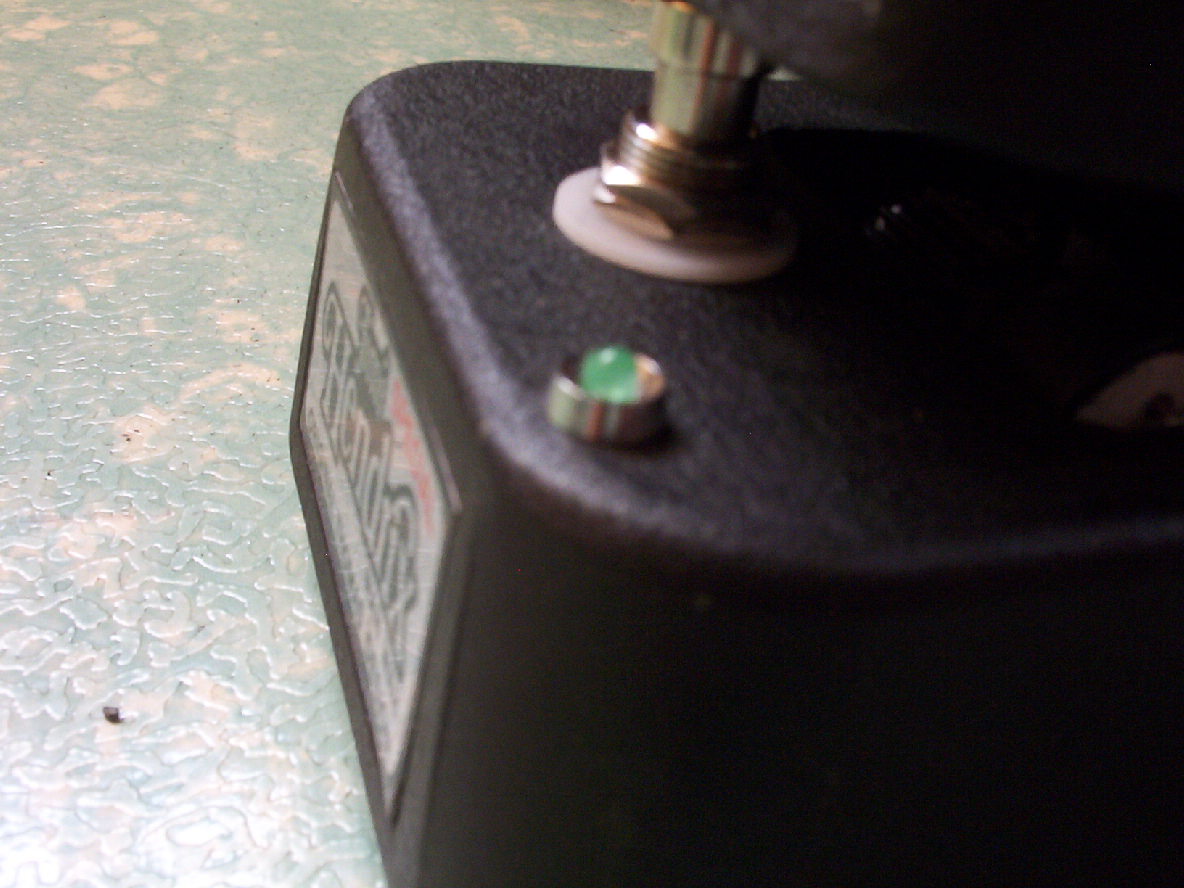

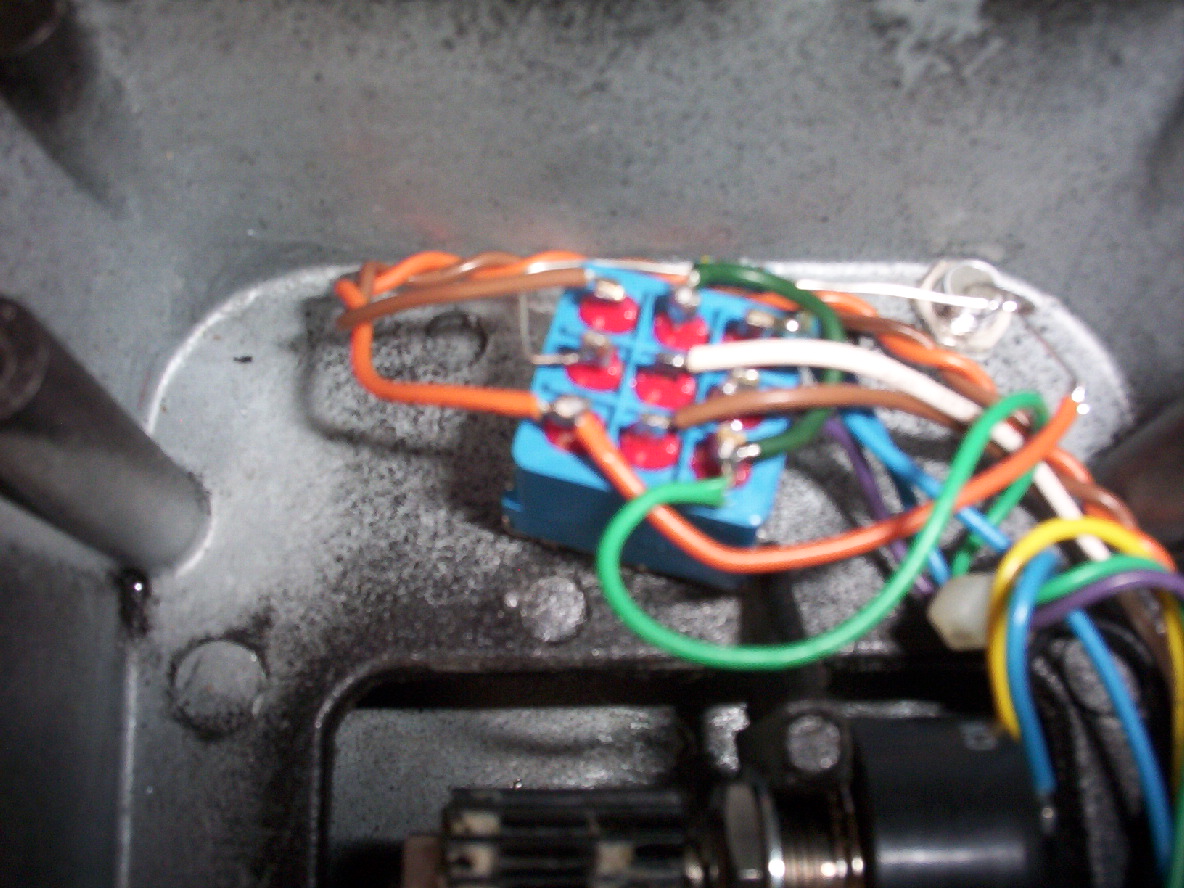

| Modification request to convert to true bypass with LED using 3PDT switch, changing of the stock inductor to RED FASEL and adding of output buffer circuit to prevent clipping went cascaded with other effects. |
 |
 |
 |
 |
 |

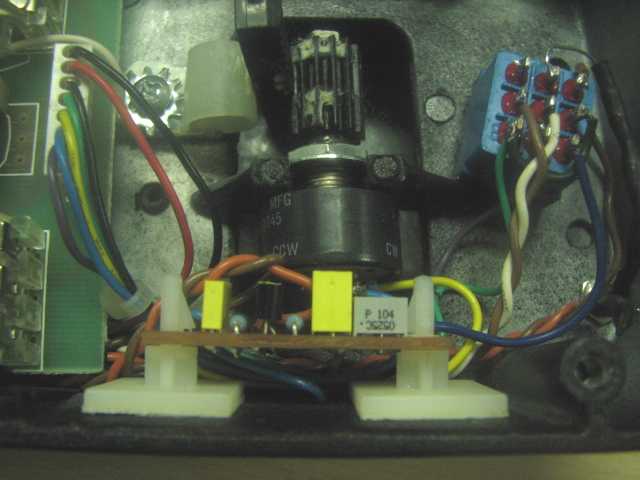

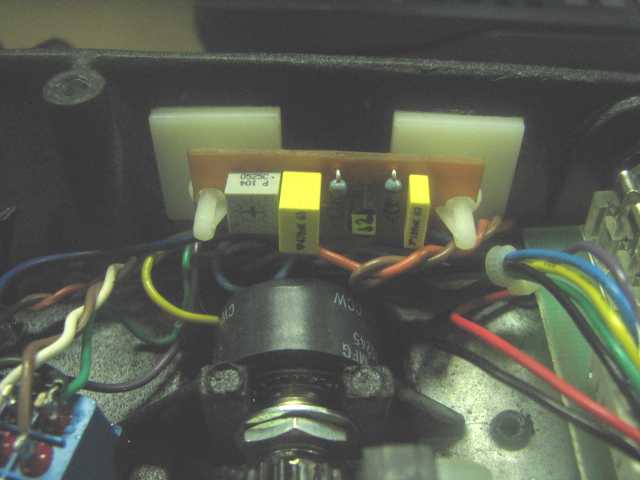

| The tricky part was the additional output buffer. I have experimented with two types of buffer circuit but decided with the jfet buffer (fuzzcentral.com) to go with this one. Iused a J201 for the jfet. |
