AMA-TIRI = storm beam, flashing in TUPY language (brazilian indian)
The AMA-TIRI
After the success of the CANARINHO, CURRIRA and the CURUMIM we decide to build a QRPp transmitter, now for 10m . This is the AMA-TIRI.
I love to surf in QRP homebrew Web sites, we found good ideas, like the
NewJerseyFireball a Tx for 10,20 and 40m using a 28,322 kHz clock TTL oscilattor can. In Japan we found the Otakuchi a can TTL oscilattor driving a Pixie, forming a 40m transceiver. Other ideas we found in QSL-NET, but in nowdays unfortunate, it is blockead to brasilian usersIn the last month we receive a catalogue from a electronic shop, wich had a 28322kHz can oscilattor (
datasheet) in the middle of 10m band, it cost me R$2,80 (US$1.00). I buy it !Then, in a saturday evening I build a oscilattor :
The schematic

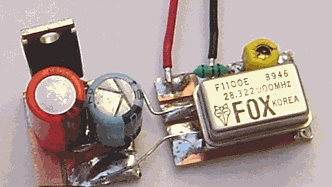

4 components - a flash to build and to operate
It is a basic oscilattor, eating 40mA at 5V, the output RF pass trought a band-pass-filter, in order to eliminate the odds harmonics in the square waves and all other harmonic frequency. We choose a XL/Xc near 180 Ohms and we adjust for maximum signal on a receiver.
When it was All Done , I call by phone, my friend PY2XT Celso, who lives in a city near my house, about 5 km (3 milles) straight but not visible, asking he for to listening my CW signals.... he do it, using a handy Sony scanner and also using a transceiver, I should listen too by phone feedback.... despite he dont have a 10m antenna.
We will have many things to do ... increase the power.... build a DSB/CW transceiver...
Still plugged ....
73
Miguel
O AMA-TIRÍ
"Raio, corisco em tupi-guarani"
Ama-tirí
Depois do sucesso do CANARINHO, do CURRUIRA e do CURUMIM resolvemos montar um novo tx agora para 10m . Assim chegamos ao AMATIRI.
Há muito tempo surfando pela WEB encontramos o
Fireball um TX para 10, 20 e 40m. Ainda encontramos o Otakuchi um transceptor tipo Pixie com oscilador a TTL. Outras montagens podem ser vistas no site QSL-NET, que infelizmente esta bloqueado para acessos brasileiros.Outro dia recebemos um catalogo de uma loja especializada que dispunha do oscilador clock TTL para 28322Khz (
datasheet) no meio da faixa de 10m, por R$2,80 (US$1,00). Compramos !Em uma tarde de sábado montamos um oscilador conforme esquema abaixo :
4 componentes - um raio na montagem e funcionamento
Trata-se do oscilador básico que consome 40mA em 5V, mais um filtro passa faixa com XL próximo de 180 Ohms , ajustamos para a máxima saída, monitorada em um receptor.
Telefonamos para o Celso, PY2XT , que mora em uma cidade vizinha a uns 5km em linha reta não visível, para que corujasse nosso sinal e ... ele estava recebendo num escanner Sony .... no transceptor recebia muito bem o CW, que eu conseguia ouvir graças ao retorno do telefone, mas ele não dispunha de uma antena para 10m.
Vamos continuar os testes, aumentar a potência e fazer um transceptor DSB /CW ....
Continue plugado ....
73 a todos
Miguel
