QUIZ - Engineering Graphics
1. Which is this projection method?
a. First Angle b. Second Angle c. Third Angle d. Fourth Angle
2. What is name of the view marked "XXX"?
a. Left side view b. Bottom side view c. Right side view d. Rear side view
3. What is name of this line?
a. Boundary line b. Short break line c. Hidden line d. Long break line
4. A line is inclined to both the reference planes. Its Apparent Length will be ........
a. Less than the True Length b. Equal to the True Length c. Greater than the True Length d. Can't say
5. A line is inclined to both the reference planes. Its Apparent Inclination will be ........
a. Less than the True Inclination b. Equal to the True Inclination c. Greater than the True Inclination d. Can't say
6. Front view of a plane lamina is parallelogram. Its true shape may be (multiple correct answers) ...
a. Square b. Rectangle c. Rhombus d. Parallelogram e. Kite f. Trapezium g. Triangle h. Pentagon
7. In the final Front View of the tetrahedron's projections show below
a. line a'b' and line c'd' both should be continuous
b. line a'b' and line c'd' both should be dashed
c. line a'b' should be continuous and line c'd' should be dashed
d. line a'b' should be dashed and line c'd' should be continuous
8. In the projections of the hemisphere as shown, the curve marked by an arrow will be
a. Elliptical b. Parabolic c. Circular d. Hyperbolic
9. An AIP passes through a cube as shown. The true shape of the section will be
a. Square b. Rectangle c. Pentagon d. Hexagon

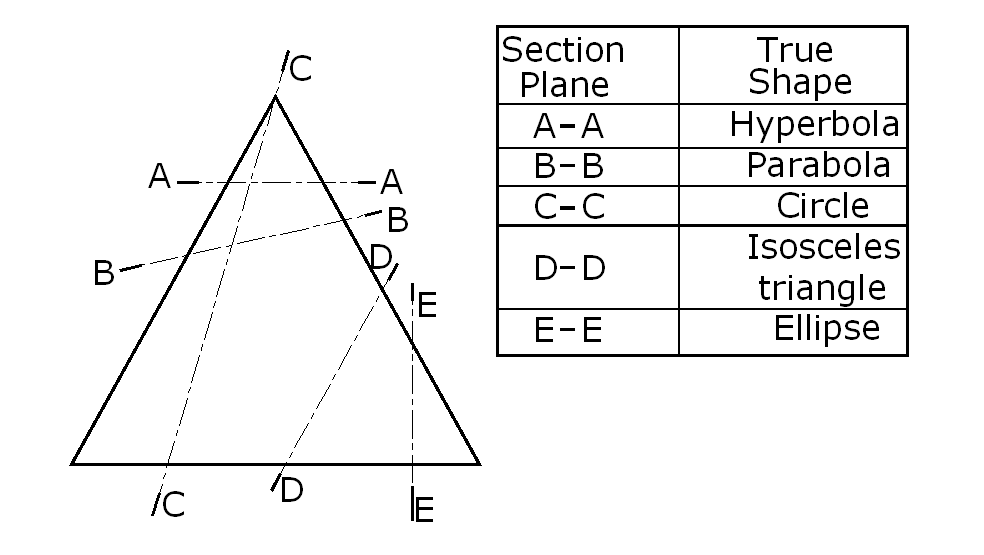

10. Match pairs for the true shape of the sections and the section planes (Refer the given figure)
