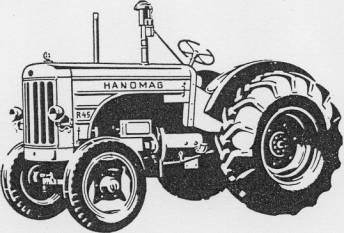

HANOMAG R45
MAX HP AT BELT: 42.7 (4,128 fpm) at 1,200 engine rpm.
MAX HP AT DRAWBAR: 43.5 at 1,209 engine rpm.
MAX CRANKSHAFT TORQUE: 210 lb/ft at 920 engine rpm.
MAX DRAWBAR PULL: 7,186 lb at 1.9 mph, on 1,275 x 28 tyres.
ENGINE: 4-stroke diesel, Cylinders = 4, Bore = 4.335 in. Stroke = 5.910 in. Displacement
= 348 cu. in. Compression ratio = 18:1, Rated speed = 1,200 rpm.
TRANSMISSION: Type = Gear.
STANDARD SPEEDS: Forward = 2.1, 3.2, 4.2, 6.4, 11 mph, Reverse = 1.74 mph, on 14 x
28 rear tires.
STANDARD TIRES: Front = 7.50 x 20, Rear =14 x 28.
TURNING RADIUS: 14-1/2 ft; Ground clearance = 13-3/4 in.
OVERALL DIMENSIONS: Length = 1391 in. Width = 75 in. Height (to top of radiator)
= 69 in. Tread, Front = 54-5/16 in. Rear = 54-5/16 in.
WEIGHT: 7,100 lb.
BELT PULLEY: Diameter = 16-1/2 in. Width = 6-5/8 in. Speeds = 950 rpm.
PTO: Spline shaft diameter = 1-3/8 in. Height above ground, Standard tires = 33-1/2
in. End
of shaft = 3 in. Ahead of drawbar pin, Shaft 2 in. Left of centre, Rotation, Clockwise,
Viewed from rear.
IMPLEMENT ATTACHMENT: Drawbar.
ADDITIONAL EQUIPMENT AVAILABLE: 3-point linkage.
