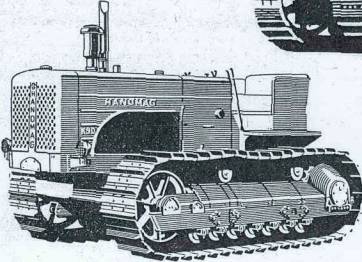

HANOMAG K90
HORSEPOWER: Max. belt = 93.5, max drawbar = 76.4.
MAX DRAWBAR PULL: 18,550lb at 1.44mph.
ENGINE: Type = vertical in-line, 4-stroke diesel, overhead valves, 6 cylinder;
Bore = 4.500in, Stroke = 5.906in. compression ratio = 17:I, rated speed = 1,300
rpm.
STANDARD SPEEDS: Forward = 1.49, 2.26, 2.82, 3.90, 5.96 mph, Reverse 2.12, 3.16,
3.91, 5.52 mph.
GROUND CLEARANCE: 13 in.
OVERALL DIMENSIONS: Height = 104-5/16in., width 86-5/8in., length 160-1/4in.
WEIGHT: 19,988Ib with operator.
PTO: 1/5/8in. spline shaft, 1,250 rpm. Height above ground level = 35-7/16 in.
Shaft 1-9/16 in. right of centre.
ELECTRICAL SYSTEM: 12 volts.
TRACKS: Tread (centre to centre) = 65in., width = 18-1/8 or 22in., length on
ground = 95-1/2in.
|
