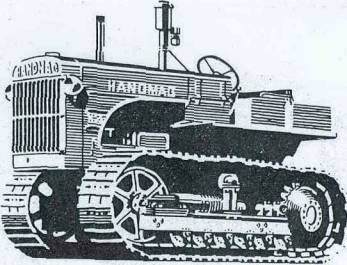

HANOMAG K55E
HORSEPOWER: Max belt = 53.1, Max drawbar = 45.7
MAX. DRAWBAR PULL: 9,000lb at 1.7mph.
ENGINE: Type = vertical in-line, 4-stroke diesel, overhead
valves, 4-cylinder, Bore = 4.330in., Stroke = 5.900in.,
rated speed = 1,300 rpm.
STANDARD SPEEDS: Forward = 1.7, 2.5, 3.75 mph, Reverse = 2.19 mph.
TURNING RADIUS: 25 ft.
OVERALL DIMENSIONS: Height (to top of radiator) = 104-5/16in., width = 86-5/8in,
length = 160-1/4in.
WEIGHT: 19,988lb.
BELT PULLEY: Diameter = 19-3/4in., width = 7-1/2in.; speeds 575 rpm.
PTO: 1-5/8in. spline shaft, 534rpm, End of Shaft 15in. ahead of drawbar pin,
Shaft 3-1/2in. right of centre. Direction of rotation = clockwise, viewed from
rear.
ELECTRICAL SYSTEM: 24 Volts.
TRACKS: Tread (centre to centre) = 50 in., length on
ground = 73 in.
