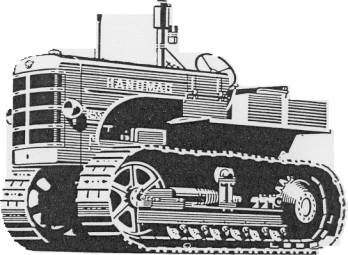

HANOMAG K55
MAX HP AT BELT: 52.1 at 1,303 engine rpm.
MAX HP AT DRAWBAR: 45.7 at 1,258 engine rpm.
MAX DRAWBAR PULL: 10,687 lb at 1.49 mph.
ENGINE: 4-stroke diesel, Cylinders = 4, Bore-4.331 in. Stroke = 5.906 in.
Displacement = 348 cu. in. Compression ratio = 18:1, Rated speed = 1,300 rpm.
TRANSMISSION: Type = Gear.
STANDARD SPEEDS: Forward =1.68, 2.48, 3.73 mph, Reverse = 2.17 mph.
STANDARD TRACKS: Tread (centre to centre) = 46-1/2 in. Width = 18-1/8 or 22 in.
Length on ground = 95 in.
TURNING RADIUS: 12-1/2 ft, Ground clearance = 13 in.
OVERALL DIMENSIONS: Length = 123-5/8 in. Width = 76 in. Height (to top of
radiator) = 72-1/2 in.
WEIGHT: 9,950 lb.
BELT PULLEY: Diameter =19-3/4 in. Width = 76 in. Speeds = 575 rpm.
PTO: Spline shaft diameter = 1-5/8 in. Height above ground, Standard tracks =
35-1/2 in. End of shaft 15 in. Ahead of drawbar pin, Shaft 3-1/2 in. Right of
centre, Rotation = Clockwise, Viewed from rear.
