These are the pics of my current progress, and keep in mind that this is just the beginning, and with any corporate sponsorship, things could be looking real good real soon! |
|
|
|
 |
|
|

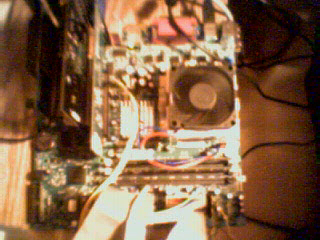

Well, here she is, the motherboard, this is just a basic starter IBM motherboard. with a P4 processor and alas just 256 megs of SD -RAM , its got a sound blaster live sound card, nVidia GeForce 2 at 32 megs, and a whole wack of other junk. |
|
|
|
|
|
|
 |
|
|
|

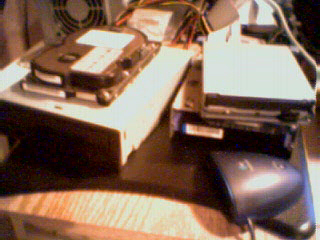

These are the components to my machine, it came standard with a 20 gig hard drive (Maxtor) and a spare 8 gig hard drive that we had kickin around, a 48times cd-rom drive floppy drive (by sony) and the blue reciever u see is my wireless optical mouse (logitech) |
|
|
|
|
|
 |
|
|

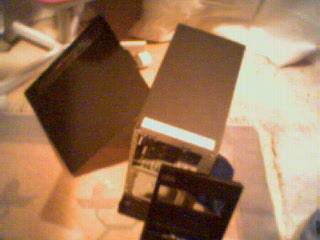

This is my computers exoskeleton, the 2 panels off the tower are just the front cover, and the removable side cover. Pretty ugly actually when it's all together. So in hindsight, this may have been the reason that prmpted me to do a case mod |
|
|
|
|
|
|
 |
|
|
|

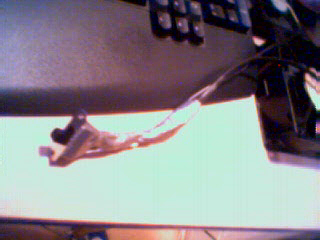

This was my 1st attempt at electrical rewiring on my computer, faily grotesque, but it's a start and only proves that I posess some electrical ability. But dont worry, this is NOT the finished product for this component, thank god , for if it was , i may as well give up now! |
|
|
|
|
|
 |
|
|

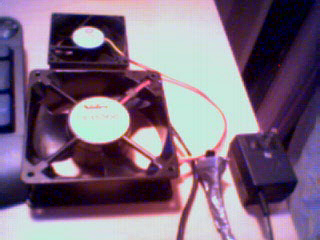

We are planning to overlclock my CPU in the near future, and we all know that with overclocking comes extensive heat, so as such, i have stolen 2 huge assed fans (the small fan is your standard cooling fan) my larger fans stand 11 1/2 cm tall (thats 4 1/2 inches0 and there an inch and a half thick, steel construction and plastic rotor ( for anything else would be uncivilzed!) |
|
|
|
|
|
|
 |
|
|
|

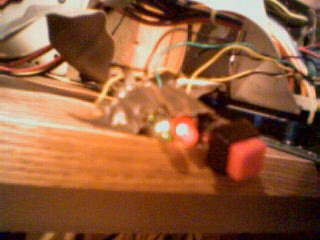

This is the switch I had to construct wich controls a 9 volt (output) power pack , this fan (even though says 12 volt output max capacity) can run off of a 18 volt power Pack, trust me, this thing when running off 18 volts, is capable of breaking each and every one of your fingers! Dont belive me?. come over test! |
|
|
|
|
|
 |
|
|

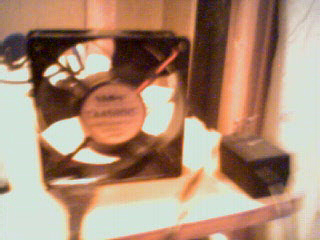

Standing tall. heres a standing pic of one of the 2 fans that will be cooling my computers CPU. |
|
|
|
|
|
