| FT-50R. First Dual
Band Handheld Radio to Achieve Prestigious MIL-STD 810 Rating. |
 |
| Use Dual Watch to select
any frequency combination and the FT-50R automatically switches channels
for instant operation. Plus, the built-in Digital battery Voltage feature
can be used to monitor current operating battery voltage. |
|
| The FT-50R is manufactured
to rigid commercial grade standards, and is the only amateur dual band
HT to achieve a MIL-STD 810 rating. Plus the FT-50R is the first dual band
HT to include Digital Coded Squelch (DCS), super loud audio, and the "widest"band
receive allowable. In fact, the FT-50R is the smallest 5-Watt dual band
with wide band receive. The FT-50R is rugged, reasonably priced, simple
to operate, and has all the features you want |
| FT-50R
Super Wide Band Receive |
| Receiver coverage
includes 76-200 MHz (VHF), 300-540 MHz (UHF) and 590-999 MHz*. This HT
includes 3 user-selectable filters: AM aircraft receive, FM narrow and
FM wide. |
 |
| Military-Standard
810 Rating |
| The FT 50/10/40R HTs
have all achieved a MIL-STD 810 Rating. Built to rigid commercial-grade
radio standards, these handhelds are designed to withstand the rigors of
shock, vibration, and the corrosive action of dust and moisture. Water
resistant construction utilising weather-proof gaskets, seal major
internal components. Each is encased in high-impact, polycarbonate material
for the greatest measure of endurance. |
| Digital
Code Squelch |
| The Digital Code Squelch
system (DCS) included on the FT-50/IO/40R is similar to CTCSS tone squelch
as it uses sub-audible tones to silently monitor busy channels. Both Ringer
and Tone Scanning functions are available with DCS. DCS permits semi-private
operation between two stations on the same frequency. |
| Memory
Channels |
| The FT-50R has 112 memory
channels including two Home Memory channels. FT-10/40R handhelds are available
with either 99 or 30 memory channels depending on optional keypad model
installed. |
| 12V
DC Direct Input |
| Extend operation to 5
full Watts of output power with a 12V DC car adapter (E-DC-5B) while in
mobile use. |
| High
Speed Scanning |
| Scanning functions of
the FT-50/10/40R HTs permit multiple settings in VFO and memory modes.
Control Scan from the keypad, on the Top Notch knob on the top of the radio. |
| Alphanumeric
Display |
| Up to 48 characters are
available for use in naming or identifying channels. Use 4 character numbers
or letters, or a combination, to distinguish each name or frequency identification.
View them all in the large Omni-Glow display. |
 |
| CTCSS
Encode (Decode w/FTT-12) |
| CTCSS accesses repeaters
and stations which require continuous sub-audible tones. CTCSS decode
alone, silently monitors busy channels, enables the Ringer function. and
scans CTCSS tones. |
| Auto
Range Transpond System (ARTS) |
| The
Auto Range Transpond System uses DCS to allow two radios to automatically
track one another every 25 seconds. The ARTS feature can be used with other
Yaesu ARTS m/DCS-equipped transceivers. Audible tones, and display characters
signal when in simplex range. |
 |
|
| Direct
FM |
| Direct
FM improves voice quality, packet performance, and permits DCS operation. |
| High
Audio Output |
| New
technology and high efficiency speaker design produce super audio output. |
| Dual
Watch |
| Dual
Watch enables you to check sub-band activity while receiving on another
frequency. When a signal is detected, operation automatically shifts to
the sub-band frequency. |
| Optional
Digital Voice Recording System (DVRS) |
| Digital Voice Recording
System (DVRS) uses the microphone to record and store messages for playback
manually or over the air, and record received signals either manually or
automatically. |
| Battery
Savers |
| Automatic PowerOff
Helps conserve battery power. Choose from 5 user selectable levels at I/Z
1, 3. 5 or 8 hours of key activity Plus, manual shut off.
Receive Battery Saver
Places the receiver to "sleep" during quiet operation. User-selectable
time/ratio increments are available.
Selectable Power Output
Four levels of power output: Low h Low 2, Low 3. and High extend battery
life. Choose the lowest level power output whenever possible.
Transmit Battery Saver
Monitors signal strength of last received signal. then selects one of four
TX output power levels to conserve battery life.
Time Out Timer This user selectable
feature of the FT-50R ends transmission at pre set times in 1, 2.5. 5 or
10 minute intervals. For the FT-10/40R,TOT is 2.5 minutes. Plus, manual
shut off. |

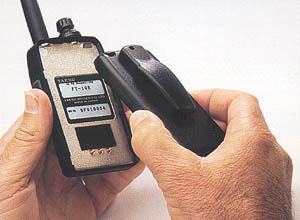

| Rear
Mount Battery |
| Unique clam shell case
design permits rear-mount battery. Both 2.5(UHF2.0W) and 5Watt batteries
have same configuration, ensuring compact radio length in both Versions. |
 |
| PTT
Thumb Switch |
| Designed to eliminate
hand fatigue during long key downs, the up/down thumb switch is placed
on the top corner, precisely conforming to a natural hand grip. Another
example of Yaesu user-designed, operating-efficiency engineering. |
| Optional
ADMS-1C Windows PC Programmable Software |
| Quickly program features,
create memory files for different cities, including frequencies, alpha
names and CTCSS/DCS tones. Use for cloning programming to other compatible
Yaesu radios. |
|
|
SPECIFICATIONS
|
| Model |
FT-50R |
FT-10R |
FT-40R |
| General |
|
|
|
| Frequency Range: |
RX:
76-200 MHz
300-540 MHz
590-999 MHz*
TX: 144-146 MHz
430-440 MHz |
RX:
140-174 MHz
TX: 144-146 MHz |
RX:
420-470 MHz
TX: 430-440 MHz |
| Channel Steps: |
5,
10, 12.5, 15, 20, 25, 50 kHz |
10,
12.5, 15, 20, 25, 50 kHz |
| Repeater Shift: |
±600
kHz (VHF)
±5, ±7.6, ±1.6
MHz (UHF) |
±600
kHz
(programmable in 100 kHz steps) |
±5,
±7.6, ±1.6 MHz |
| Emission Type: |
F2,
F3 |
| Supply Voltage: |
4
to 16 V DC |
Current Consumption:
Auto Pwr Off
Standby (Saver ON)
RX @ 9.6 V w/500mW AF
RX @ 9.6 V Squelched
TX (5W) |
250 µA
24 mA
200 mA
55 mA
1.5 A (VHF)
1.6 A (UHF) |
150 µA
13 mA
200 mA
50 mA
1.2 A |
150 µA
13 mA
200 mA
50 mA
1.5 A |
| Antenna Impedance: |
500
Ohms SMA Type |
| Case Size (WHD):
with FNB-40 |
2.2W
x 3.9H x 1.2D in. (57 x 99 x 30 mm) |
| Weight (approx.):
with FNB-40 |
355
grams |
11.5
oz. (325 grams) |
| Receiver |
|
|
|
| Circuit Type: |
Double-conversion
superheterodyne |
| IFs: |
45.1
MHz & 455 kHz |
17.70
MHz & 450 kHz |
58.05
MHz & 455 kHz |
| 12-dB SINAD Sensitivity: |
0.16µ
V (VHF) 0.18µ V (UHF) |
|
|
| Adjacent Channel Selectivity: |
>
65dB (VHF)
> 60dB (UHF) |
>
70dB |
>
65dB |
| Intermodulation |
>
65dB (VHF) / > 60dB (UHF) |
>
65dB |
| AF output @ 9.6 V, 10%
THD: |
0.5
W @ 8 Ohms |
| Transmitter |
|
|
|
| Power Output (@ 9.6 V): |
5.0,
2.8, 1, 0.1 W approx. |
5.0,
2.8, 1, 0.1 W approx. |
5.0,
2., 1, 0.1 W approx. |
| Frequency Stability |
better
than ±5 ppm |
better
than ±10 ppm |
better
than ±5 ppm |
| Modulation System: |
variable
reactance |
| Maximum Deviation: |
±5
kHz |
| FM Noise (@ 1kHz): |
better
than -40 dB |
| Spurious Emissions: |
>
60dB below carrier |
| AF Distortion (@ 1 kHz): |
<5%,
w/3.0 kHz deviation (USA version), 3.5 kHz deviation (other) |
| Microphone Type: |
2-kOhm
condenser |
|
| * 800 MHz cellular blocked,
non-restorable 824-849 MHz and 869-894 MHz reception not available. Frequency
ranges may vary in other countries.
Specifications may be subject to change
without notice or obligation. Specifications guaranteed only within amateur
bands. |
|
