The World of HF Design has just taken a giant step!
For more than half a decade the FT-1000 has been highly acclaimed by the world's top DX'ers. Now Yaesu has created a new HF masterpiece, building upon proven RF design techniques while introducing a new technology to the Amateur Radio market: Enhanced Digital Signal Processing. With its outstanding receiver section (featuring Collins Mechanical Filters), a clean and versatile transmitter, plus outstanding ergonomics, the FT-1000MP brings a new level of HF performance and design excellence to the world's most demanding amateurs.
| EDSP IF Demodulating & Processing |
| For SSB, CW and AM, the receiver 3rd IF output is applied to a special 10.24 kHz EDSP IF for demodulation and processing. The selectable digital bandpass filters provide optimised bandwidth and frequency response. |
| EDSP Noise Reduction |
| In addition to a highly-effective dual mode IF Noise Blanker, the FT-1000MP boasts an EDSP Noise Reduction system with 4 noise reduction protocols to help with changing noise characteristics. |
| EDSP Contour Selections |
| Unique DSP filter networks aid in QRM reduction. Select Low, Mid, or High-cut responses or band pass filters from the front panel. Use the different contour selections to enhance intelligence recovery under different interference situations. |
| EDSP RX Audio Equalisation |
| Three EDSP RX equalisation contours provide the operator with unmatched flexibility in reducing interference. |
| EDSP TX Modulation and Equalisation |
| Early-stage transmitted SSB audio is applied directly to EDSP circuitry for processing. EDSP fitter parameters can be matched to voice characteristics. The result is optimum audio tailoring and sound clarity! |
| EDSP TX Bandpass Filtering |
| The EDSP system of the FT-1000MP allows selection of one of four low frequency cut off parameters, so as to provide the best match to the operator's voice characteristics. |
| EDSP Automatic Multiple Notch Filter |
| Multiple notch capability within the AF passband is possible with EDSP. The digital notch circuitry continually analyses the AF passband and the correlation of the signals present, identifying and notching out heterodynes as they appear. |
| Collins Filters |
 Well
known since the early '505, Collins Mechanical Filters have dominated the
high end SSB, CW and, AM filter market. The built in Collins Mechanical
Filter operates at a center frequency of 455 kHz with a band width of 2.75
kHz (500 Hz Collins Mechanical Filter is optional. Collins Mechanical Filters
ensure superior IF performance, thanks to their fiat passband response,
excellent skirt selectivity and very low inter- modulation distortion.
The Collins Mechanical Filters used in the FT-1000MP are manufactured to
the same standards as those used by commercial airlines, ships at sea,
and the armed forces. These filters are ideal for voice, CW or digital
modes of operation. |

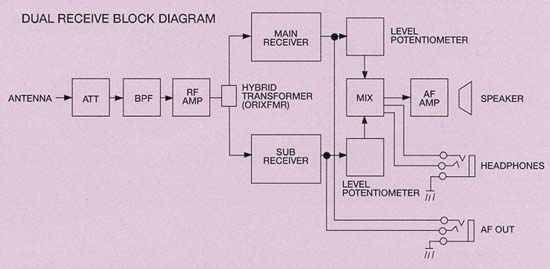

| Dual Receive |
| Both dual and monaural receive are possible with stereo headphones (YH-77STA). Headphone configurations include: * Mono-Both Main and Sub receiver audio combined equally in both ears. * Stereo 1-Main receiver audio in left ear; Sub receiver audio, right ear. * Stereo 2-Audio from each channel in each ear with Main receiver audio enhanced, left ear; Sub receiver audio, enhanced, right ear. Constant level stereo audio is also provided via the rear panel AF output jack. |
| AM Synchronous Tuning |
| Ideal for shortwave listening,
the synchronous detection system of the FT-1000MP provides less fading
and improved signal fidelity, compared to previous AM detectors.
Additionally, both 2.4 kHz and 6 kHz IF filter bandwidths may be used in the AM mode. Or simply use the Dual Receive capability of the FT-1000MP on opposite sidebands (LSB and USB) as another method to reduce interference. |
| User-friendly Memory System |
| The FT-1000MP contains 99 regular memories, 9 special "band limit" memories, and 5 QMB (Quick Memory Bank) memories. Each stores both RX and TX frequencies and modes, IF bandwidths, Clarifier status, and "split" status. All memories can be freely tuned or copied to another memory. The QMB feature allows storing a station quickly without overwriting one of the "Main" memories. |
| World-Class CW Performance |
| The FT-1000MP is unmatched in its array of features especially designed for CW operation at the highest levels of competition. Included are: *Full break in keying with programmable envelope delay. |
Built in electronic keyer with memory (external keypad required). |
|
CW Spot for easy zero beating on desired stations. |
|
CW Pitch control for BFO and side tone/spot frequency, adjustable from
300 to 1050Hz. |
|
CW Reverse selection, allowing the use of either USB or LSB BFO injection. |
|
2 key/paddle input jacks, one each on front and back panels. |
|
CW Tuning Indicator on the Main display. |
|
| CAT INTERFACE |
| The FT-1000MP is ready for direct connection to a computer's RS-232C serial port. The built in RS-232C computer interface of the FT-1000MP utilises a convenient DB 9 serial connector from the level converter. |
| An "All-in-one" Performance Package |
| The FT-1000MP includes a compact switching regulator power supply, specifically designed for low noise and a wide acceptance of input voltages (90-129V and 180-258V). 13.5 V DC can also be supplied from an external power supply DC-only model (FT-1000MP/DC) also available. For base, emergency or DXpedition use, the FT-1000MP is ready for action. |
| Cascaded RF/IF Filtering |
| In addition to 11 receiver
input bandpass filters, the FT 1000MP includes 3 automatically selected
high-pass filters which provide superb immunity from 2nd order IMD.
IF filter selections can be cascaded to combat QRM and tailor received audio. With 2 banks of independently selectable filters, one bank each for the 8.215 MHz 2nd IF and 455 kHz 3rd IF the FT-1000MP provides the solid IF filtering required in today's crowded bands. |
| Dual Noise Blankers |
| The Dual mode IF Noise Blanker provides outstanding rejection of narrow impulse type (NB1) noise or wider "woodpecker" type pulses (NB2). The blanking threshold is adjustable front the front panel. |
| Expanded Tuning Scale |
| The bargraph segment
of the meter above the Main frequency display serves as a dual mode enhanced
tuning scale, providing a visual indication of relative offset during Clarifier
("RIT") operation.
|
| Multi-Colour High-Resolution Display |
| Never before has such
a wealth of information been provided on a transceiver display.
In addition to independent frequency and S meter displays for each VFO the display area indicates power output, PA collector current, SWR ALC level, RF speech processor compression and PA input voltage, microphone gain level as well as Clarifier offset, memory information, and directional tuning scale to assist in precise tuning. |
| QUICK SPLIT |
| To expedite set-up of the FT-1000MP in a split DX pile up the "Quick Split" feature can be enabled from the menu system. Activated by the A B button, the Sub VFO is placed in the same operating mode as the Main VFO, separated by a convenient offset (e.g."up 5"). |
| Versatile Scanning |
| The FT-1000MP includes several scanning functions which are indispensable in keeping track of activity, These are: *Band Scanning, *Memory Scanning, *Sub band Limited Scanning. Certain memories may be "tagged" to be skipped during scanning, such as, for example, WW. The scanner will resume when the squelch closes or after a preset time delay. |
| 3 Antenna Connectors |
| The FT-1000MP provides 2 main antenna jacks ("A" and "B") with front panel selection of the best antenna for current conditions. Additionally, a separate RX only antenna such as a low-band loop may be connected to the RX ANT jack on the rear panel; the "A" or "B" antenna will then be used for TX and the low noise loop for RX. |
| Low-Noise Local Oscillator System |
| Providing the foundation for the remark ably clean RX and TX performance, the local oscillator system of the FT-1000MP is the key component of an overall commitment to signal purity. High transmitter C/N ratio, an exceptionally quiet receiver, and quick switching time are the results of this design philosophy, while the conservative ratings of the 2SC2879 PA transistors ensure many years of trouble free competition grade performance. |
| Digital Mode Operation |
| The FT-1000MP is ideal for digital modes! In addition to the dedicated input/output/PTT jacks for FSK and AFSK operation, the EDSP system includes 3 filters specially tailored for digital modes. Furthermore, the frequency display can be programmed to indicate either the center frequency of packet tone pairs or the actual carrier frequency. |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
