Abaixo Relaciono link´s para páginas relativo a Satélites de
Radioamador e Weather Fax e Recepção de TV digital sem assinatura
|
SATÉLITES |
Meu objetivo aqui, é apenas passar um pouco do conhecimento que tenho
a respeito de satélites.
Veja online, direto em seu navegador de internet, a localizsação exata dos satélites Noaa
Programas para rastreamento de Satélites
Winorbit Orbitron Nova For Windows instantrack
Programas para captar imagens meteorológicas em tempo real
JVComm32 JvFax Mixw SatServ WxSat WxToimg
Construa sua antena para para Satélites Meteorológicos
Foto antena Turnstyle(VHF-APT) >>>>>>>> Diagrama antena Turnstyle

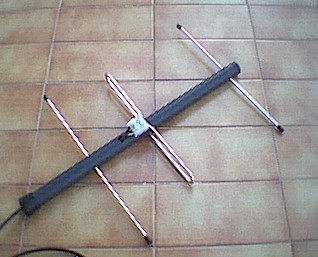

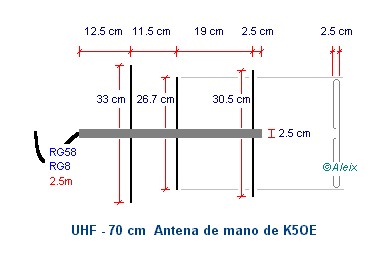

Foto antena Mano(UHF) >>>>>>>> Diagrama Antena Mano

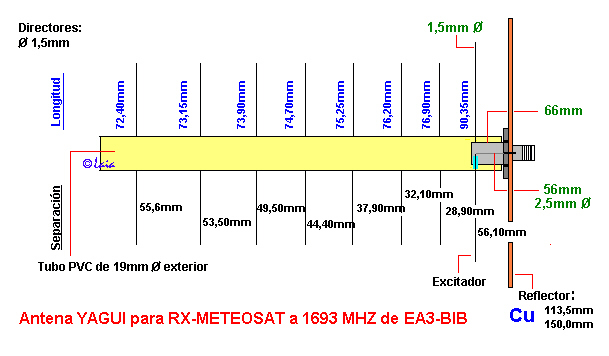

Foto Antena Yagui(1.7Ghz) >>>>>>>> Diagrama Antena Yagui
QUAIS OS EQUIPAMENTOS NECESSÁRIOS PARA OPERAÇÃO COM SATÉLITES
Isso
vai depender do tipo do satélite que você queira operar.
Existem satélites que operam em modo Analógico e Digital
e para cada caso, à um tipo de equipamento específico
para o uso.
Os satélites com transponders análogos estão listados abaixo. Agora vamos
entender alguns conceitos.
MODE
ou MODALIDADE: É uma convenção da
AMSAT, usada para
descrever a combinação da faixa de freqüência
do uplink – ( Frequência de subida) e do downlink – (
Frequência de descida) do transponder. Um satélite no MODE
(A) possue um uplink - ( Frequência
de subida) na banda de 2 metros VHF, e o downlink - ( Frequência
de descida) na banda de 10 metros HF. A maioria dos satélites analógicos possuem
transponders lineares.
|
É convencionado que para usar um transponder invertido, deve-se transmitir em SSB (LSB) e receber em SSB (USB) ;
para transponders não-inversor, use o a banda USB para o uplink e o downlink.
RASTREANDO OS SATÉLITES PARA FAZER UM CONTATO
Para
calcular a órbita, e saber exatamente o azimute e
elevação dos satélites, você
precisará instalar em seu computador, um software
específico para satélites de radioamador. Veja no
início desta
página, mas não esqueça também de fazer o
download dos Kepler elements
para os satélites.
The
satellite is not available for general uplink transmissions.
Downlink
437.095 MHz 1200 baud AX-25 AFSK
Uplink 145.945 MHz UI digipeater
Status: Non-operational
28.1400 | 28.1400 | AMSAT-OSCAR 51 | Digital Uplink | PSK | Operational |
29.3525 | 29.3525 | Radio-Sputnik 15 | Beacon Downlink | CW | Semi-Operational |
29.3540 | 29.3540 - 29.3940 | Radio-Sputnik 15 | Linear Transponder Downlink | SSB/CW | Semi-Operational |
29.3987 | 29.3987 | Radio-Sputnik 15 | Beacon Downlink | CW | Semi-Operational |
29.4000 | 29.4000 - 29.5000 | AMSAT-OSCAR 7 | Linear Transponder Downlink | SSB/CW | Semi-Operational |
29.4000 | PCSat2 | Digital Uplink | PSK | Semi-Operational | |
29.5020 | 29.5020 | AMSAT-OSCAR 7 | TLM Beacon Downlink | CW | Semi-Operational |
144.4900 | 144.4900 | ARISS | Crew Contact Uplink | FM | Semi-Operational |
144.4900 | ARISS | Imaging Downlink | FM | Semi-Operational | |
145.2000 | 145.2000 | ARISS | Crew Contact Uplink | FM | Semi-Operational |
145.8000 | 145.8000 | ARISS | Packet Downlink | AFSK | Semi-Operational |
145.8000 | ARISS | FM Voice Repeater Downlink | FM | Semi-Operational | |
145.8000 | ARISS | Crew Contact Downlink | FM | Semi-Operational | |
145.8000 | ARISS | Crew Contact Downlink | FM | Semi-Operational | |
145.8250 | 145.8250 | PCSat2 | APRS Uplink | AFSK | Semi-Operational |
145.8250 | ARISS | APRS Uplink | FM | Operational | |
145.8260 | 145.8260 | UoSat OSCAR 11 | TLM Beacon Downlink | FM | Semi-Operational |
145.8270 | 145.8270 | Navy-OSCAR 44 | APRS Uplink | AFSK | Semi-Operational |
145.8500 | 145.8500 - 145.9500 | AMSAT-OSCAR 7 | Linear Transponder Uplink | SSB/CW | Semi-Operational |
145.8500 | Saudi-OSCAR 50 | FM Voice Repeater Uplink | FM | Operational | |
145.8500 | PCSat2 | APRS Uplink | AFSK | Semi-Operational | |
145.8500 | Malaysian-OSCAR 46 | Packet Uplink | FSK | Unknown | |
145.8500 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational | |
145.8500 - 145.8800 | KiwiSat | Linear Transponder Downlink | SSB/CW | Operational | |
145.8580 | 145.8580 - 145.8980 | Radio-Sputnik 15 | Linear Transponder Uplink | SSB/CW | Semi-Operational |
145.8600 | 145.8600 | AMSAT-OSCAR 51 | PacSat BBS Uplink | AFSK | Operational |
145.8600 | VUSat OSCAR-52 | Beacon Uplink | CW | Operational | |
145.8650 | 145.8650 | KiwiSat | Digital Downlink | AFSK | Operational |
145.8650 | KiwiSat | Digital Downlink | AFSK | Operational | |
145.8650 | KiwiSat | FM Voice Repeater Downlink | FM | Operational | |
145.8650 | KiwiSat | Digital Downlink | AFSK | Operational | |
145.8650 | KiwiSat | Digital Downlink | AFSK | Operational | |
145.8650 | KiwiSat | Beacon Downlink | AFSK | Operational | |
145.8700 - 145.9300 | VUSat OSCAR-52 | Linear Transponder Downlink | SSB/CW | Operational | |
145.8700 | Delfi OSCAR-64 | Telemetry Downlink | FM | Operational | |
145.8700 | Delfi OSCAR-64 | Beacon Downlink | SSB/CW | Operational | |
145.8800 | 145.8800 | AMSAT-OSCAR 51 | FM Voice Repeater Uplink | FM | Operational |
145.8800 - 145.9200 | Delfi OSCAR-64 | Linear Transponder Downlink | SSB/CW | Operational | |
145.8850 | 145.8850 | KiwiSat | Beacon Downlink | AFSK | Operational |
145.8900 | 145.8900 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational |
145.9000 | 145.9000 - 146.0000 | Fuji-OSCAR 29 | Linear Transponder Uplink | SSB/CW | Operational |
145.9200 | 145.9200 | AMSAT-OSCAR 51 | FM Voice Repeater Uplink | FM | Operational |
145.9200 | AMSAT-OSCAR 51 | FM Voice Repeater Uplink | FM | Operational | |
145.9200 | AMSAT OSCAR 16 | FM Voice Repeater Uplink | FM | Semi-Operational | |
145.9250 | 145.9250 | Malaysian-OSCAR 46 | Packet Uplink | FSK | Unknown |
145.9250 - 145.8750 | VUSat OSCAR-52 | Linear Transponder Downlink | SSB/CW | Operational | |
145.9300 | 145.9300 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational |
145.9300 | Delfi OSCAR-64 | Telemetry Downlink | FM | Operational | |
145.9300 | Gurwin OSCAR-32 | APRS Uplink | FM | Operational | |
145.9360 | 145.9360 | VUSat OSCAR-52 | Beacon Uplink | Carrier | Unknown |
145.9750 | 145.9750 - 145.9250 | AMSAT-OSCAR 7 | Linear Transponder Downlink | SSB/CW | Semi-Operational |
145.9775 | 145.9775 | AMSAT-OSCAR 7 | TLM Beacon Downlink | CW | Semi-Operational |
145.9900 | 145.9900 | ARISS | Packet Uplink | AFSK | Semi-Operational |
429.9500 | 429.9500 | POSAT-OSCAR 28 | TLM Beacon Downlink | FM | Operational |
432.1250 | 432.1250 - 432.1750 | AMSAT-OSCAR 7 | Linear Transponder Uplink | SSB/CW | Semi-Operational |
435.1000 | 435.1000 | AMSAT-OSCAR 7 | Beacon Downlink | FM | Semi-Operational |
435.1500 | 435.1500 | AMSAT-OSCAR 51 | FM Voice Repeater Downlink | FM | Operational |
435.1500 | AMSAT-OSCAR 51 | PacSat BBS Downlink | AFSK | Operational | |
435.1500 | AMSAT-OSCAR 51 | PacSat BBS Downlink | AFSK | Operational | |
435.2150 | 435.2150 | RS-30 | TLM Beacon Uplink | FM | Operational |
435.2200 | 435.2200 - 435.2800 | VUSat OSCAR-52 | Linear Transponder Uplink | SSB/CW | Operational |
435.2250 | 435.2250 | Gurwin OSCAR-32 | PacSat BBS Downlink | FSK | Operational |
435.2250 | Gurwin OSCAR-32 | PacSat BBS Downlink | FSK | Operational | |
435.2250 - 435.2750 | VUSat OSCAR-52 | Linear Transponder Uplink | SSB/CW | Operational | |
435.2250 | Gurwin OSCAR-32 | APRS Downlink | FM | Operational | |
435.2450 | KiwiSat | Digital Uplink | AFSK | Operational | |
435.2450 | KiwiSat | Digital Uplink | AFSK | Operational | |
435.2450 | KiwiSat | FM Voice Repeater Uplink | FM | Operational | |
435.2450 | CAPE-1 | Beacon Downlink | FM | Semi-Operational | |
435.2500 | 435.2500 | Navy-OSCAR 44 | APRS Uplink | AFSK | Non-Operational |
435.2600 | 435.2600 - 435.2300 | KiwiSat | Linear Transponder Uplink | SSB/CW | Operational |
435.2750 | 435.2750 | PCSat2 | Digital Downlink | PSK | Semi-Operational |
435.2750 | PCSat2 | APRS Downlink | AFSK | Semi-Operational | |
435.2750 | PCSat2 | Telemetry Downlink | AFSK | Semi-Operational | |
435.3000 | 435.3000 | AMSAT-OSCAR 51 | FM Voice Repeater Downlink | FM | Operational |
435.3000 | AMSAT-OSCAR 51 | FM Voice Repeater Downlink | FM | Operational | |
435.3000 | AMSAT-OSCAR 51 | Digital Downlink | PSK | Operational | |
435.3150 | 435.3150 | RS-30 | TLM Beacon Uplink | FM | Operational |
435.3520 | 435.3520 | RS-22 | TLM Beacon Downlink | FM | Operational |
435.5300 | 435.5300 - 435.5700 | Delfi OSCAR-64 | Linear Transponder Uplink | SSB/CW | Operational |
435.7950 | 435.7950 | Fuji-OSCAR 29 | Beacon Downlink | FM | Operational |
435.8000 | 435.8000 - 435.9000 | Fuji-OSCAR 29 | Linear Transponder Downlink | SSB/CW | Operational |
435.9100 | Fuji-OSCAR 29 | Digitalker Downlink | FM | Semi-Operational | |
435.9500 | 435.9500 - 435.8500 | ESEO | Linear Transponder Uplink | SSB/CW | Unknown |
436.7950 | 436.7950 | Saudi-OSCAR 50 | FM Voice Repeater Downlink | FM | Operational |
436.8375 | 436.8375 | CubeSat-OSCAR 55 | TLM Beacon Downlink | FM | Operational |
436.8475 | 436.8475 | CubeSat-OSCAR 57 | Beacon Downlink | FM | Operational |
436.8700 | SACRED | Linear Transponder Downlink | FM | Operational | |
437.0260 | AMSAT OSCAR 16 | FM Voice Repeater Downlink | FM | Semi-Operational | |
437.0510 | 437.0510 | AMSAT OSCAR 16 | PacSat BBS Downlink | MFSK | Non-Operational |
437.0750 | 437.0750 | Weber-OSCAR 18 | Imaging Downlink | FM | Non-Operational |
437.0750 | GeneSat-1 | TLM Beacon Downlink | FM | Operational | |
437.1000 | 437.1000 | Navy-OSCAR 45 | Packet Downlink | FSK | Non-Operational |
437.1000 | OPAL-Oscar 38 | TLM Beacon Downlink | FM | Non-Operational | |
437.1020 | 437.1020 | Weber-OSCAR 18 | Imaging Downlink | FM | Non-Operational |
437.1250 | 437.1250 | LUSAT-OSCAR 19 | TLM Beacon Downlink | FM | Operational |
437.1500 | 437.1500 | LUSAT-OSCAR 19 | PacSat BBS Downlink | FSK | Non-Operational |
437.2500 | 437.2500 | eXpress-OSCAR 53 | PacSat BBS Uplink | FSK | Non-Operational |
437.2500 | eXpress-OSCAR 53 | FM Voice Repeater Uplink | FM | Non-Operational | |
437.2750 | 437.2750 | HITSat-OSCAR 59 | TLM Beacon Downlink | FM | Non-Operational |
437.2750 | Cubesat Oscar-65 | TLM Beacon Downlink | FM | Operational | |
437.2750 | COMPASS-1 | TLM Beacon Downlink | FM | Semi-Operational | |
437.3250 | 437.3250 | Malaysian-OSCAR 46 | Packet Downlink | FSK | Unknown |
437.3250 | Malaysian-OSCAR 46 | Packet Downlink | FSK | Unknown | |
437.3450 | 437.3450 | CubeSat-OSCAR 58 | Telemetry Downlink | FM | Operational |
437.3850 | 437.3850 | CubeSat-OSCAR 56 | TLM Beacon Downlink | CW | Operational |
437.4000 | CubeSat-OSCAR 55 | Telemetry Downlink | FM | Operational | |
437.4050 | COMPASS-1 | Telemetry Downlink | FM | Unknown | |
437.4250 | KiwiSat | Beacon Downlink | AFSK | Operational | |
437.4650 | 437.4650 | CubeSat-OSCAR 58 | Beacon Downlink | FM | Operational |
437.4750 | Cubesat Oscar-65 | TLM Beacon Downlink | AX.25 | Operational | |
437.4750 | Cubesat Oscar-65 | Digital Downlink | GMSK | Unknown | |
437.4850 | Cubesat Oscar - 66 | Digitalker Downlink | FM | Operational | |
437.4850 | Cubesat Oscar - 66 | TLM Beacon Downlink | FM | Operational | |
437.4850 | Cubesat Oscar - 66 | Other Downlink | FM | Operational | |
437.4850 | Cubesat Oscar - 66 | TLM Beacon Downlink | FM | Operational | |
437.4900 | 437.4900 | CubeSat-OSCAR 57 | Telemetry Downlink | FM | Operational |
437.5050 | 437.5050 | CubeSat-OSCAR 56 | Packet Downlink | GMSK | Operational |
437.8000 | 437.8000 | ARISS | FM Voice Repeater Uplink | FM | Semi-Operational |
437.9100 | 437.9100 | SEDSat-OSCAR 33 | Packet Downlink | FSK | Semi-Operational |
1266.6870 | 1266.6870 | SEDSat-OSCAR 33 | Packet Uplink | FSK | Semi-Operational |
1267.6000 | 1267.6000 | Cubesat Oscar-65 | Digital Uplink | GMSK | Unknown |
1268.5000 | 1268.5000 | CubeSat-OSCAR 56 | Packet Uplink | GMSK | Operational |
1268.7000 | 1268.7000 | AMSAT-OSCAR 51 | FM Voice Repeater Uplink | FM | Operational |
1268.7000 | AMSAT-OSCAR 51 | FM Voice Repeater Uplink | FM | Operational | |
1268.7000 | AMSAT-OSCAR 51 | PacSat BBS Uplink | AFSK | Operational | |
1268.7000 | AMSAT-OSCAR 51 | PacSat BBS Uplink | AFSK | Operational | |
1268.8650 | 1268.8650 | KiwiSat | Digital Uplink | AFSK | Operational |
1268.8650 | KiwiSat | Digital Uplink | AFSK | Operational | |
1269.7000 | 1269.7000 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational |
1269.8000 | 1269.8000 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational |
1269.9000 | 1269.9000 | Gurwin OSCAR-32 | PacSat BBS Uplink | FSK | Operational |
2400.0500 | 2400.0500 - 2400.1500 | ESEO | Linear Transponder Downlink | SSB/CW | Unknown |
2400.1000 | 2400.1000 | ESEO | TLM Beacon Uplink | PSK | Unknown |
2400.1500 | 2400.1500 | ESEO | TLM Beacon Uplink | PSK | Unknown |
2401.2000 | 2401.2000 | AMSAT-OSCAR 51 | FM Voice Repeater Downlink | FM | Operational |
2401.2000 | AMSAT-OSCAR 51 | FM Voice Repeater Downlink | FM | Operational | |
2401.2000 | AMSAT-OSCAR 51 | PacSat BBS Downlink | AFSK | Operational | |
24048.0250 | 24048.0250 - 24048.0750 | AMSAT-OSCAR 40 | Analog Passband Downlink | SSB/CW | Non-Operational |
As faixas de
frequências destinadas as comunicações via satélites são:
*
Banda L - entre 0,5 GHz 1,5 GHz. ou 950-1450 MHz,
- Frequência de
conversão do LNB
usada nas instalações de TVRO.
*
Banda C - entre 4 GHz e 8 GHz.
- Os satélites usam 3,7 a 4,2 GHz, para o
enlace de
descida (DownLink) e 5,925 a 6,425 GHz , para o enlace de subida (Up-Link).
*
Banda Ku - entre 10,9 GHz e 17 GHz. Usada para os
serviços DTH.
* Banda Ka - entre 18 GHz e 31 GHz. Também utilizada por alguns satélites nos serviços de DTH.
Faixa de Frequências para Satélites Meteorológicos APT (Automatic Picture Transm.)
Satellite ID Catalog # Frequency MHz Orbit Type
NOAA-15 25338 137.500 FM LEO, Sun-Sync.
NOAA-12 21263 137.500 FM LEO, Sun-Sync.
NOAA-14 23455 137.620 FM LEO, Sun-Sync
METEOR 3-5 21655 137.850 FM LEO, Circular
OKEAN-4 23317 137.400 FM LEO, Circular
OKEAN-0 25860 137.400 FM LEO, Circular
RESURS 01-N4 25934 137.850 FM LEO, Circular
SICH-1 23657 137.400 FM LEO, Circular
FOTO ATLÂNTICO - HRPT
Foto recebida do Satélite NOAA14
L I N K´S
AMSAT = Visite a página oficial de Satélites Amadores na internet.
TELESATÉLITE = Excelente página com informações de satélites de TV
PY2FFZ EA1URO PY3VHQ ESTACION TERRENA
http://www.aintel.bi.ehu.es/~amsat-ea/meteo/3/3.htm
RECEPÇÃO DE TV DIGITAL VIA SATÉLITE SEM ASSINATURA |
Esta parte ainda está em construção, aguarde boas novidades
Brasilsat Digital = Excelente página sobre recepção de canais de TV digital via satélite sem assinatura.
Lingsat = Página nos Estados Unidos nas mesmas características acima (canais do mundo inteiro).
Cinturão de Clark = Clique ao lado e baixe uma foto com todos os satélites geo na órbita do planeta.
Fotos de Antenas = Página com excelentes fotos de antenas parabólicas - vários modelos e tamanhos.

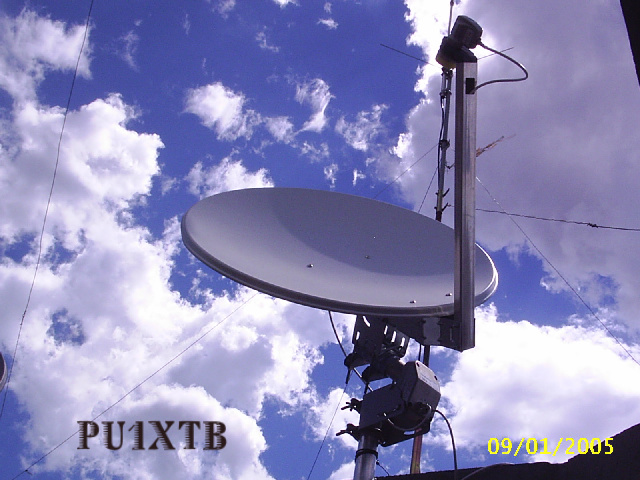

Foto de minha antena banda KU 90Cm com motor Manhattan HH-120
INICIO | PROGRAMAS | RADIOAMADOR | FREQUÊNCIAS | MODOS DIGITAIS | AVIAÇÃO | MAI´L |
INFORMÁTICA | HAM RÁDIO ONLINE | RADIOS E TV´S AO VIVO |
PÁGINA OFICIAL DE PU1XTB RUBEN |
