PROSTEEL USERS GROUP AUSTRALIA

10/02/04





bulletProsteel

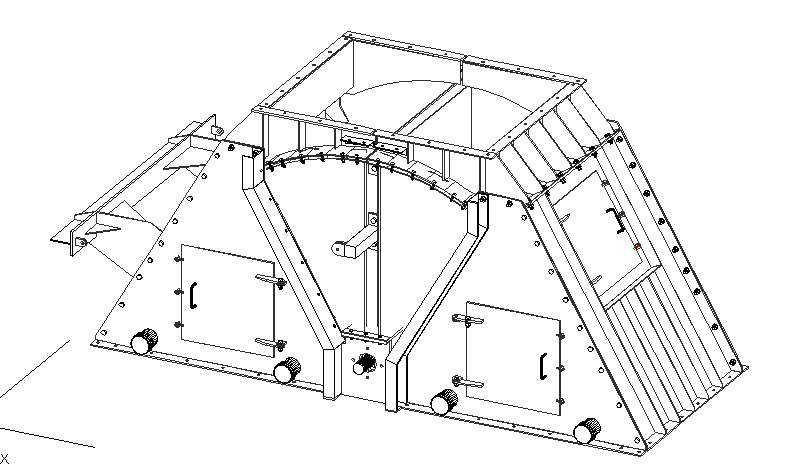

bulletProsteel is 3D steel parametric modelling software, add connections to the model then output workshop detail drawings. If you have further queries go to the prosteelers forum

Click to subscribe to ProsteelOZ
Download a Basic Prosteel tutorial to get you started HERE



bulletArchitectural desktop
bulletAutodesk Architectural Desktop, this product provides features for architectural design in object orientated 3D models.



bulletAutoCAD related products
bulletMost people know what AutoCAD and vertical platforms of it are about.
bulletThe following LISP routine facilitate general drafting in autocad and related products.
  1. Text Align : Ever wanted to place DTEXT that is aligned to a line instead of having to specify the text rotation, well use this lisp routine to do just that.
  2. Viewcut : Cut those viewports with ease, Simply window the area want in model space, specify the zoom scale (always 1:xx) then place the viewport in Pspace.
  3. AecMem : For the ADT user, here is a routine to assist in creating custom structural members from your polyline shape.
  4. PipeMem : For the ADT user, here is a routine to assist in creating custom structural hollow members from your polyline shapes.
  5. Steel Sections : For the structural drafty, replace your steel section block library with this steel shape section generator (Warning : Australian Standards)
  6. Caps Locker : Do you tire of forgetting to switch on caps lock when adding DTEXT, fear no more as this resolves the issue once and for all
  7. Terrain : Creat 3D terrain by importing points data from a text file, you'll be able to creat 3D contour, solid, 3d surface of the terrain.
  8. Save Manager : Saves your drawing every 10 minutes religiously as your working, it's based on command usage such line, move Ect.
  9. Clearview : Hide entities instead of have to fiddle with layers, has faciltites to UNHIDE specific objects or add to current hidden entities
