Making the existing jazz bass to be a deluxe more like (Roscoe Beck pickups) bass. I have decided to install extra pickups and to make bass hambuckers, or just a combination of coils to be used.I used the following diagram for one pickup.Here it is, how it goes:

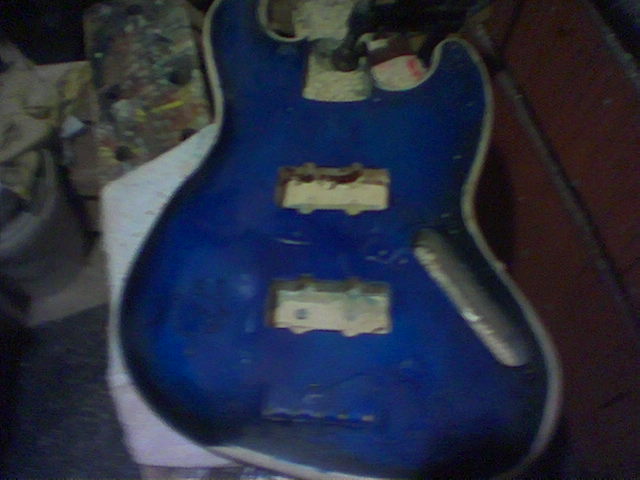

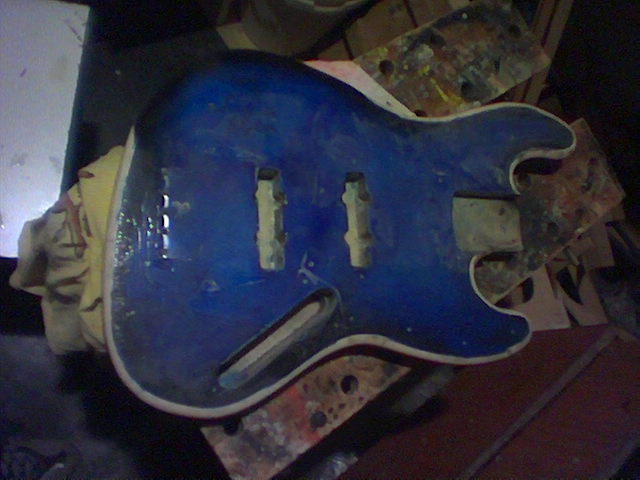

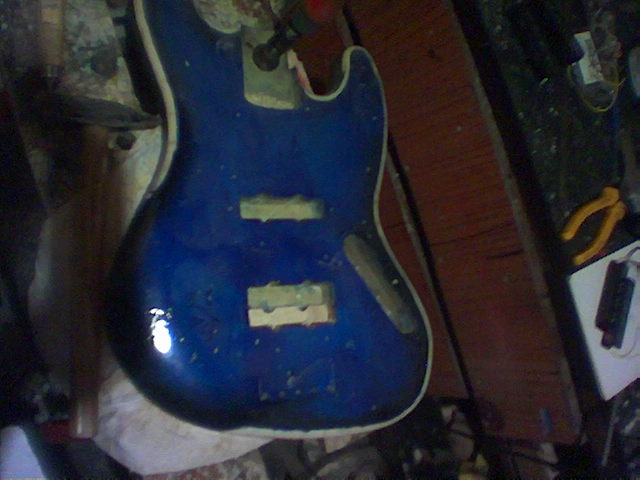

picture 1: first i took all the hardware down, and i took off the edges as you can see that there weren't any on the previous sunburst pictures. When i did that i decided to take the whole coat of laquier down and to brush it to put new laquier on now with some new experiences and with an airpistol.

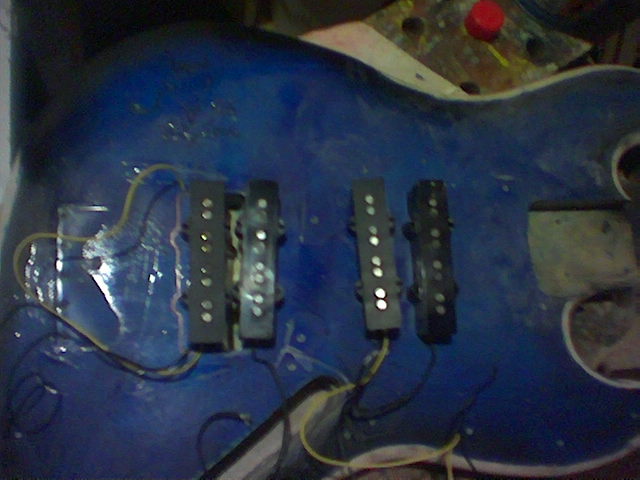

picture 2: I compared the coils, how i would combine them, because i have one pair of fender stock pickups and one pair of vintage jazz bass coils.So i decided to leave the vintage pickups as they were, combining them with stock pickups.I draw with the pencil the shape as you can see on the left.
picture 3: you can see the holes i drilled with a drilling machine for the coil-sides, and here you can see from the covers and the bridge, that the coat of the laquier wasn't applied quite professionally.

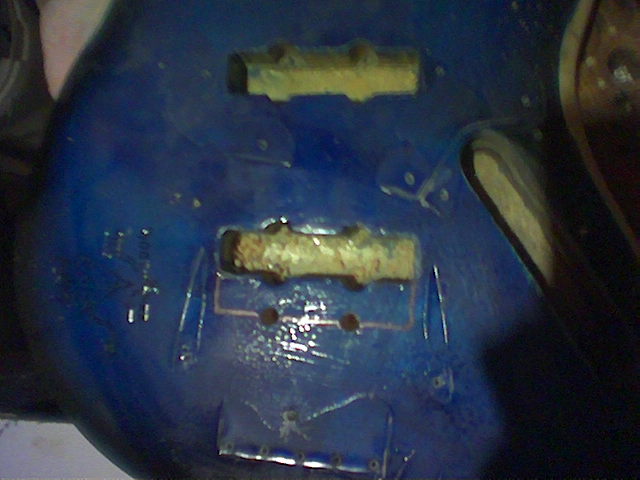

picture 4: here it fell, the first hole for the hambucker
picture 5: and the second hole

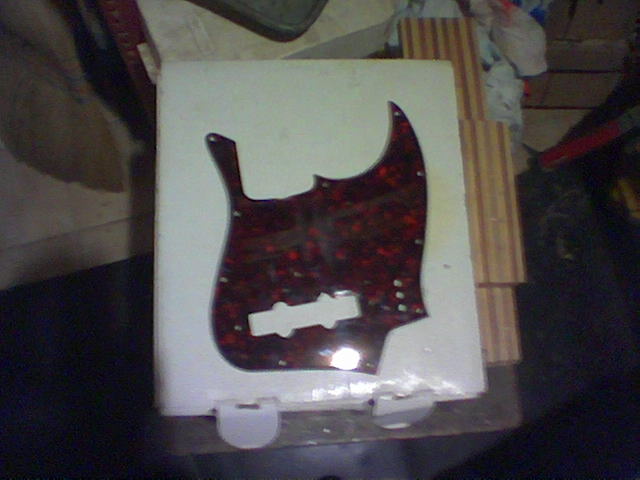

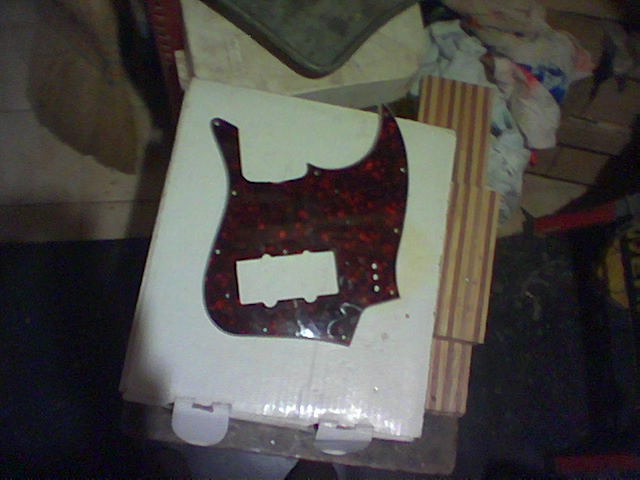

Picture 6: pickguard, you can see the three holes for the switches

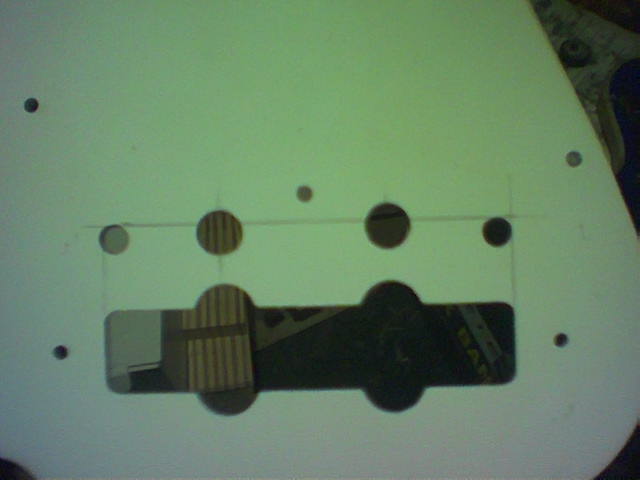

picture 7: Measuring the hole for the extra pickup

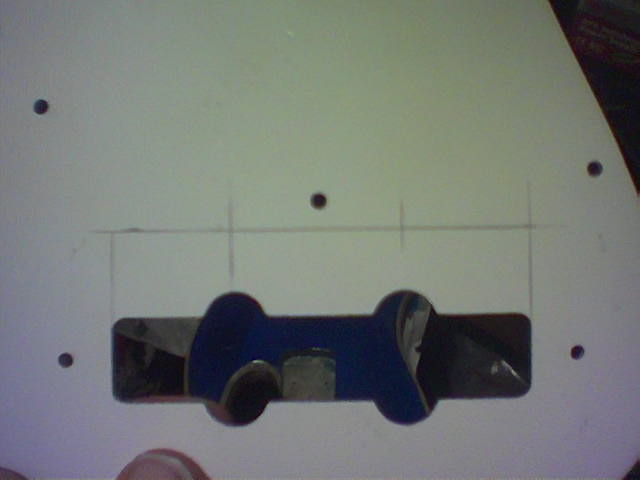

Picture 8 : Drilling holes
Picture 9 : Finished the pickguard

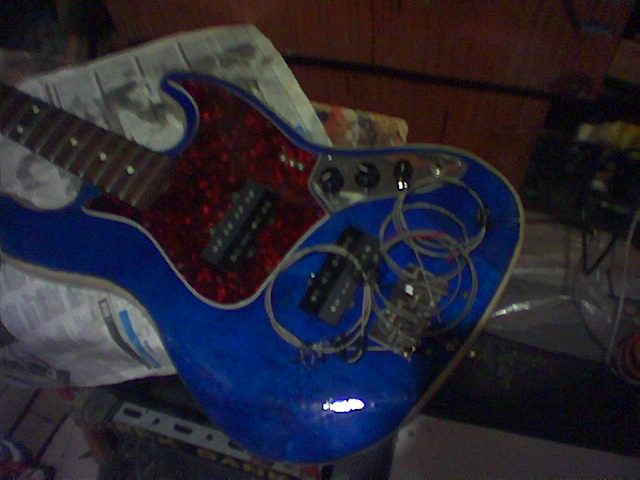

Picture 10: almost finished, only strings has to be applyed and covers have to be put on, else finished
